STX790A High current, high performance, low voltage PNP transistor
The devices are manufactured in low voltage PNP planar technology by using a "Base Island" layout.
The resulting transistor shows exceptional high gain performance coupled with very low saturation voltage. The STX790AG-AP is supplied using halogen-free molding compound
技术特性
- Very low collector to emitter saturation voltage
- DC current gain, hFE > 100
- 3 A continuous collector current
- 40 V breakdown voltage V(BR)CER
应用领域
- Power management in portable equipment
- Voltage regulation in bias supply circuits
- Switching regulator in battery charger
applications
- Heavy load driver
|

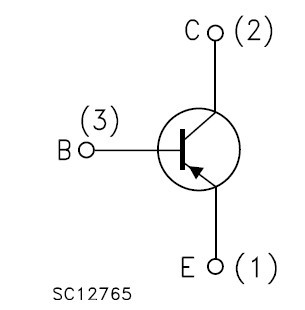

内部原理图
 |
STX790A 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STX790AG-AP |
NRND |
|
1000 |
TO-92 |
Tape And Reel |
|
STX790AG-AP |
| STX790A-AP |
NRND |
|
1000 |
TO-92 |
Tape And Reel |
|
STX790A-AP |
DATASHEET
| 描述 |
版本 |
大小 |
| STX790A :DS3088: Medium current, high performance, low voltage PNP transistor |
4 |
175KB |
