TEA6425 Audio switch matrix for TV - Bus controlled
This device is intended for switching between video and chroma signals such as CVBS, SVHS, baseband CVBS, MAC. Each input clamp mode, each output gain, all switching are controlled through the I²C bus. The 8 outputs can be set separately in high impedance state, to enable parallel DC connection of several devices (up to 4).
技术特性
- 6 Video Inputs - 8 Video Outputs
- 2 Internal Selectable YC Adders
- 15MHz Bandwidth @ -3dB
- Selectable 0.5/6.5dB Gain FOR EACH Output
- High Impedance Switch for each Output (3-state operation)
- Programmable Clamp Mode on each Input (sync bottom or average value)
- -60dB Crosstalk @ 5MHz
- 4 Sub-address Capability
- I²C Bus Control
|

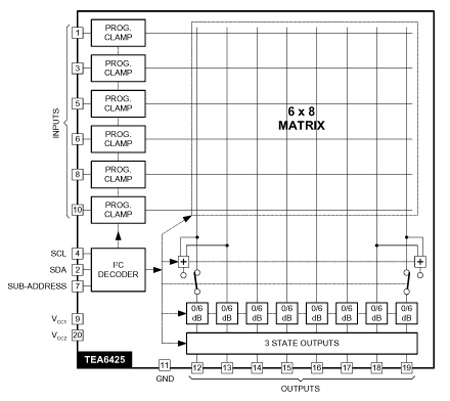

功能框图
 |
TEA6425 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| TEA6425D |
NRND |
|
1000 |
SO-20 |
Tube |
|
|
| TEA6425DT |
NRND |
|
1000 |
SO-20 |
Tape And Reel |
|
|
DATASHEET
| 描述 |
版本 |
大小 |
| TEA6425 :DS3479: Video cellular matrix |
1 |
164KB |
