TIP42A COMPLEMENTARY SILICON POWER TRANSISTORS

The TIP41A is a silicon base island technology NPN power transistor Jedec TO-220 plastic package with improved performances than the industry standard TIP41A that make this device suitable for audio, power linear and switching applications. The complementary PNP type is TIP42A

技术特性
  • COMPLEMENTARY PNP-NPN DEVICES
  • NEW ENHANCED SERIES
  • HIGH SWITCHING SPEED
  • hFE IMPROVED LINEARITY
应用领域
  • GENERAL PURPOSE CIRCUITS
  • AUDIO AMPLIFIER
  • POWER LINEAR AND SWITCHING

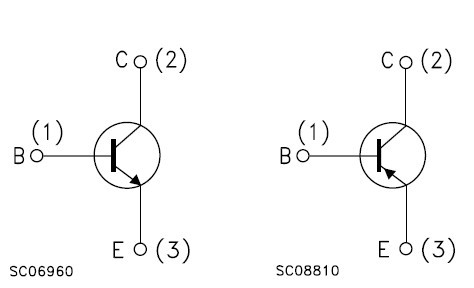

内部原理图
TIP42A 功能框图
TIP42A 订购信息
订购型号 产品状态 美金价格 数量 封装 包装形式 温度范围 材料声明
TIP42A Active   1000 TO-220AB Tube   TIP42A
DATASHEET
描述 版本 大小
TIP42A :DS0865: Complementary silicon power transistor 5 203KB
