TS881 Rail-to-rail 1.1V nanopower single comparator

The TS881 device is a single comparator featuring ultra low supply current (210 nA typical with output high, VCC= 1.2 V, no load) with rail-to-rail input and output capability. The performance of this comparator allows it to be used in a wide range of portable applications. The TS881 device minimizes battery supply leakage and therefore enhances battery lifetime.

Operating from 1.1 to 5.5 V supply voltage, this comparator can be used over a wide temperature range (-40 to +125 °C) keeping the current consumption at an ultra low level.

The TS881 device is available in the SC70-5 package, allowing great space saving on the PCB

技术特性

Ultra low current consumption: 210 nA typ.
Propagation delay: 2 μs typ.
Rail-to-rail inputs
Push-pull output
Supply operation from 1.1 V to 5.5 V
Wide temperature range: -40 to +125 °C
ESD tolerance: 4 kV HBM / 300 V MM
SMD package

应用领域

Portable systems
Signal conditioning
Medical

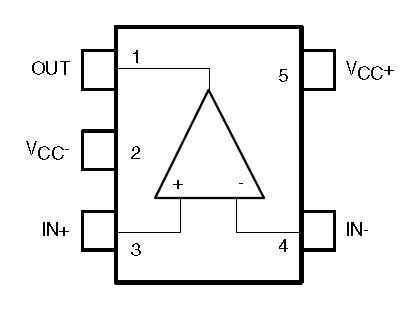

内部原理图

TS881 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
TS881ICT	Active		1000	SOT323-5L	Tape And Reel	-40 °C-125 °C	TS881ICT

DATASHEET

描述	版本	大小
TS881 :DS9113: Rail-to-rail 1.1 V nanopower comparator	1	811KB
