TSX564 Micropower, wide bandwidth 16V CMOS op-amps
The TSX56x series of operational amplifiers benefits from STMicroelectronics®16 V CMOS technology to offer state-of-the-art accuracy and performance in the smallest industrial packages.
The TSX561 device is the single version, the TSX562 device the dual version and the TSX564 device the quad version, with pinouts compatible with industry standards. The TSX56x series offers an outstanding speed/power consumption ratio, 900 kHz gain bandwidth product while consuming only 250 μA at 16 V.
The devices are housed in the smallest industrial packages. These features make the TSX56x family ideal for sensor interfaces and industrial signal conditioning. The wide temperature range and high ESD tolerance ease use in harsh automotive applications
技术特性
- Low power consumption: 235 μA typ. at 5 V
- Supply voltage: 3 V to 16 V
- Gain bandwidth product: 900 kHz typ.
- Low offset voltage
- Standard version: 1 mV max.
- Low input bias current: 1 pA typ.
- High tolerance to ESD: 4 kV
- Wide temperature range: -40 to +125 C
- Automotive qualification
- Tiny packages available

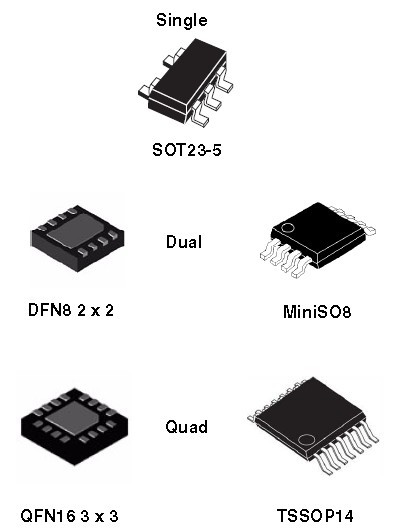

- DFN8 2 mm x 2 mm, MiniSO8
- QFN16 3 mm x 3 mm, TSSOP14
应用领域
- Industrial signal conditioning
- Automotive signal conditioning
- Active filtering
- Medical instrumentation
- High impedance sensors
|
管脚定义图
 |
TSX564 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| TSX564IYPT |
Target |
|
1000 |
TSSOP-14 |
Tape And Reel |
-40 °C-125 °C |
TSX564IYPT |
| TSX564IPT |
Active |
|
1000 |
TSSOP-14 |
Tape And Reel |
-40 °C-125 °C |
TSX564IPT |
| TSX564IQ4T |
Preview |
|
1000 |
UFQFPN 3X3X0.5 16L COL |
Tape And Reel |
-40 °C-125 °C |
TSX564IQ4T |
DATASHEET
| 描述 |
版本 |
大小 |
| TSX564 :DS9079: Micropower, wide bandwidth (900 kHz) 16 V CMOS op amps |
2 |
785KB |
