TSZ121 High accuracy (20uV) Zero-drift Micropower Op Amp

The TSZ121 device is the first member of the TSZ12x series of high precision operational amplifiers featuring very low offset voltage with virtually zero drift.

The TSZ12x series offers rail-to-rail input and output, excellent speed/power consumption ratio,

These features make the TSZ12x family ideal for sensor interfaces, battery-powered applications and portable applications.

技术特性
  • Very low offset voltage:
  • Ultra low offset voltage drift: 60 nV/°C max.
  • Rail-to-rail input and output
  • Low supply voltage: 1.8 - 5.5 V
  • Low power consumption: 42 μA max. at 5 V
  • Gain bandwidth product:
  • High tolerance to ESD: 4 kV HBM
  • Extended temperature range: -40 to +125 °C

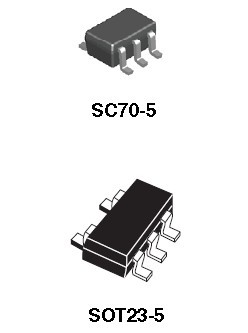

  • Micro-packages: SC70-5 and SOT23-5
应用领域
  • Battery-powered applications
  • Portable devices
  • Signal conditioning
  • Medical instrumentation
管脚定义图
TSZ121 功能框图
TSZ121 订购信息
订购型号 产品状态 美金价格 数量 封装 包装形式 温度范围 材料声明
TSZ121ILT Target   1000 SOT23-5L Tape And Reel -40 °C-125 °C TSZ121ILT
TSZ121ICT Active   1000 SOT323-5L Tape And Reel -40 °C-125 °C TSZ121ICT
DATASHEET
描述 版本 大小
TSZ121 :DS9216: High accuracy (20 μV) zero drift micropower 5 V op amp 1 593KB
