VN750 High Side Driver

The VN750 is a monolithic device designed in STMicroelectronic's VIPower M0-3 Technology.

The VN750 is intended for driving any type of load with one side connected to ground. The active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table).

Active current limitation combined with thermal shutdown and automatic restart protects the device against overload. The device detects the open load condition in both the on and off state. In the off state the device detects if the output is shorted to VCC. The device automatically turns off in the case where the ground pin becomes disconnected.

技术特性

CMOS compatible input
On state open load detection
Off state open load detection
Shorted load protection
Undervoltage and overvoltage shutdown
Protection against loss of ground
Very low stand-by current
Reverse battery protection

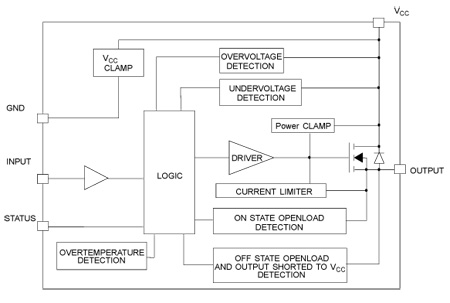

功能框图

VN750 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
VN750	Active	1.135	1000	PENTAWATT 5	Tube		VN750

DATASHEET

描述	版本	大小
DS1858 : High side driver	3	774KB
