VND600SP DOUBLE CHANNEL HIGH SIDE SOLID STATE RELAY
The VND600SP is a monolithic device made using STMicroelectronics VIPower M0-3 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). This device has two channels in high side configuration; each channel has an analog sense output on which the sensing current is proportional (according to a known ratio) to the corresponding load current. Built-in thermal shut-down and outputs current limitation protect the chip from over temperature and short circuit. Device turns off in case of ground pin disconnection.
技术特性
- DC short circuit current: 25A
- CMOS compatible inputs
- Proportional load current sense
- Under-voltage and over-voltage shutdown
- Over-voltage clamp
- Thermal shutdown
- Current limitation
- Very low standby power consumption
- Protection against loss of ground and loss of VCC
- Reverse battery protection
|

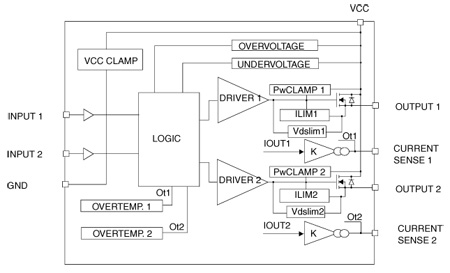

功能框图
 |
VND600SP 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| VND600SP13TR |
Active |
2.084 |
|
PowerSSO 10 |
Tape And Reel |
|
VND600SP13TR |
| VND600SP |
Active |
2.084 |
|
PowerSSO 10 |
Tube |
|
VND600SP |
