TGA4030-SM 17-37 GHz MPA/放大器
The TriQuint TGA4030-SM is a medium power amplifier and multiplier for wide band 17 to 37 GHz applications. The part is designed using TriQuint's 0.15um power pHEMT process. The TGA4030-SM provides a nominal 20 dB small signal gain with 22 dBm maximum output power. For 2x and 3x multiplier function, the TGA4030-SM provides 15 dBm typical output power @ 9 dBm Pin. This part is ideally suited for applications such as point-to-point radio, electronic warfare (EW), instrumentation and frequency multipliers. The part is lead-free and RoHS compliant. Evaluation boards are available upon request.
技术特性
- RF output frequency range: 17 to 37 GHz
- 20 dB nominal gain
- 22 dBm nominal output maximum power
- 2x and 3x multiplier function
- Bias: Vd = 5 V, Id = 140 mA
- Package dimensions: 3.0 x 3.0 x 1.1 mm
订购信息 Ordering Information
| Part |
Package Style |
| TGA4030-SM |
3X3 QFN |
TGA4030-SM 产品实物图
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 17-37 |
19 |
20 |
- |
5 |
140 |
应用领域 APPLICATION
- Electronic Warfare
- Frequency Multipliers
- Instrumentation
- Point-to-Point Radio

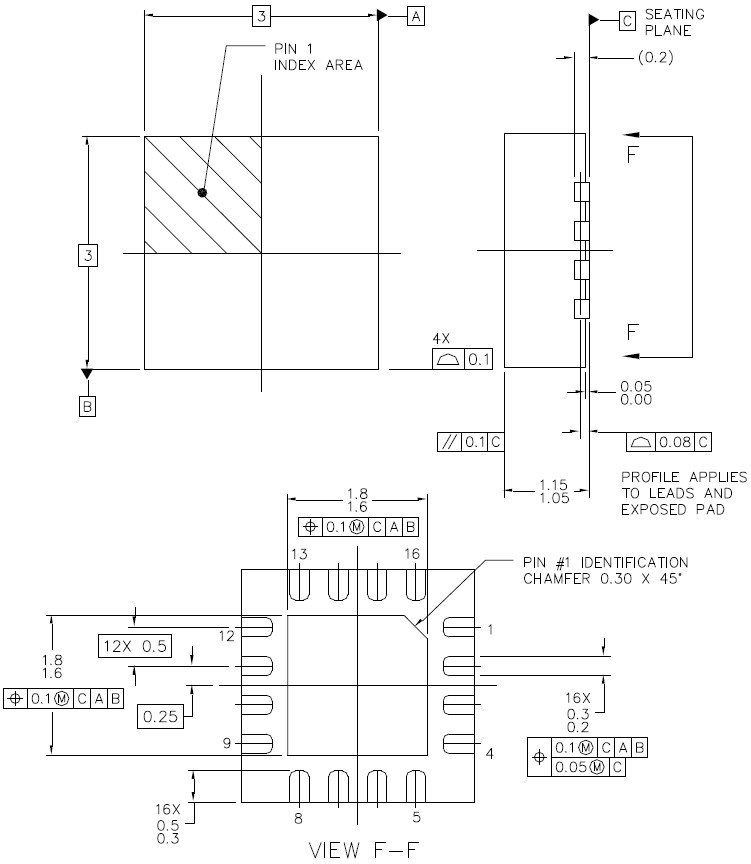

机械图样Mechanical Drawing
 |
