技术特性

• Typical frequency range: 41 to 45 GHz
• 18 dBm nominal P1dB
• 14 dB nominal gain
• 17 dB nominal return loss
• On-chip power detector
• Bias: 6 V, 168 mA
• 0.25 um 2MI pHEMT technology
• Chip dimensions: 3.20 x 2.18 x 0.1 mm (0.126 x 0.086 x 0.004 in)

应用领域 APPLICATION

• Military Radar Systems
• Point-to-Point Radio
• Q Band Satellite Communications (Satcom)

技术指标

订购信息 Ordering Information

• TGA4042

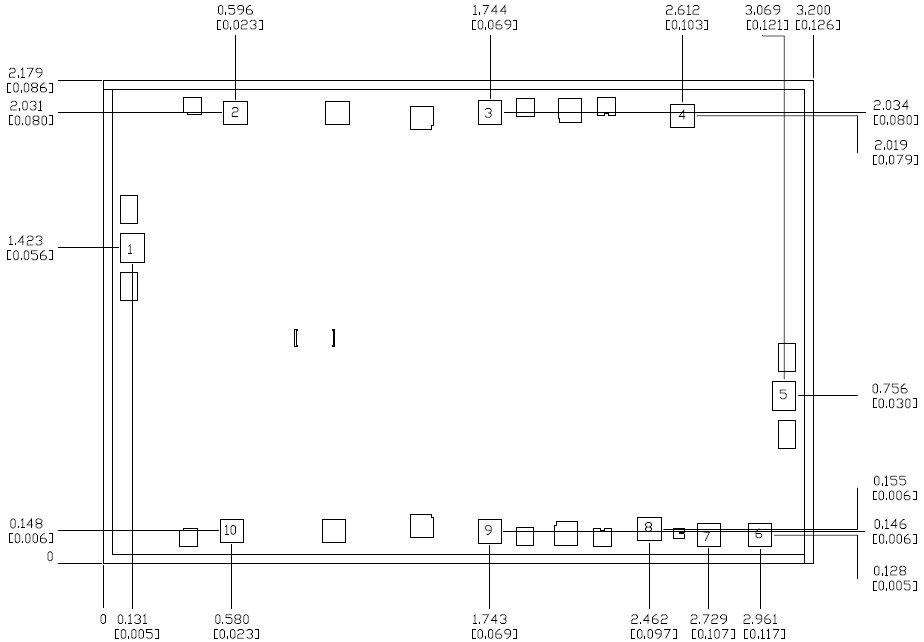

机械图样Mechanical Drawing
