LT1209 - Quad 45MHz, 400V/µs Op Amps

The LT1208/LT1209 are dual and quad very high speed operational amplifiers with excellent DC performance.The LT1208/LT1209 feature reduced input offset voltage and higher DC gain than devices with comparable bandwidth and slew rate. Each amplifier is a single gain stage with outstanding settling characteristics. The fast settling time makes the circuit an ideal choice for data acquisition systems. Each output is capable of driving a 500 ohms load to ±12V with ±15V supplies and a 150 ohms load to ±3V on ±5V supplies. The amplifiers are also capable of driving large capacitive loads which make them useful in buffer or cable driver applications. The LT1208/LT1209 are members of a family of fast, high performance amplifiers that employ Linear Technology Corporation’s advanced bipolar complementary processing.

特点
  • 45MHz Gain-Bandwidth
  • 400V/µs Slew Rate
  • Unity-Gain Stable
  • 7V/mV DC Gain, RL = 500 ohms
  • 3mV Maximum Input Offset Voltage
  • ±12V Minimum Output Swing into 500 ohms
  • Wide Supply Range: ±2.5V to ±15V
  • 7mA Supply Current per Amplifier
  • 90ns Settling Time to 0.1%, 10V Step
  • Drives All Capacitive Loads
典型应用

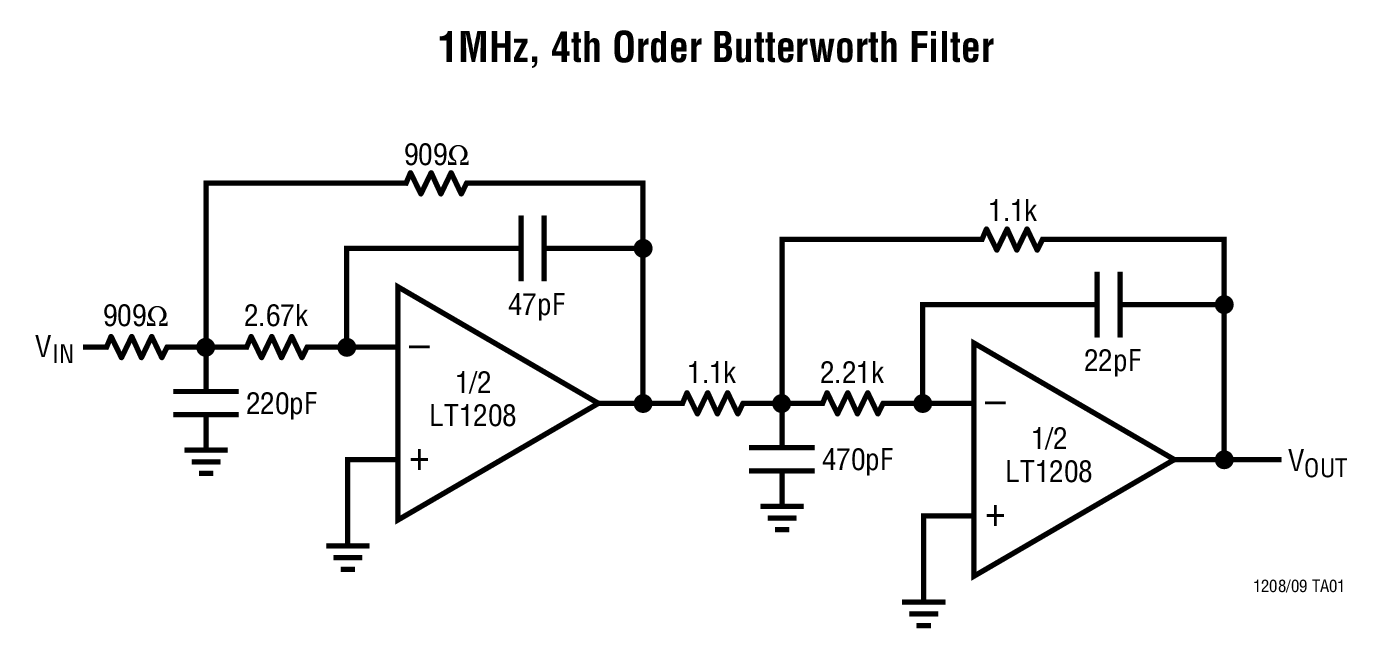

LT1209 Typical Application

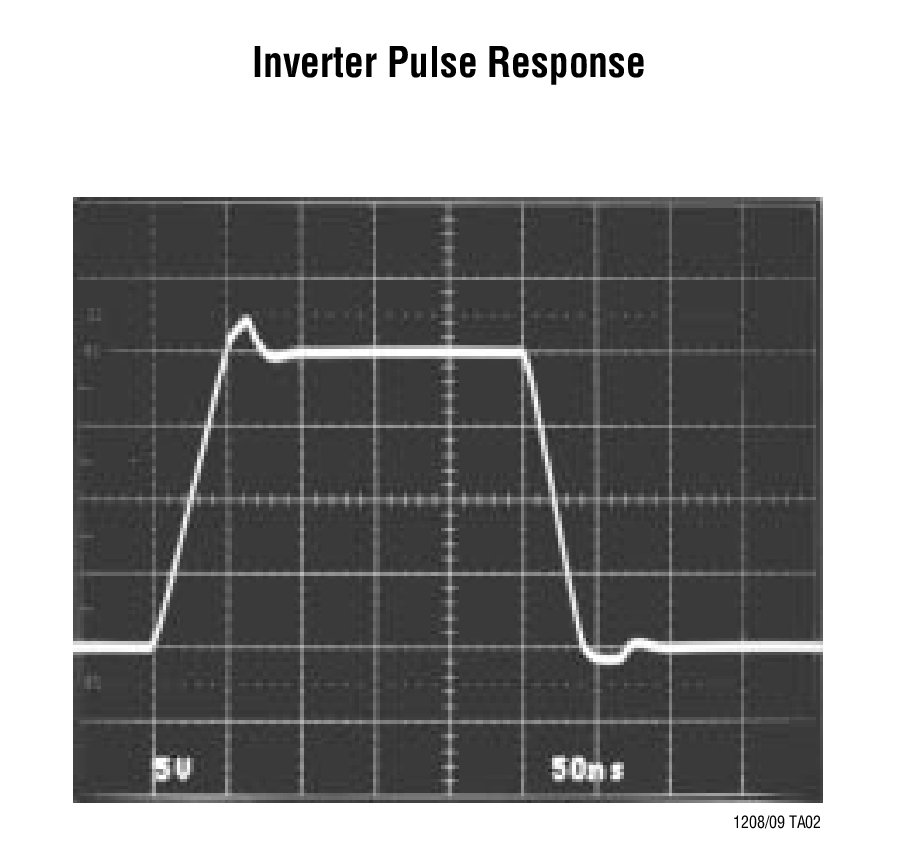

LT1209 Typical Application
应用
  • Wideband Amplifiers
  • Buffers
  • Active Filters
  • Video and RF Amplification
  • Cable Drivers
  • Data Acquisition Systems
封装信息

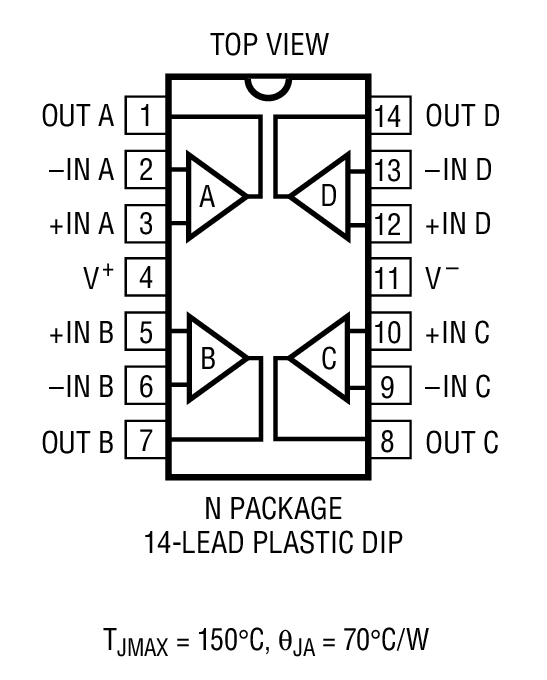

LT1209 Package Drawing

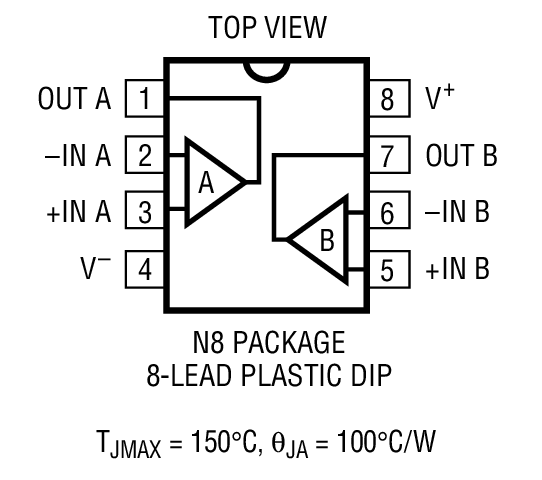

LT1209 Package Drawing

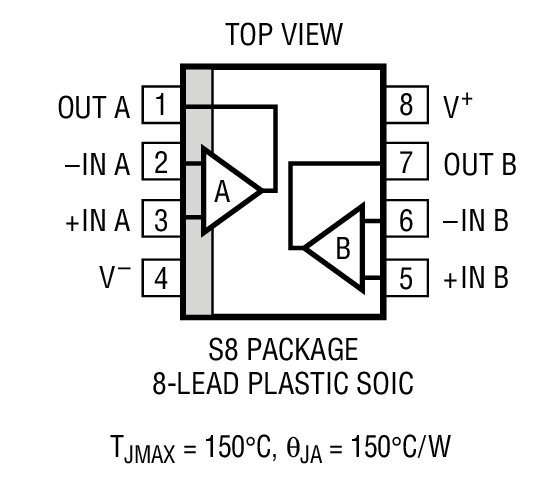

LT1209 Package Drawing

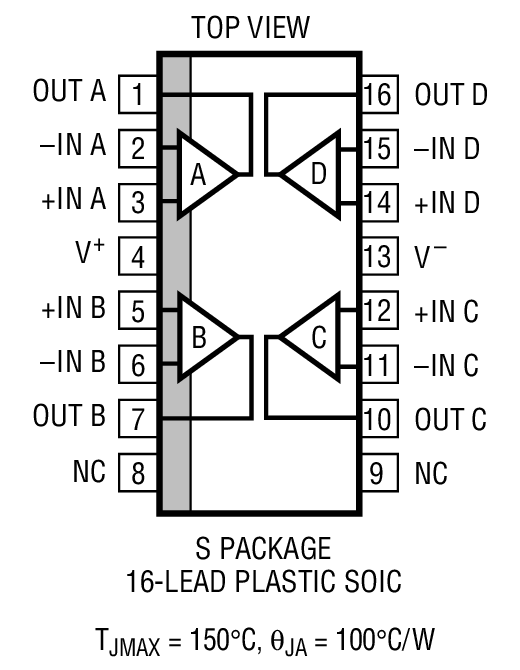

LT1209 Package Drawing
Order Information 订购型号
器件型号封装温度价格 (以 1 ~ 99 片为批量)价格 (以 1000 片为批量) *
LT1209CN#PBFN-14C$8.08$6.65
LT1209CS#PBFSO-16C$8.67$7.10
LT1209CS#TRPBFSO-16C$7.16
数据表
设计要点
可靠性数据
CAD 符号
相关产品
LT1208/LT1209 - Dual and Quad 45MHz, 400V/µs Op Amps
DN107 - C-Load TM Op Amps Conquer Instabilities
DN83 - C-Load TM Op Amps Tame Instabilities
R164 Reliability Data
LT1209 Footprints and Symbols
