LT1226 - Low Noise Very High Speed Operational Amplifier

The LT1226 is a low noise, very high speed operational amplifier with excellent DC performance. The LT1226 features low input offset voltage and high DC gain. The circuit is a single gain stage with outstanding settling characteristics. The fast settling time makes the circuit an ideal choice for data acquisition systems. The output is capable of driving a 500 ohms load to ±12V with ±15V supplies and a 150 ohms load to ±3V on ±5V supplies. The circuit is also capable of driving large capacitive loads which makes it useful in buffer or cable driver applications. The LT1226 is a member of a family of fast, high performance amplifiers that employ Linear Technology Corporation’s advanced bipolar complementary processing.

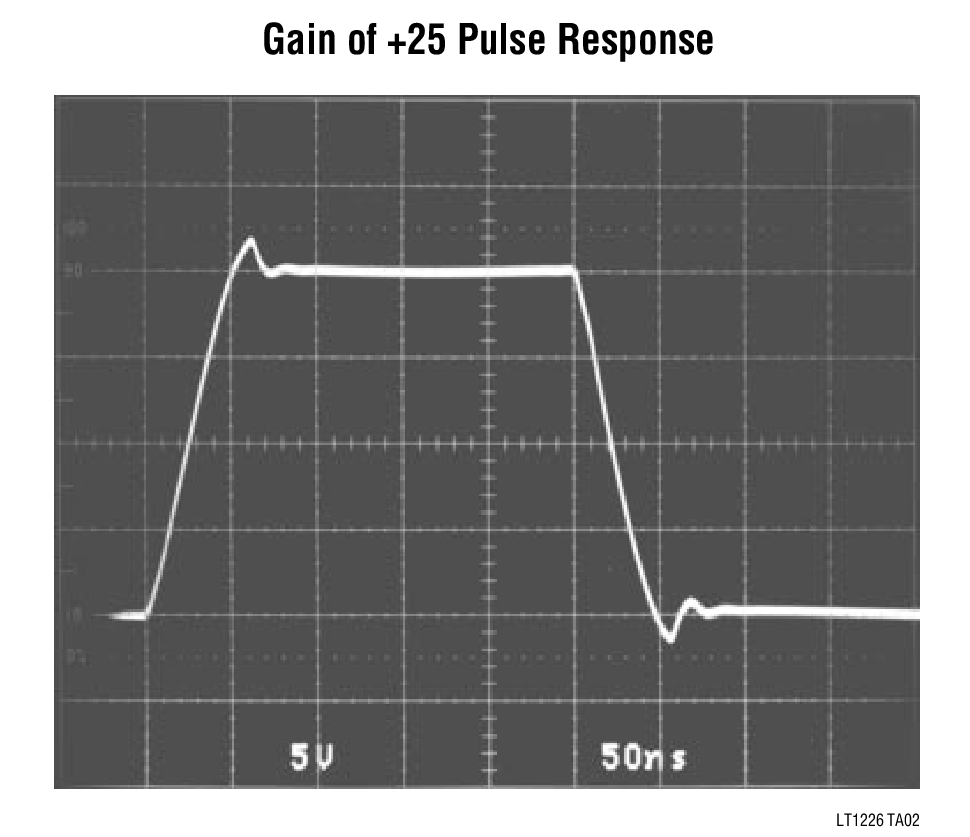

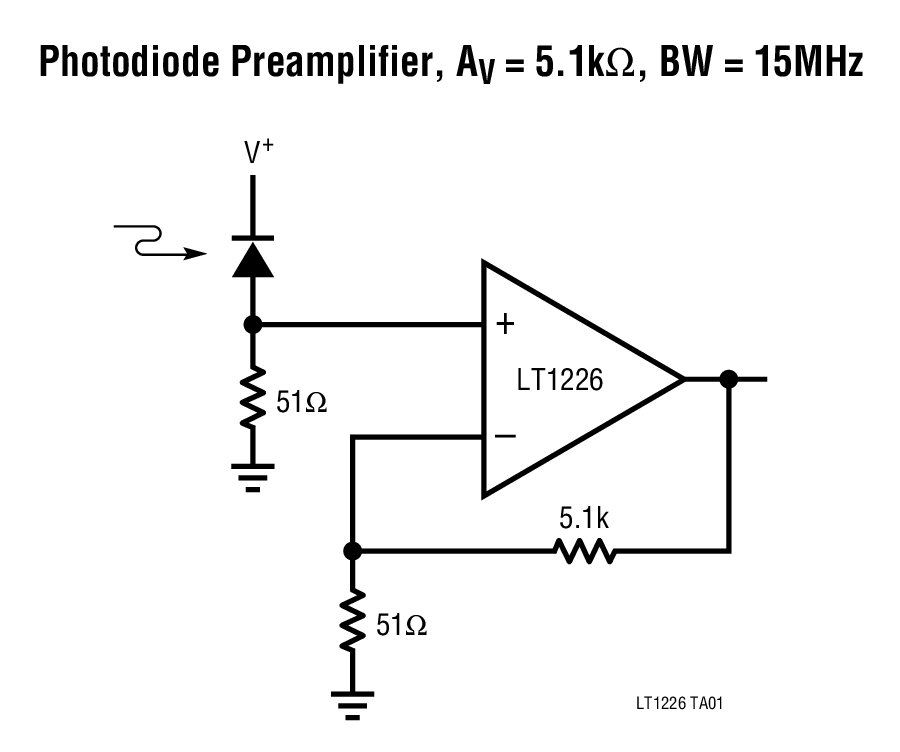

特点 Gain of 25 Stable 1GHz Gain Bandwidth 400V/µs Slew Rate 2.6nV/rtHz Input Noise Voltage 50V/mV Minimum DC Gain, RL = 500 ohms 1mV Maximum Input Offset Voltage ±12V Minimum Output Swing into 500 ohms Wide Supply Range ±2.5V to ±15V 7mA Supply Current 100ns Settling Time to 0.1%, 10V Step Drives All Capacitive Loads 典型应用

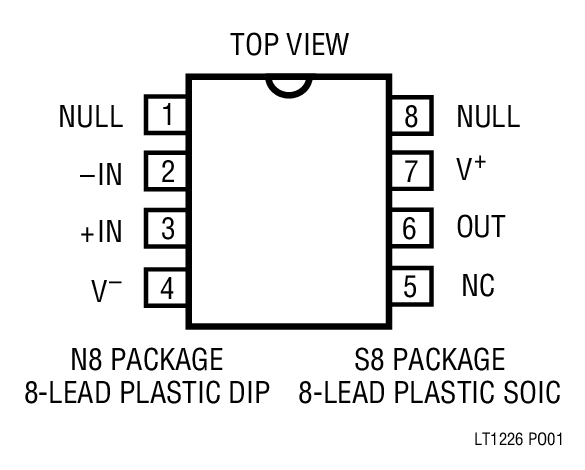

应用 Wideband Amplifiers Buffers Active Filters Video and RF Amplification Cable Drivers Data Acquisition Systems 封装信息

演示电路板
