LT1462 - Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps

The LT®1462 (dual) and LT1463 (quad) are the first micropower op amps (45µA max per amp) to offer picoampere input bias currents (1pA typ) and unity gain stability for capacitive loads up to 10nF. The output can swing a 10k load to within 1.5V of either supply, just like op amps that require an order of magnitude more supply current. This unique combination of performance makes the LT1462/LT1463 ideal over a wide range of input and output impedances. In the design and testing of the LT1462/LT1463, particular emphasis has been placed on optimizing performance in the low cost SO-8 (dual) and 14-lead SO package (quad) for ±15V and ±5V supplies. The input common mode range includes the positive rail. Slew rate (0.08V/µs min) and gain bandwidth product (125kHz min) are 100% tested. A full set of matching specifications is also provided.

特点
  • Input Bias Current:2pA Max (LT1462A)20pA Max (LT1462, LT1463)
  • Supply Current per Amplifier: 45µA Max
  • Unity-Gain Stable for C-Load™Up to 10nF
  • Input Common Mode Range Includes Positive Rail
  • Guaranteed Specs with ±5V, ±15V Supplies
  • Gain Bandwidth Product: 175kHz Typ
  • Slew Rate: 0.13V/µs Typ
  • Guaranteed Matching Specifications
  • Standard Pinout: SO-8, SO-14 Package
典型应用

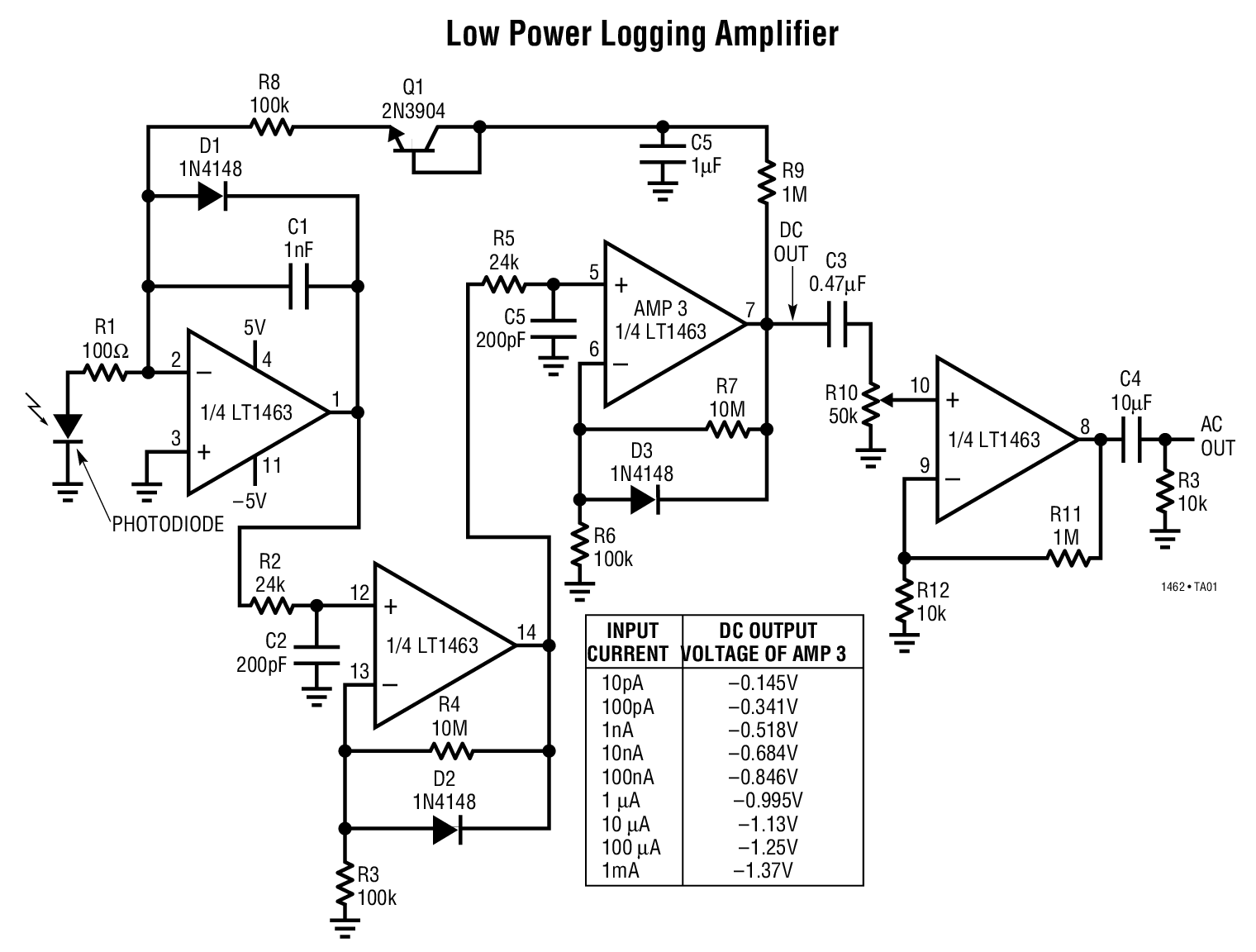

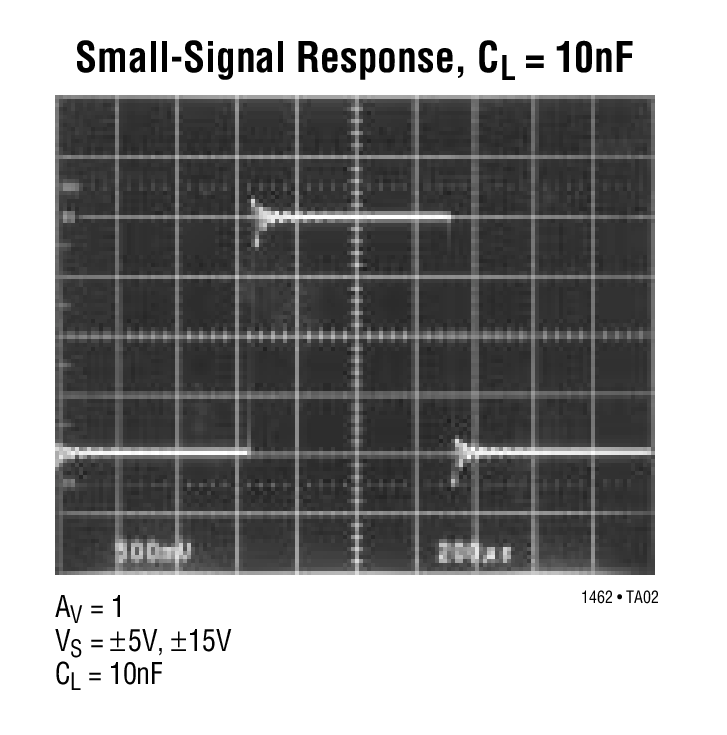

LT1462 Typical Application
LT1462 Typical Application
应用
  • Battery-Powered Systems
  • Photocurrent Amplifiers
  • Low Frequency, Micropower Active Filters
  • Low Droop Track-and-Hold Circuits
封装信息

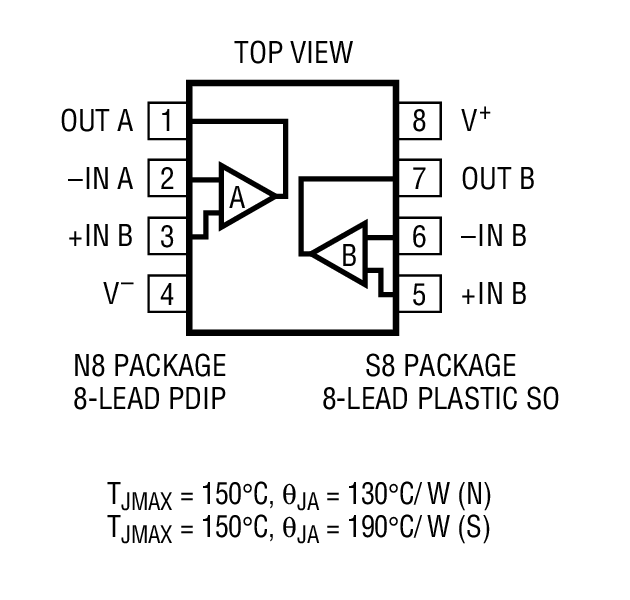

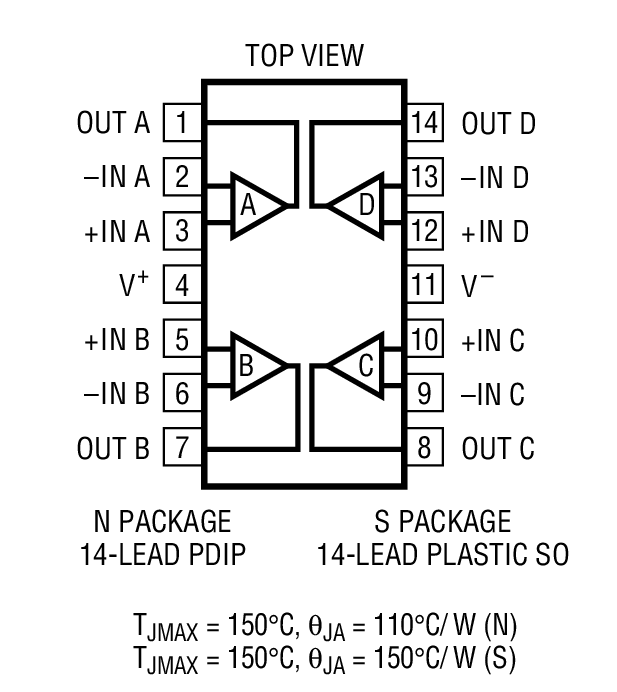

LT1462 Package Drawing
LT1462 Package Drawing
Order Information 订购型号
器件型号封装温度价格 (以 1 ~ 99 片为批量)价格 (以 1000 片为批量) *
LT1462ACN8#PBFN-8C$5.55$4.65
LT1462ACS8#PBFSO-8C$5.70$4.80
LT1462ACS8#TRPBFSO-8C$4.86
LT1462CN8#PBFN-8C$3.10$2.50
LT1462CS8#PBFSO-8C$3.25$2.65
LT1462CS8#TRPBFSO-8C$2.71
