LT1680 - High Power DC/DC Step-Up Controller
The LT1680 incorporates programmable average current limiting allowing accurate limiting of DC current in the magnetics, independent of ripple current. User adjustable slope compensation provides stable operation at duty cycles up to 90%.
The LT1680 operating frequency is programmable and can be synchronized up to 200kHz. Minimum off-time operation provides switch protection. The IC also incorporates a soft start feature that is gated by both shutdown and undervoltage lockout conditions.
特点

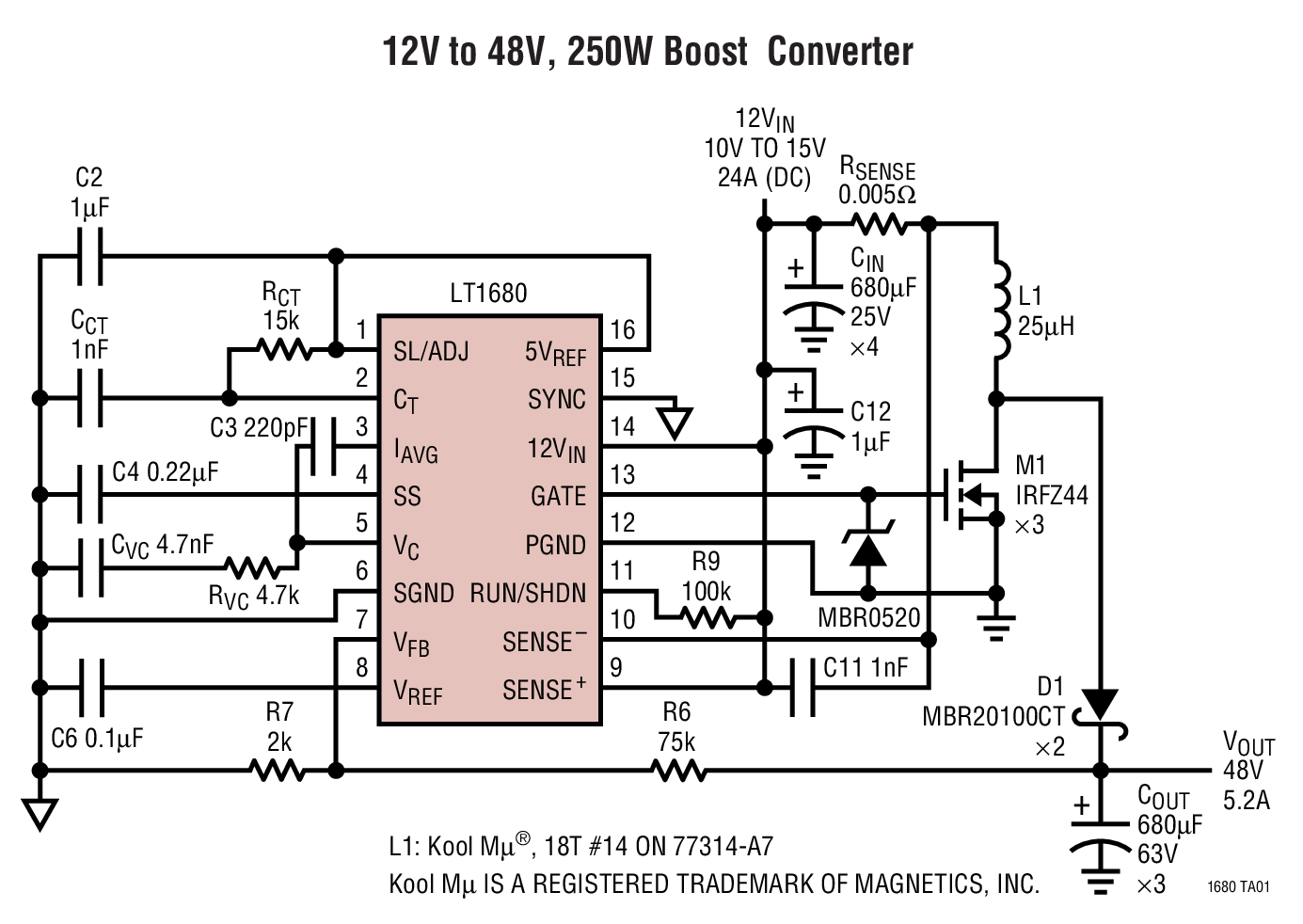

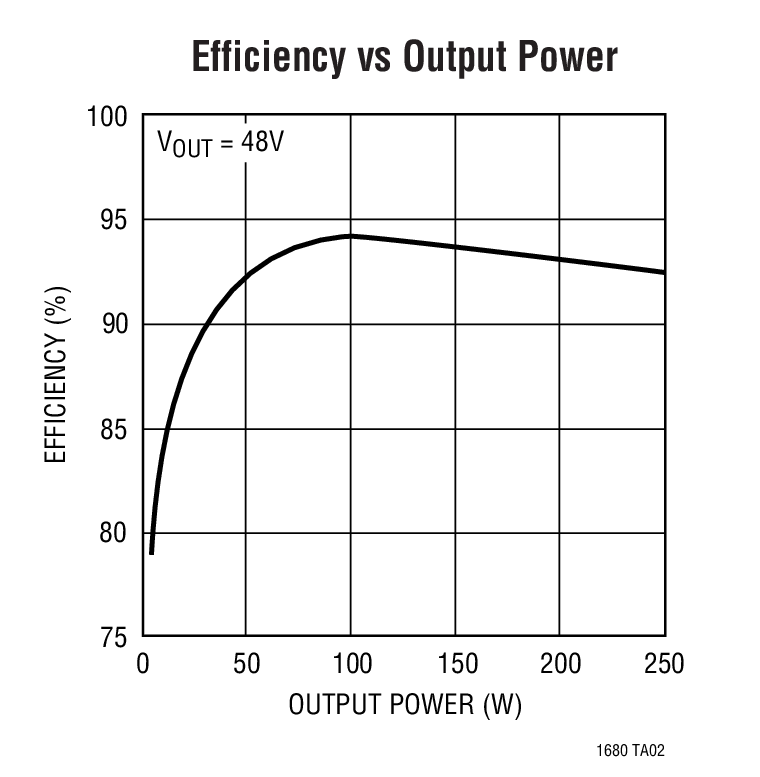

典型应用  | 应用
封装信息 |
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) * |
|---|---|---|---|---|
| LT1680CN#PBF | N-16 | C | $4.90 | $4.00 |
| LT1680CSW#PBF | SW-16 | C | $5.15 | $4.20 |
| LT1680CSW#TRPBF | SW-16 | C | $4.26 | |
| LT1680IN#PBF | N-16 | I | $5.90 | $4.80 |
| LT1680ISW#PBF | SW-16 | I | $6.15 | $5.00 |
| LT1680ISW#TRPBF | SW-16 | I | $5.06 |
