LT6010 - 135µA, 14nV/rtHz, Rail-to-Rail Output Precision Op Amp with Shutdown
The LT®6010 op amp combines low noise and high precision input performance with low power consumption and rail-to-rail output swing.

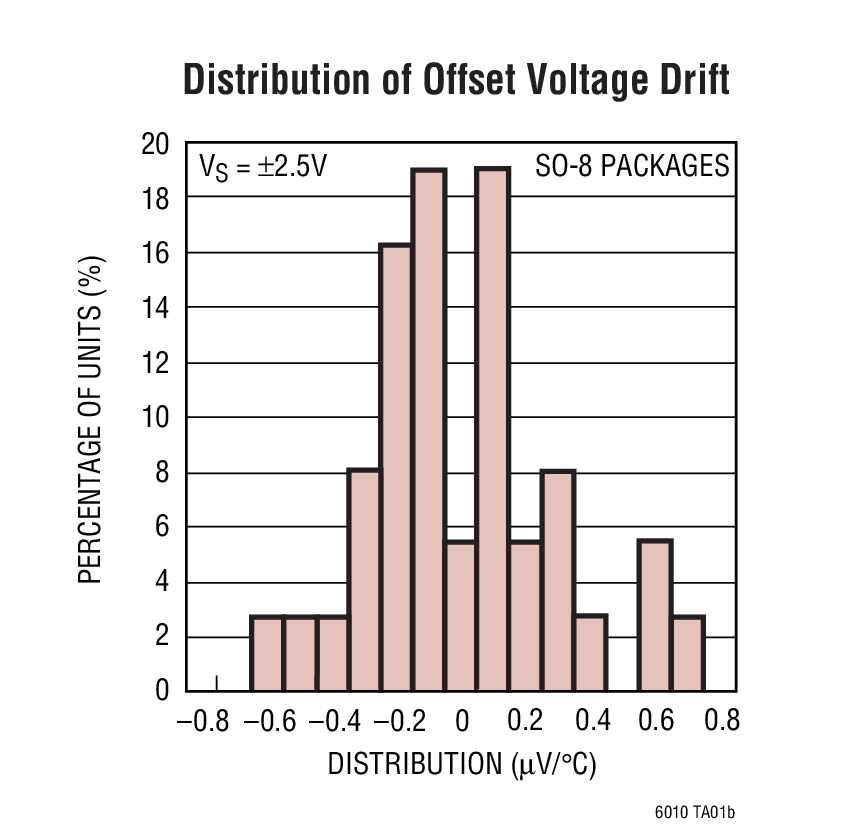

Input offset voltage is trimmed to less than 35µV. The low drift and excellent long-term stability guarantee a high accuracy over temperature and over time. The 110pA maximum input bias current and 120dB minimum voltage gain further maintain this precision over operating conditions.
The LT6010 works on any power supply voltage from 2.7V to 36V, and draws only 135µA of supply current on a 5V supply. A power saving shutdown feature reduces supply current to 12µA. The output voltage swings to within 40mV of either supply rail, making the amplifier a good choice for low voltage single supply operation.

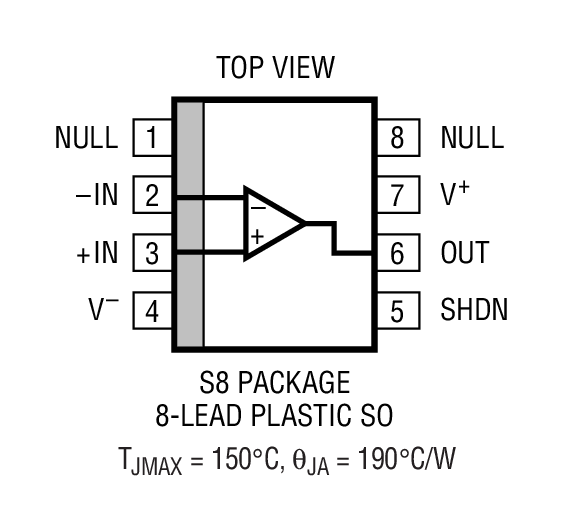

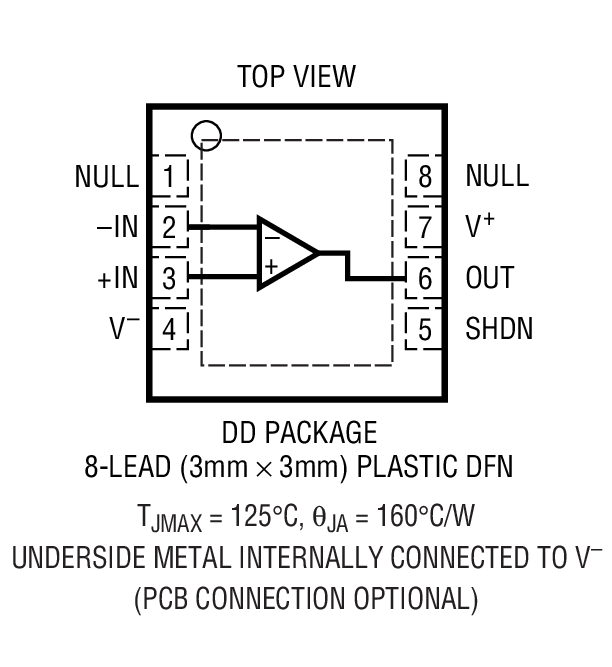

The LT6010 is fully specified at 5V and ±15V supplies and from –40°C to 85°C. The device is available in SO-8 and space-saving 3mm x 3mm DFN packages. This op amp is also available in dual (LT6011) and quad (LT6012) packages.
特点

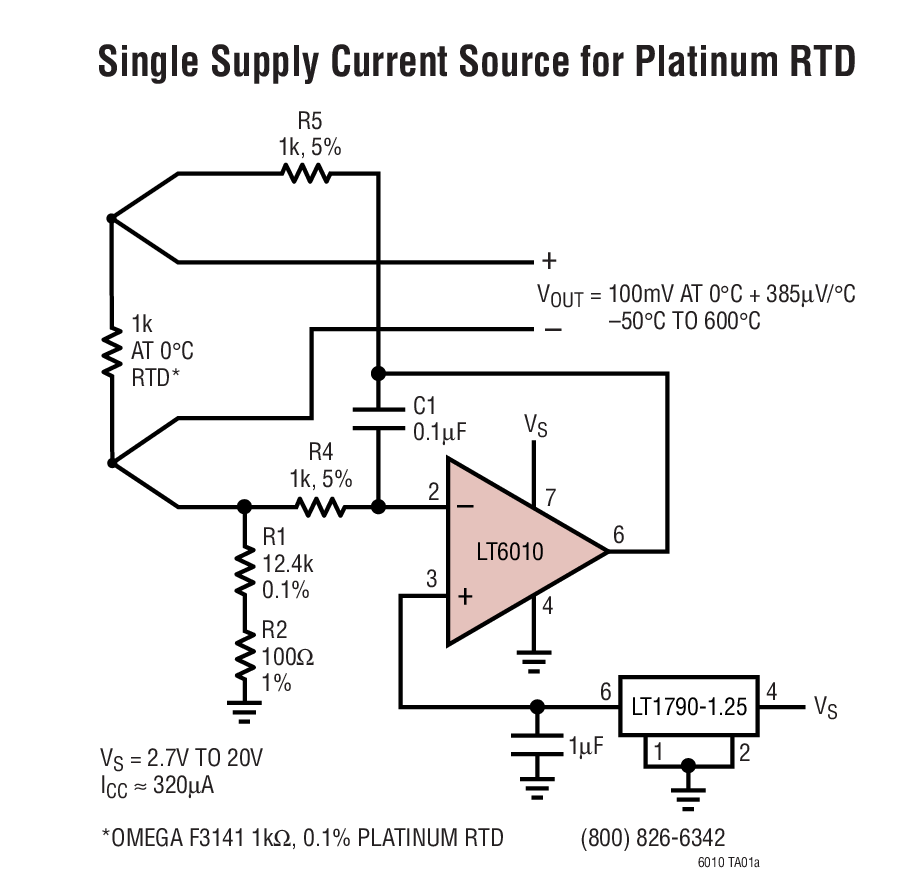

典型应用  | 应用
封装信息  |
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) * |
|---|---|---|---|---|
| LT6010ACDD#PBF | 3x3 DFN-8 | C | $2.20 | $1.80 |
| LT6010ACDD#TRPBF | 3x3 DFN-8 | C | $1.86 | |
| LT6010ACS8#PBF | SO-8 | C | $2.00 | $1.65 |
| LT6010ACS8#TRPBF | SO-8 | C | $1.71 | |
| LT6010AIDD#PBF | 3x3 DFN-8 | I | $2.65 | $2.20 |
| LT6010AIDD#TRPBF | 3x3 DFN-8 | I | $2.26 | |
| LT6010AIS8#PBF | SO-8 | I | $2.40 | $1.95 |
| LT6010AIS8#TRPBF | SO-8 | I | $2.01 | |
| LT6010CDD#PBF | 3x3 DFN-8 | C | $1.65 | $1.30 |
| LT6010CDD#TRPBF | 3x3 DFN-8 | C | $1.36 | |
| LT6010CS8#PBF | SO-8 | C | $1.45 | $1.10 |
| LT6010CS8#TRPBF | SO-8 | C | $1.16 | |
| LT6010IDD#PBF | 3x3 DFN-8 | I | $1.95 | $1.60 |
| LT6010IDD#TRPBF | 3x3 DFN-8 | I | $1.66 | |
| LT6010IS8#PBF | SO-8 | I | $1.70 | $1.35 |
| LT6010IS8#TRPBF | SO-8 | I | $1.41 |
演示电路板
| 器件型号 | 描述 | 价格 |
|---|---|---|
| DC417B | DIP8, MS8, S8, SOT23-6 | Multi-Footprint General Purpose Board for Single Op. Amp | $25.00 |
