LT6559 - Low Cost 5V/±5V 300MHz Triple Video Amplifier in 3mm x 3mm QFN

The LT6559 is a low cost, high speed, triple amplifier that has been optimized for excellent video performance on a single 5V supply, yet fi ts in the small footprint of a 3mm × 3mm QFN package. With a –3dB bandwidth of 300MHz, a 0.1dB bandwidth of 150MHz, and a slew rate of 800V/µs, the LT6559’s dynamic performance is an excellent match for high speed RGB or YPBPR video applications.

For multiplexing applications such as KVM switches or selectable video inputs, each channel has an independent high speed enable/disable pin. Each amplifier will turn on in 30ns and off in 40ns. When enabled, each amplifier draws 3.9mA from a 5V supply. The LT6559 operates on a single supply voltage ranging from 4V to 12V, and on split supplies ranging from ±2V to ±6V.

The LT6559 comes in a compact 16-lead 3mm × 3mm QFN package, and operates over a –40°C to 85°C temperature range. The LT6559 is manufactured on Linear Technology’s proprietary complementary bipolar process.

特点
  • 300MHz Bandwidth on Single 5V and ±5V (AV = 1, 2 and –1)
  • 0.1dB Gain Flatness: 150MHz (AV = 1, 2 and –1)
  • High Slew Rate: 800V/µs
  • Wide Supply Range:  ±2V to ±6V (Dual Supply)  4V to 12V (Single Supply)
  • 80mA Output Current
  • Low Supply Current: 3.9mA/Amplifier
  • Shutdown Mode
  • Fast Turn-On Time: 30ns
  • Fast Turn-Off Time: 40ns
  • Small 0.75mm Tall 16-Lead 3mm × 3mm QFN Package
典型应用

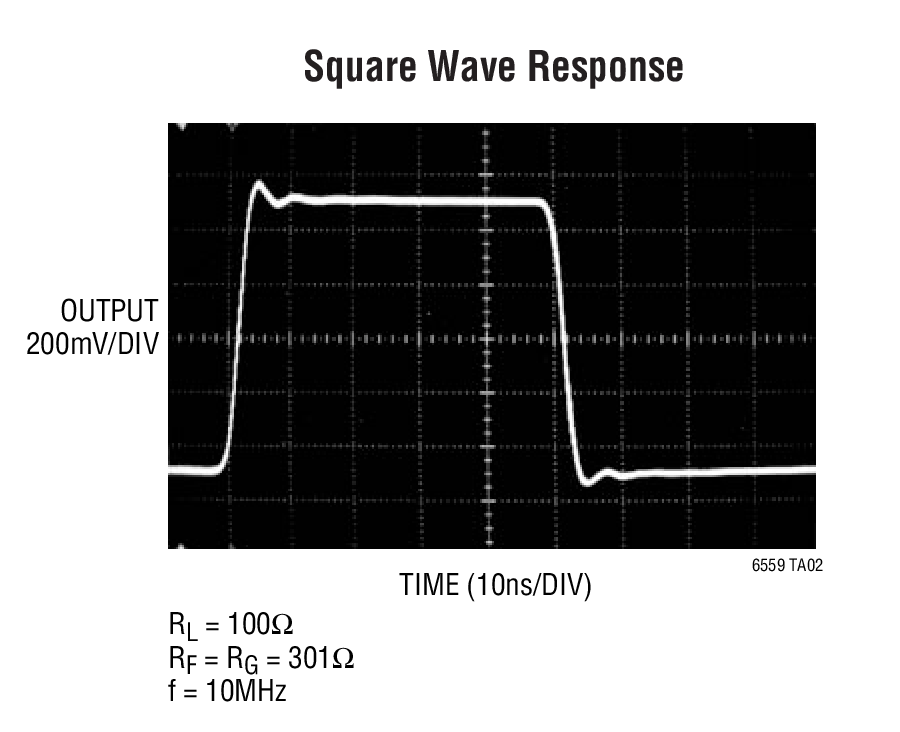

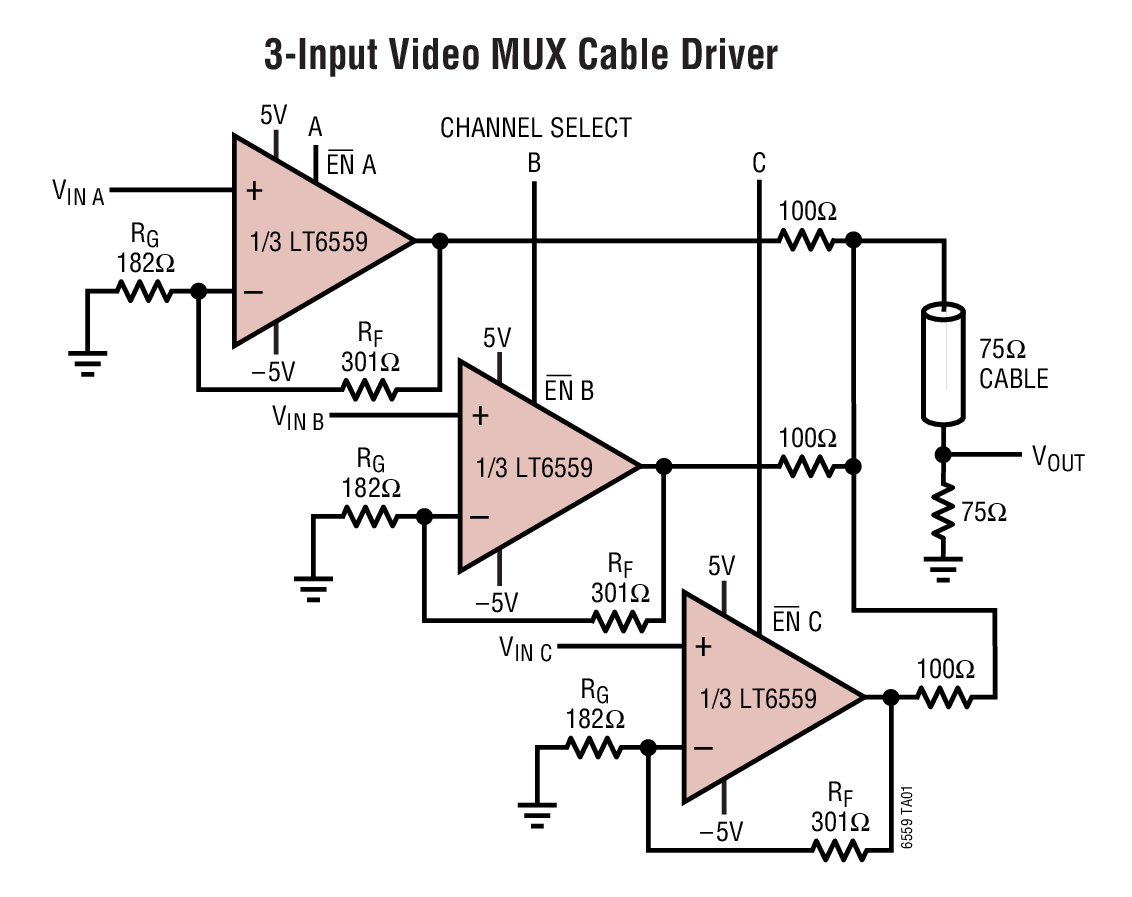

LT6559 Typical Application
LT6559 Typical Application
应用
  • RGB/YPBPR Cable Drivers
  • LCD Projectors
  • KVM Switches
  • A/V Receivers
  • MUX Amplifiers
  • Composite Video Cable Drivers
  • ADC Drivers
封装信息

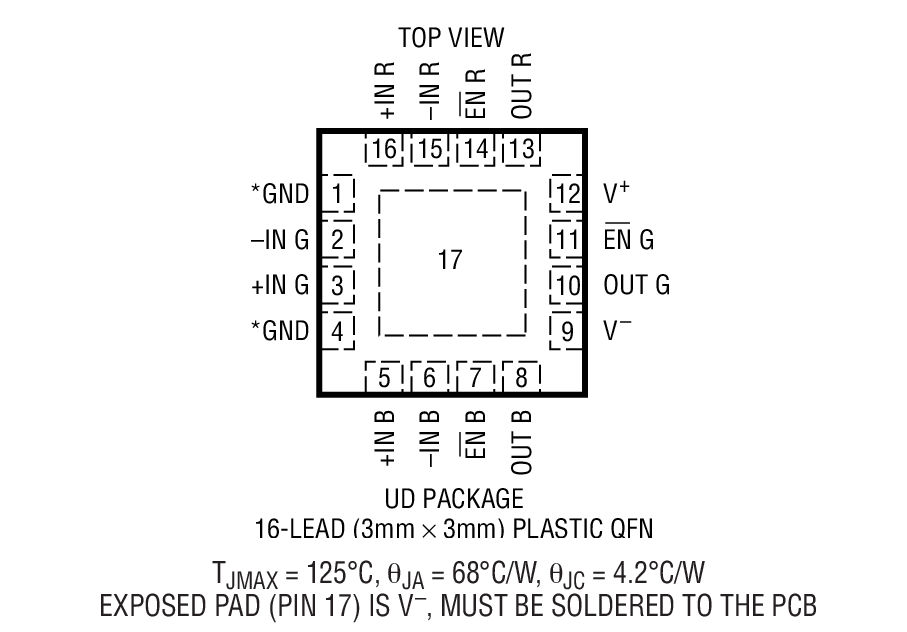

LT6559 Package Drawing
Order Information 订购型号
器件型号封装温度价格 (以 1 ~ 99 片为批量)价格 (以 1000 片为批量) *
LT6559CUD#PBF3x3 QFN-16C$1.36$0.95
LT6559CUD#TRPBF3x3 QFN-16C$1.01
演示电路板
器件型号描述价格
DC1063ALT6559 - DEMO BOARD; RGB Triple Video Amplifier$50.00
