LTC1624 - High Efficiency SO-8 N-Channel Switching Regulator Controller

The LTC®1624 is a current mode switching regulator controller that drives an external N-channel power MOSFET using a fixed frequency architecture. It can be operated in all standard switching configurations including boost, step-down, inverting and SEPIC. Burst Mode™ operation provides high efficiency at low load currents. A maximum high duty cycle limit of 95% provides low dropout operation which extends operating time in battery-operated systems. The operating frequency is internally set to 200kHz, allowing small inductor values and minimizing PC board space. The operating current level is user-programmable via an external current sense resistor. Wide input supply range allows operation from 3.5V to 36V (absolute maximum). A multifunction pin (ITH/RUN) allows external compensation for optimum load step response plus shutdown. Soft start can also be implemented with the ITH/RUN pin to properly sequence supplies.

特点 N-Channel MOSFET Drive Implements Boost, Step-Down, SEPIC and Inverting Regulators Wide VIN Range: 3.5V to 36V Operation Wide VOUT Range: 1.19V to 30V in Step-Down Configuration ±1% 1.19V Reference Low Dropout Operation: 95% Duty Cycle 200kHz Fixed Frequency Low Standby Current Very High Efficiency Remote Output Voltage Sense Logic-Controlled Micropower Shutdown Internal Diode for Bootstrapped Gate Drive Current Mode Operation for Excellent Line and Load Transient Response Available in an 8-Lead SO Package 典型应用

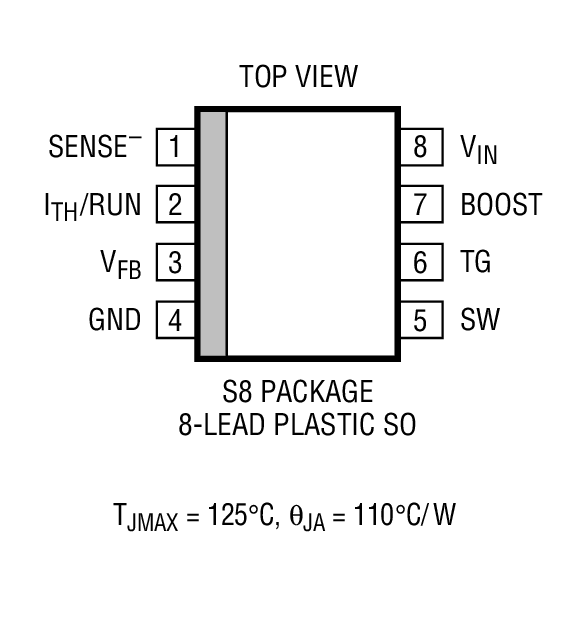

应用 Notebook and Palmtop Computers, PDAs Cellular Telephones and Wireless Modems Battery-Operated Digital Devices DC Power Distribution Systems Battery Chargers 封装信息

演示电路板
