LTC1968 - 精准宽带宽、RMS 至 DC 转换器

The LTC1968 operates with single-ended or differential input signals and accurately supports crest factors up to 4. Common mode input range is rail-to-rail. Differential input range is 1VPEAK, and offers unprecedented linearity. The LTC1968 allows hassle-free system calibration at any input voltage.

The LTC1968 has a rail-to-rail output with a separate output reference pin providing flexible level shifting; it operates on a single power supply from 4.5V to 5.5V. A low power shutdown mode reduces supply current to 0.1µA.

The LTC1968 is packaged in the space-saving MSOP package, which is ideal for portable applications.

特点

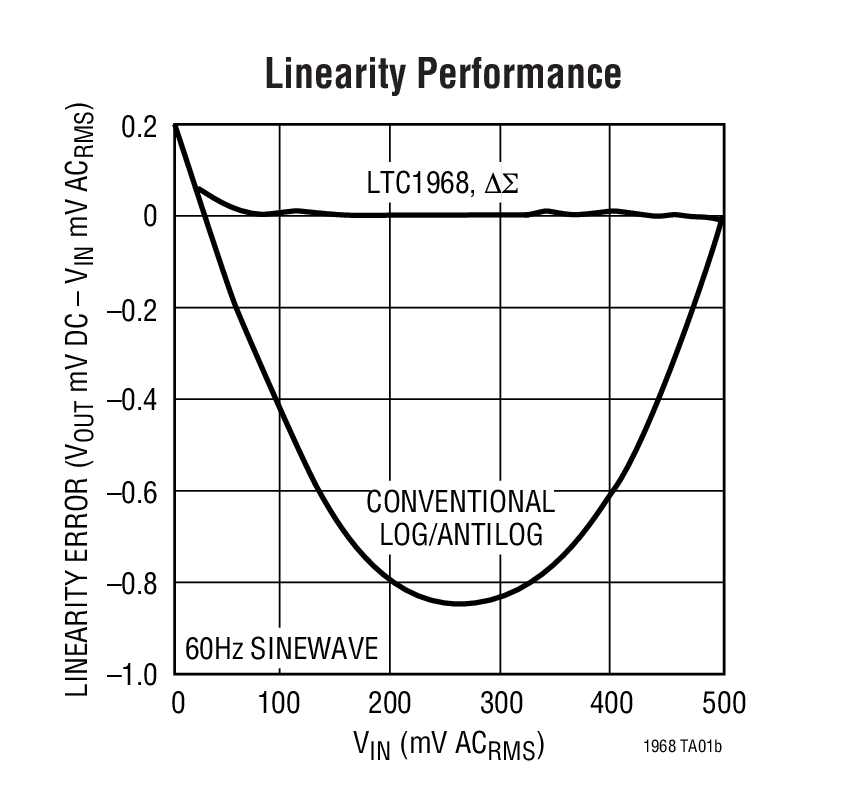

  • High Linearity:0.02% Linearity Allows Simple System Calibration
  • Wide Input Bandwidth:Bandwidth to 1% Additional Gain Error: 500kHzBandwidth to 0.1% Additional Gain Error: 150kHz3dB Bandwidth Independent of Input Voltage Amplitude
  • No-Hassle Simplicity:True RMS-DC Conversion with Only One External CapacitorDelta Sigma Conversion Technology
  • Ultralow Shutdown Current:0.1µA
  • Flexible Inputs:Differential or Single EndedRail-to-Rail Common Mode Voltage RangeUp to 1VPEAK Differential Voltage
  • Flexible Output:Rail-to-Rail OutputSeparate Output Reference Pin Allows Level Shifting
  • Small Size:Space Saving 8-Pin MSOP Package
典型应用

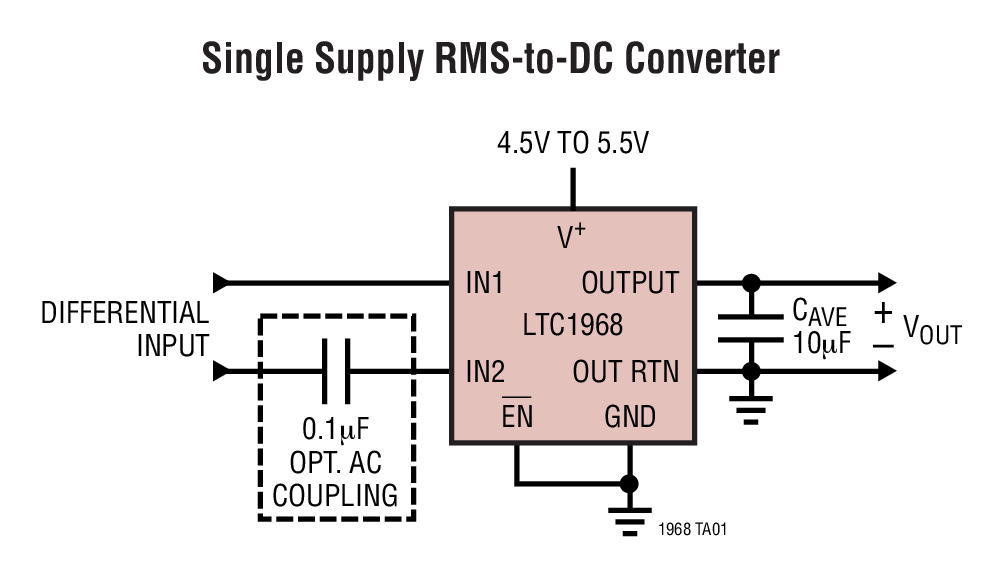

LTC1968 Typical Application
LTC1968 Typical Application
应用
  • True RMS Digital Multimeters and Panel Meters
  • True RMS AC + DC Measurements
封装信息

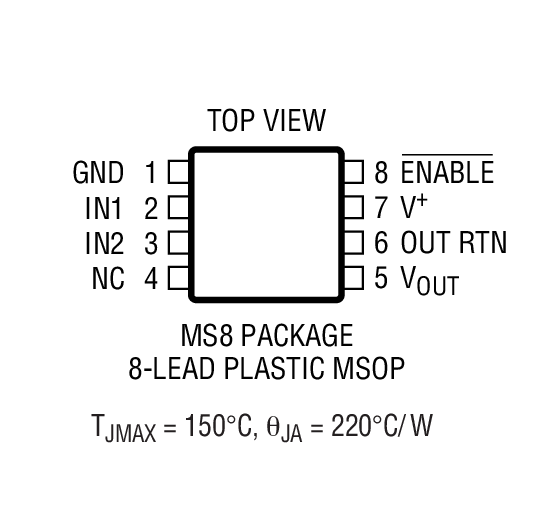

LTC1968 Package Drawing
Order Information 订购型号
器件型号封装温度价格 (以 1 ~ 99 片为批量)价格 (以 1000 片为批量) *
LTC1968CMS8#PBFMS-8C$5.21$3.95
LTC1968CMS8#TRPBFMS-8C$4.01
LTC1968IMS8#PBFMS-8I$8.80$6.60
LTC1968IMS8#TRPBFMS-8I$6.66
演示电路板
器件型号描述价格
DC427B-CLTC1968CMS8 | RMS to DC Converter$50.00
数据表
应用指南
设计要点
可靠性数据
LT Journal
产品新闻发布
CAD 符号
相关产品
LTC1968: Precision Wide Bandwidth, RMS-to-DC Converter
DN362 - 采用直接 RMS 至 DC 转换的精准 LVDT 信号调理
AN106 - Instrumentation Circuitry Using RMS-to-DC Converters
DN362 - Precision LVDT Signal Conditioning Using Direct RMS to DC Conversion
R415 - Reliability Data
August 2004 - Accurate and Simple AC Measurement to 500kHz
March 2005 - Low-Distortion Sine Wave Oscillator with Precise RMS Amplitude Stability
LTC1967/LTC1968 - Product Press Release
LTC1968 Footprints and Symbols
