LTC3801 - Micropower Constant Frequency Step-Down DC/DC Controllers in ThinSOT

The LTC®3801/LTC3801B are constant frequency current mode step-down DC/DC controllers in a low profile (1mm max) 6-lead SOT-23 (ThinSOT™) package. The parts provide excellent AC and DC load and line regulation with ±1.5% output voltage accuracy. The LTC3801 consumes only 195mA of quiescent current in normal operation, dropping to 16µA under no-load conditions.

The LTC3801/LTC3801B incorporate an undervoltage lockout feature that shuts down the device when the input voltage falls below 2.2V. The LTC3801 automatically switches into Burst Mode operation at light loads which enhances efficiency at low output current. In the LTC3801B, Burst Mode operation is disabled for lower output ripple at light loads.

To further maximize the life of a battery source, the external P-channel MOSFET is turned on continuously in dropout (100% duty cycle). High switching frequency of 550kHz allows the use of a small inductor.

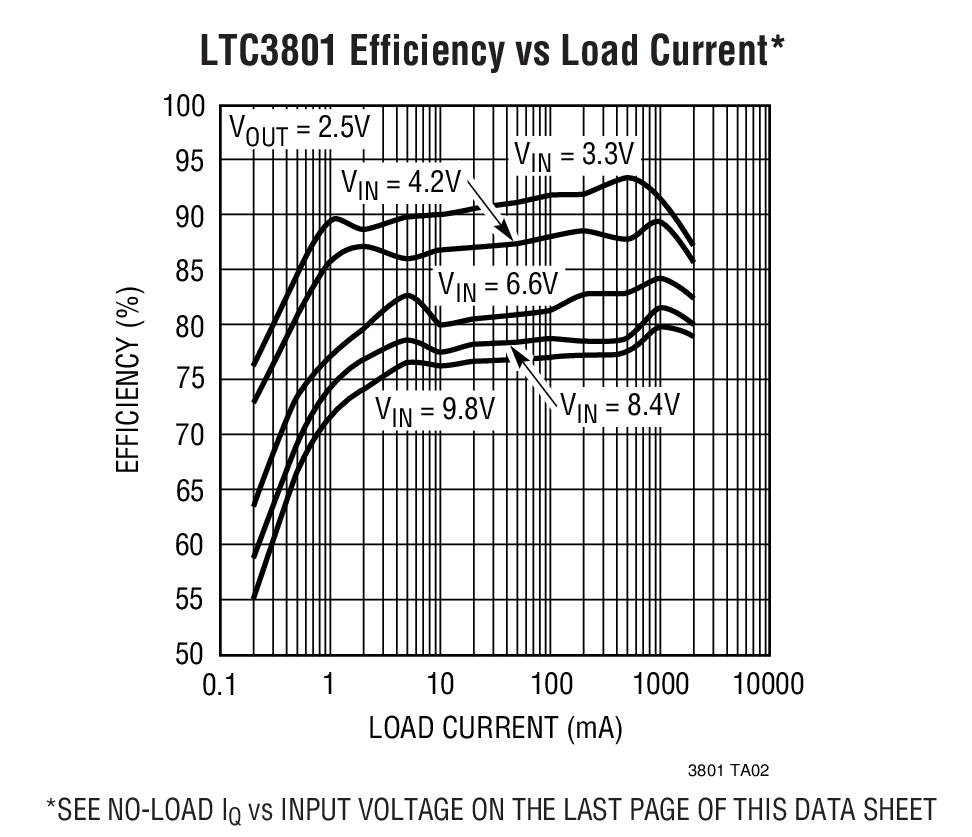

特点 High Efficiency: Up to 94% Very Low No-Load Quiescent Current: Only 16µA (LTC3801) High Output Currents Easily Achieved Internal Soft-Start Wide VIN Range: 2.4V to 9.8V Low Dropout: 100% Duty Cycle Constant Frequency 550kHz Operation Burst Mode® Operation for High Efficiency at Light Loads (LTC3801) Burst Mode Operation Disabled for Lower Output Ripple at Light Loads (LTC3801B) Output Voltage as Low as 0.8V ±1.5% Voltage Reference Accuracy Current Mode Operation for Excellent Line and Load Transient Response Only 6µA Supply Current in Shutdown (LTC3801) Low Profile (1mm) SOT-23 Package 典型应用

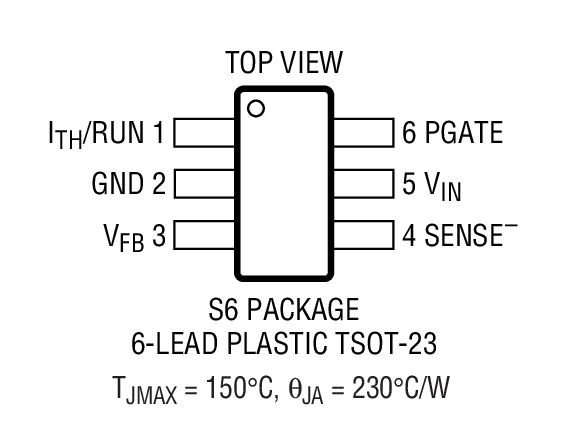

应用 1- or 2-Cell Li-Ion Battery-Powered Applications Wireless Devices Portable Computers Distributed Power Systems 封装信息

演示电路板
