DC1989A-C - LTM4676 Demo Board | LTM4676(x4) Current Shared, PSM, 4.5V ≤ VIN ≤ 16V, Vout = 0.5V to 4V @ 100A
Demonstration circuit 1989A-C is a high efficiency, high density, μModule regulator with 4.5V to 16V input range. The output voltage is adjustable from 0.5V to 4V, and it can supply 100A maximum load current. The demo board has four LTM®4676 μModule regulators. The LTM4676 is a dual 13A or single 26A step-down regulator with PMBus power system management.
DC1613A - USB-to-PMBus Controller for Use with LTpowerPlayDC2086A - Powered Programming Adapter for Digital Power System Management Products
Demo Board Design File
Demo Board Manual

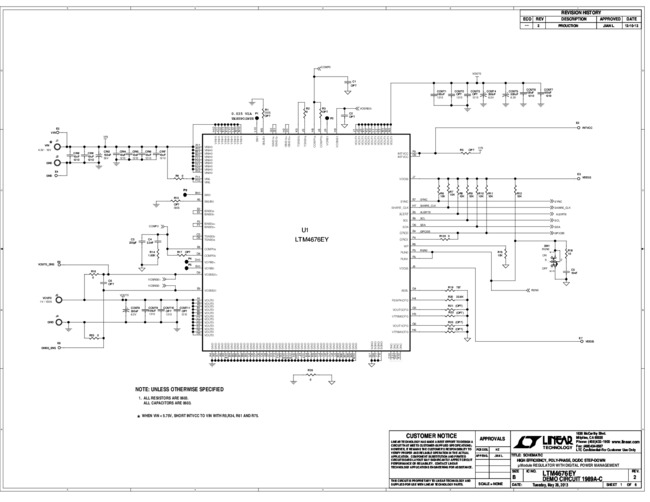

Demo Board Schematic
LTspice
LTpowerCAD
