CA5260: Dual 3MHz, BiMOS Microprocessor Operational Amplifiers with MOSFET Input/CMOS Output

The CA5260A and CA5260 are integrated-circuit operational amplifiers that combine the advantage of both CMOS and bipolar transistors on a monolithic chip. The CA5260 series circuits are dual versions of the popular CA5160 series. They are designed and guaranteed to operate in microprocessor or logic systems that use +5V supplies.

Gate-protected P-Channel MOSFET (PMOS) transistors are used in the input circuit to provide very-high-input impedance, very-low-input current, and exceptional speed performance. The use of PMOS field-effect transistors in the input stage results in common-mode input-voltage capability down to 0.5V below the negative-supply terminal, an important attribute in
single-supply applications.

A complementary-symmetry MOS (CMOS) transistor-pair, capable of swinging the output voltage to within 10mV of either supply-voltage terminal (at very high values of load impedance), is employed as the output circuit.

The CA5260 Series circuits operate at supply voltages ranging from 4.5V to 16V, or ±2.25V to ±8V when using split supplies.

The CA5260, CA5260A have guaranteed specifications for 5V operation over the full military temperature range of -55°C to +125°C.

Key Features
  • MOSFET Input Stage provides
    • Very High ZI: 1.5TΩ (1.5 x 1012Ω) (Typ)
    • Very Low II: 5pA (Typ) at 15V Operation 2pA (Typ) at 5V Operation
  • Ideal for Single Supply Applications
  • Common Mode Input Voltage Range Includes Negative Supply Rail; Input Terminals Can be Swung 0.5V Below Negative Supply Rail
  • CMOS Output Stage Permits Signal Swing to Either (or Both) Supply Rails
  • CA5260A, CA5260 Have Full Military Temperature Range Guaranteed Specifications for V+ = 5V
  • CA5260A, CA5260 are Guaranteed to Operate Down to 4.5V for AOL
  • Fully Guaranteed to Operate from -55°C to +125°C at V+ = 5V, V- = GND
  • Pb-Free Available (RoHS Compliant)
Applications
  • Ground Referenced Single Supply Amplifiers
  • Fast Sample-Hold Amplifiers
  • Long Duration Timers/Monostables
  • Ideal Interface with Digital CMOS
  • High Input Impedance Wideband Amplifiers
  • Voltage Followers (e.g., Follower for Single Supply D/A Converter)
  • Voltage Regulators (Permits Control of Output Voltage Down to 0V)
  • Wien Bridge Oscillators
  • Voltage Controlled Oscillators
  • Photo Diode Sensor Amplifiers
  • 5V Logic Systems
  • Microprocessor Interface

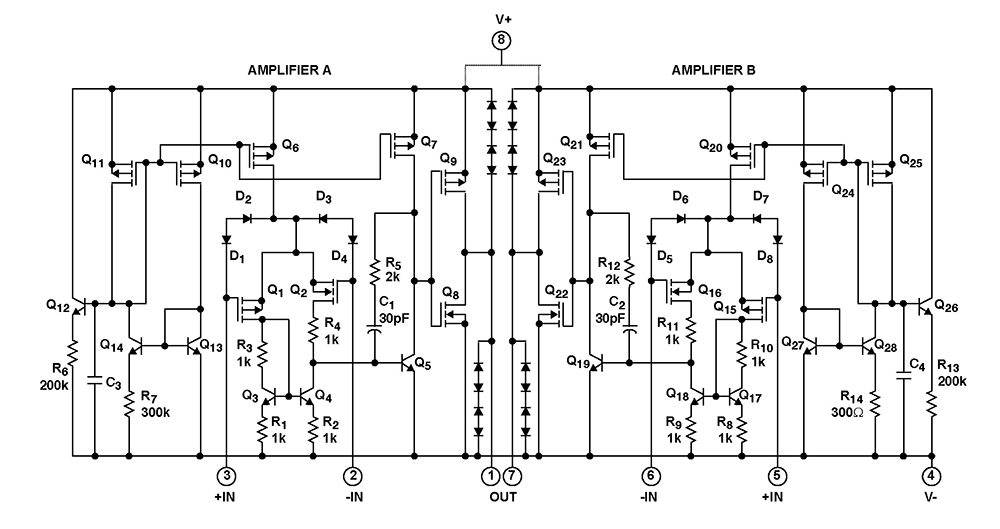

Typical Diagram
Datasheets
TitleTypeUpdatedSizeOther Languages
CA5260, CA5260A DatasheetPDF14 Nov 2014665 KB
Order Information
Part NumberPackage TypeWeight(g)PinsMSL RatingPeak Temp (°C)RoHS Status
CA5260E8 Ld PDIP0.548N/ANA
CA5260M8 Ld SOIC0.07281240
CA5260M968 Ld SOIC T+R0.0728240
CA5260MZ8 Ld SOIC0.07281260RoHS
CA5260MZ968 Ld SOIC T+R0.07281260RoHS
CA5260, CA5260A Datasheet 14 Nov 2014
