EL7155: High Performance Pin Driver

The EL7155 high performance pin driver with 3-state is suited to many ATE and level-shifting applications. The 3.5A peak drive capability makes this part an excellent choice when driving high capacitance loads.

Output pins OUTH and OUTL are connected to input pins VH and VL respectively, depending on the status of the IN pin. One of the output pins is always in tri-state, except when the OE pin is low, in which case both outputs are in tri-state mode. The isolation of the output FETs from the power supplies enables VH and VL to be set independently, enabling level-shifting to be implemented.

This pin driver has improved performance over existing pin drivers. It is specifically designed to operate at voltages down to 0V across the switch elements while maintaining good speed and ON-resistance characteristics.

Available in an 8 Ld SOIC package, the EL7155 is specified for operation over the full -40°C to +85°C temperature range.

Key Features
  • Clocking speeds up to 40MHz
  • 15ns tr/tf at 2000pF CLOAD
  • 0.5ns rise and fall times mismatch
  • 0.5ns tON-tOFF prop delay mismatch
  • 3.5pF typical input capacitance
  • 3.5A peak drive
  • Low ON-resistance of 3.5Ω
  • High capacitive drive capability
  • Operates from 4.5V up to 16.5V
  • Pb-free (RoHS compliant)
Applications
  • ATE/burn-in testers
  • Level shifting
  • IGBT drivers
  • CCD drivers

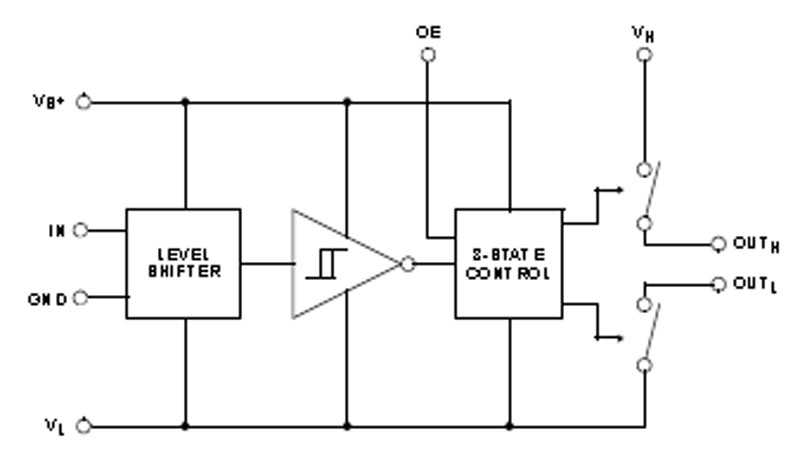

Typical DiagramProduct Image
Application Notes
TitleTypeUpdatedSizeOther Languages
AN1108: Applying Power MOSFET DriversPDF13 Nov 2014112 KB
Datasheets
TitleTypeUpdatedSizeOther Languages
EL7155 DatasheetPDF20 Nov 2014361 KB
Tech Briefs
TitleTypeUpdatedSizeOther Languages
TB458: Converting a Fixed PWM to an Adjustable PWMPDF19 Nov 2014147 KB
Order Information
Part NumberPackage TypeWeight(g)PinsMSL RatingPeak Temp (°C)RoHS Status
EL7155CN8 Ld PDIP0.548N/ANA
EL7155CS8 Ld SOIC0.07281240
EL7155CS-T138 Ld SOIC T+R0.07281240
EL7155CS-T78 Ld SOIC T+R0.07281240
EL7155CSZ8 Ld SOIC0.07283260RoHS
EL7155CSZ-T138 Ld SOIC T+R0.07283260RoHS
EL7155CSZ-T78 Ld SOIC T+R0.07283260RoHS
EL7155CSZ-T7A8 Ld SOIC T+R0.07283260RoHS
EL7155C-EVALN/A
EL7155CS-EVALN/A
