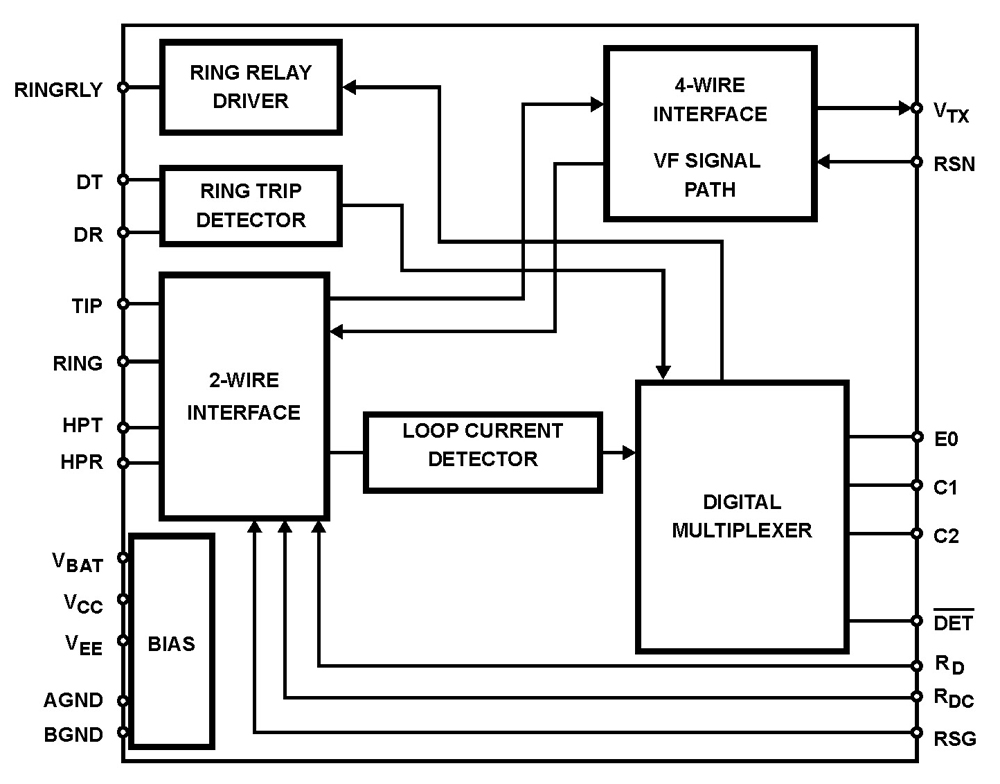

The HC5515 is a subscriber line interface circuit which is interchangeable with Ericsson's PBL3860 for distributed central office applications. Enhancements include immunity to circuit latch-up during hot plug and absence of false signaling in the presence of longitudinal currents.
The HC5515 is fabricated in a High Voltage Dielectrically Isolated (DI) Bipolar Process that eliminates leakage currents and device latch-up problems normally associated with junction isolated ICs. The elimination of the leakage currents results in improved circuit performance for wide temperature extremes. The latch free benefit of the DI process guarantees operation under adverse transient conditions. This process feature makes the HC5515 ideally suited for use in harsh outdoor environments.
Key Features
- DI Monolithic High Voltage Process
- Programmable Current Feed (20mA to 60mA)
- Programmable Loop Current Detector Threshold and Battery Feed Characteristics
- Ring Trip Detection
- Compatible with Ericsson's PBL3860
- Thermal Shutdown
- On-Hook Transmission
- Wide Battery Voltage Range (-24V to -58V)
- Low Standby Power
- -40°C to 85°C Ambient Temperature Range
- Pb-Free Plus Anneal Available (RoHS Compliant)
Applications
- Digital Loop Carrier Systems
- Pair Gain
- Fiber-In-The-Loop ONUs
- POTS
- Wireless Local Loop
- PABX
- Hybrid Fiber Coax
Datasheets| Title | Type | Updated | Size | Other Languages |
|---|
| HC5515 Datasheet | PDF | 15 Jul 2015 | 490 KB | |
Order Information| Part Number | Package Type | Weight(g) | Pins | MSL Rating | Peak Temp (°C) | RoHS Status |
|---|
|
| HC5515CM | 28 Ld PLCC | 1.16 | 28 | 3 | 225 | |
|
|
| HC5515CMZ | 28 Ld PLCC | 1.16 | 28 | 3 | 245 | RoHS |
|
|
