ISL28118M: 40V Extended Temperature Range, Precision Single-Supply, Rail-to-Rail Output, Operational Amplifier

The ISL28118M is a single, low-power precision amplifier optimized for single-supply applications over the extended temperature range of -55°C to +125°C. This device features a common mode input voltage range extending to 0.5V below the V- rail, a rail-to-rail differential input voltage range for use as a comparator, and rail-to-rail output voltage swing, which makes it ideal for single-supply applications where input operation at ground is important.

The ISL28118M features low power, low offset voltage, and low temperature drift, making it the ideal choice for applications requiring both high DC accuracy and AC performance. The op amp is designed to operate over a single supply range of 3V to 40V or a split supply voltage range of +1.8V/-1.2V to ±20V. The combination of precision and small footprint provides the user with outstanding value and flexibility relative to similar competitive parts.

Applications include precision instrumentation, data acquisition, precision power supply controls, and industrial controls.

The ISL28118M is offered in the 8 Ld MSOP package and operate over the extended temperature range of -55°C to +125°C.

Key Features
  • Rail-to-rail output: <10mV
  • Below-ground (V-) input capability to -0.5V
  • Rail-to-rail input differential voltage range for comparator applications
  • Single-supply range: 3V to 40V
  • Low current consumption: 850µA
  • Low noise voltage: 5.6nV/√Hz
  • Low noise current: 355fA/√Hz
  • Low input offset voltage: 150µV Max.
  • Superb offset voltage temperature drift: 1.2µV/°C, Max.
  • Operating temperature range: -55°C to +125°C
  • No phase reversal
Applications
  • Precision instruments
  • Medical instrumentation
  • Data acquisition
  • Power supply control
  • Industrial process control

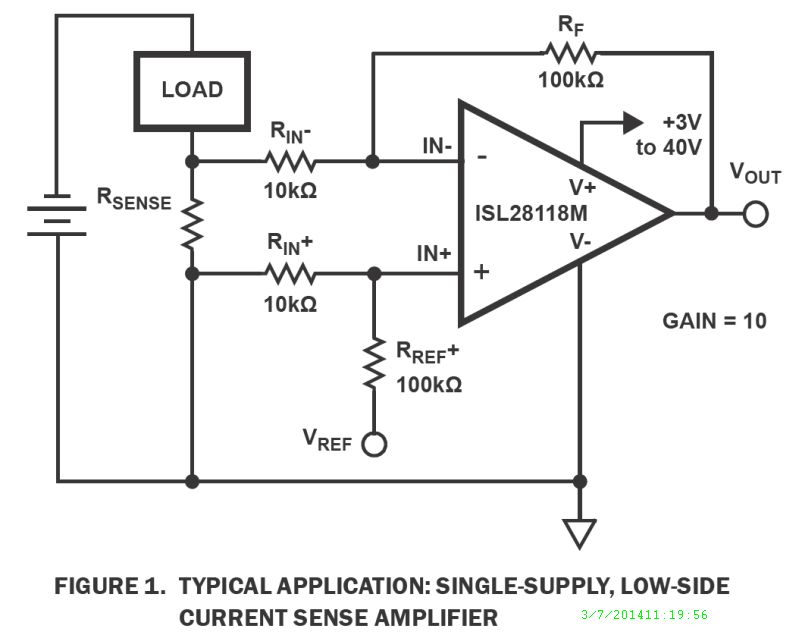

Typical Diagram
Datasheets
TitleTypeUpdatedSizeOther Languages
ISL28118M DatasheetPDF17 Nov 20141.05 MB
Order Information
Part NumberPackage TypeWeight(g)PinsMSL RatingPeak Temp (°C)RoHS Status
ISL28118MUZ8 Ld MSOP0.02582260RoHS
ISL28118MUZ-T138 Ld MSOP T+R0.02582260RoHS
ISL28118MUZ-T78 Ld MSOP T+R0.02582260RoHS
ISL28118MUZ-T7A8 Ld MSOP T+R0.02582260RoHS
ISL28118M Datasheet 17 Nov 2014
8 Ld MSOP T+R ISL28118M
