The ISL6140 is an 8 Ld, negative voltage hot plug controller that allows a board to be safely inserted and removed from a live backplane. Inrush current is limited to a programmable value by controlling the gate voltage of an external N-channel pass transistor. The pass transistor is turned off if the input voltage is less than the undervoltage threshold, or greater than the overvoltage threshold. A programmable electronic circuit breaker protects the system against shorts. The active low PWRGD signal can be used to directly enable a power module (with a low enable input).
The ISL6150 is the same part, but with an active high PWRGD signal.

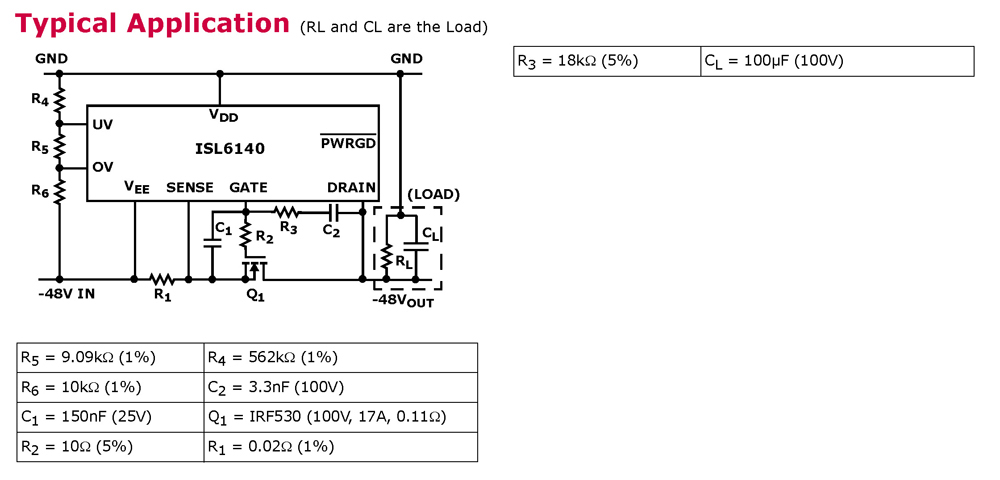

Key Features
- Low Side External NFET Switch
- Operates from -10V to -80V (-100V absolute max rating) or +10V to +80V (+100V absolute max rating)
- Programmable Inrush Current
- Programmable Electronic Circuit Breaker (overcurrent shutdown)
- Programmable Overvoltage Protection
- Programmable Undervoltage Lockout
- Power Good Control Output
- PWRGD Active High: (H Version) ISL6150
- PWRGD active Low: (L Version) ISL6140
- Pb-free available (RoHS compliant)
Applications
- VoIP (Voice over Internet Protocol) Servers
- Telecom systems at -48V
- Negative Power Supply Control
- +24V Wireless Base Station Power
Order Information| Part Number | Package Type | Weight(g) | Pins | MSL Rating | Peak Temp (°C) | RoHS Status |
|---|
|
| ISL6150CB | 8 Ld SOIC | 0.072 | 8 | 1 | 240 | |
|
|
| ISL6150CB-T | 8 Ld SOIC T+R | 0.072 | 8 | 1 | 240 | |
|
|
| ISL6150CBZ | 8 Ld SOIC | 0.072 | 8 | 1 | 260 | RoHS |
|
|
| ISL6150CBZ-T | 8 Ld SOIC T+R | 0.072 | 8 | 1 | 260 | RoHS |
|
|
| ISL6150IB | 8 Ld SOIC | 0.072 | 8 | 1 | 240 | |
|
|
| ISL6150IB-T | 8 Ld SOIC T+R | 0.072 | 8 | 1 | 240 | |
|
|
| ISL6150IBZ | 8 Ld SOIC | 0.072 | 8 | 1 | 260 | RoHS |
|
|
| ISL6150IBZ-T | 8 Ld SOIC T+R | 0.072 | 8 | 1 | 260 | RoHS |
|
|
|
|
| ISL6140/50EVAL1 | | | | N/A | | |
|
|
