ISL90842: Quad Digitally Controlled Potentiometers (XDCP™)

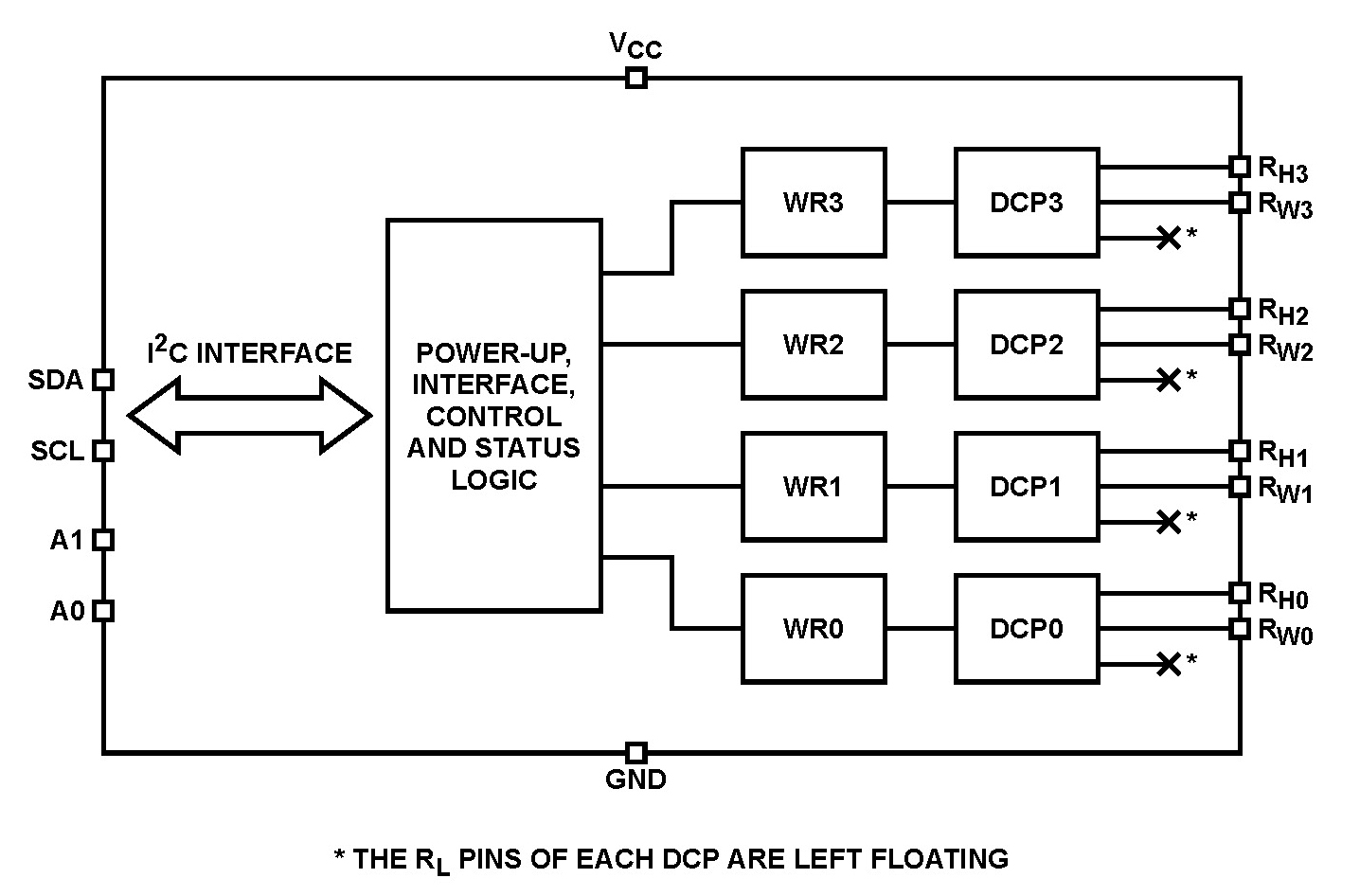

The ISL90842 integrates four digitally controlled potentiometers (DCP) configured as variable resistors on a monolithic CMOS integrated circuit.
The digitally controlled potentiometers are implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface. Each potentiometer has an associated Wiper Register (WR) that can be directly written to and read by the user. The contents of the WR controls the position of the wiper.
The DCPs can be used as two-terminal variable resistors in a wide variety of applications including control, parameter adjustments, and signal processing.
Key Features
- Four variable resistors in one package
- 256 resistor taps - 0.4% resolution
- I2C serial interface
- Wiper resistance: 70Ω typical @ 3.3V
- Standby current <5µA max
- Power supply: 2.7V to 5.5V
- 50kΩ, 10kΩ total resistance
- 14 Lead TSSOP
- Pb-free plus anneal available (RoHS compliant)
| Title | Type | Updated | Size | Other Languages |
|---|---|---|---|---|
| AN1173: DC/DC Module Trim with Digital Potentiometers | 22 Apr 2015 | 258 KB | ||
| AN9705: A Theoretical View of Coherent Sampling | 13 Nov 2014 | 25 KB | ||
| AN9675: Coherent and Windowed Sampling with A/D Converters | 13 Nov 2014 | 160 KB | ||
| AN1699: Digital Control Potentiometers Offer Hidden Benefits for Many Designs | 13 Nov 2014 | 129 KB | ||
| AN1425: Get Precision Performance from a Digitally Controlled Potentiometer (DCP) | 13 Nov 2014 | 56 KB | ||
| AN002: Principles of Data Acquisition and Conversion | 13 Nov 2014 | 257 KB |
| Title | Type | Updated | Size | Other Languages |
|---|---|---|---|---|
| ISL90842 Datasheet | 17 Nov 2014 | 670 KB |
| Title | Type | Updated | Size | Other Languages |
|---|---|---|---|---|
| DCP Evaluation Board Software v5.2.0 | EXE | 20 Mar 2015 | 2.73 MB |
| Title | Type | Updated | Size | Other Languages |
|---|---|---|---|---|
| TB458: Converting a Fixed PWM to an Adjustable PWM | 19 Nov 2014 | 147 KB |
| Title | Type | Updated | Size | Other Languages |
|---|---|---|---|---|
| Digital Potentiometer (DCP) Evaluation USB Kit User Guide | 12 May 2015 | 330 KB |
| Part Number | Package Type | Weight(g) | Pins | MSL Rating | Peak Temp (°C) | RoHS Status |
|---|---|---|---|---|---|---|
| ISL90842UIV1427 | 14 Ld TSSOP | 0.054 | 14 | 240 | ||
| ISL90842UIV1427Z | 14 Ld TSSOP | 0.054 | 14 | 2 | 260 | RoHS |
| ISL90842UIV1427Z-TK | 14 Ld TSSOP T+R | 0.054 | 14 | 2 | 260 | RoHS |
| ISL90842WIV1427 | 14 Ld TSSOP | 0.054 | 14 | 240 | ||
| ISL90842WIV1427Z | 14 Ld TSSOP | 0.054 | 14 | 2 | 260 | RoHS |
| ISL90842WIV1427Z-TK | 14 Ld TSSOP T+R | 0.054 | 14 | 2 | 260 | RoHS |
