The ISL9444 is a triple-output synchronous buck controller that integrates three PWM controllers which are fully featured and designed to provide multi-rail power for use in products such as cable and satellite set-top boxes, VoIP gateways, cable modems, and other home connectivity products as well as a variety of industrial and general purpose applications. Each output is adjustable down to 0.7V. The PWMs are synchronized at 180° out-of-phase, thus reducing the input RMS current and ripple voltage.
The ISL9444 offers independent power-good indicators, programmable soft-start and tracking functions for ease of supply rail sequencing and integrated UV/OV/OC/OT protections in a space conscious 5mmx5mm QFN package.
Switching frequency can be set between 200kHz and 1200kHz using a resistor. The ISL9444 can be synchronized to another ISL9444 to reduce any beat frequency.
The ISL9444 utilizes internal loop compensation to keep minimum peripheral components for a compact design and a low total solution cost. These devices are implemented with current mode control with feed-forward to cover various applications even with fixed internal compensations.

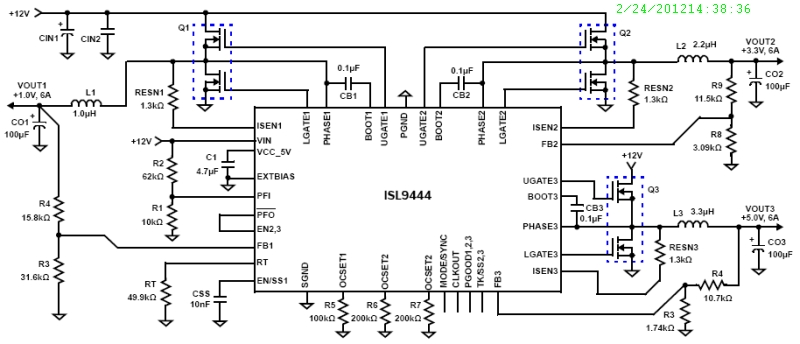

Key Features
- Three Integrated Synchronous Buck PWM Controllers
- Internal Bootstrap Diodes
- Independent Programmable Output Voltage
- Independent Power-Good Indicators, Soft-Starting and Tracking
- Power Failure Monitor
- Light Load Efficiency Enhancement
- Low Ripple Diode Emulation Mode with Pulse Skipping
- Supports Pre-Biased Output
- Programmable Frequency: 200kHz to 1200kHz
- Adaptive Shoot-through Protection
- Out-of-Phase Switching (0°/180°/0°)
- No External Current Sense Resistor
- Uses Lower MOSFET’s rDS(ON)
- Complete Protection
- Overcurrent, Overvoltage, Over-Temperature
- Wide Input Voltage Range: 4.5V to 28V
- Pb-Free (RoHS Compliant)
Applications
- VoX Gateway Devices
- NAS/SAN Devices
- ATX Power Supplies
Order InformationPart Number | Package Type | Weight(g) | Pins | MSL Rating | Peak Temp (°C) | RoHS Status |
---|
|
ISL9444IRZ | 40 Ld QFN | 0.074 | 40 | 2 | 260 | RoHS |
|
|
ISL9444IRZ-T | 40 Ld QFN T+R | 0.074 | 40 | 2 | 260 | RoHS |
|
|
ISL9444IRZ-T7A | 40 Ld QFN T+R | 0.074 | 40 | 2 | 260 | RoHS |
|
|
ISL9444CRZ | 40 Ld QFN | 0.074 | 40 | 2 | 260 | RoHS |
|
|
ISL9444CRZ-T | 40 Ld QFN T+R | 0.074 | 40 | 2 | 260 | RoHS |
|
|
ISL9444CRZ-T7A | 40 Ld QFN T+R | 0.074 | 40 | 2 | 260 | RoHS |
|
|
|
|
ISL9444EVAL3Z | | | | N/A | | RoHS |
|
|
ISL9444EVAL1Z | | | | N/A | | RoHS |
|
|
