The TW8816 is a highly integrated multi-purpose LCD display solution for both analog and digital panels. To reduce BOM cost, TW8816 integrates an 8-bit MCU and a CCFL or LED controller. Through multiple input ports, TW8816 can directly display video and graphic content from a variety of devices including TV Tuners, DVD players, back-up cameras, DTV/DMB receivers and navigation/GPS receivers.

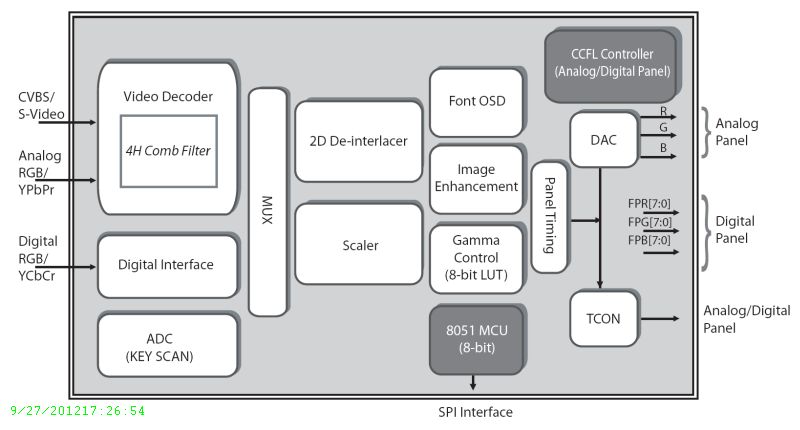

Key Features
- Supports analog inputs including CVBS, S-Video,YPbPr and RGB signals and digital inputs including24 bit RGB and 8/16/24 bit YCbCr. Interlaced and progressive ITU 656 inputs are supported.
- Supports both digital & analog panels up to WXGA resolutions
- Integrates cost saving features including LED controller,CCFL controller, programmable panel offset control and on-chip 8 bit 8051 MCU with SPI interface
- Embedded Image Enhancement
- Programmable CTI, hue, brightness, saturation, contrast & sharpness control
- Black/White Stretch
- Programmable favorite color enhancement- up to three colors
- Programmable Gamma Correction tablesAnalog Video Decoder
- NTSC (M, 4.43) and PAL (B, D, G, H, I, M, N, N combination), PAL (60), SECAM with automatic format detection
- Advanced synchronization processing for VCR trick play signal
- Three 10-bit ADCs and analog clamping circuit.
- Built-in analog anti-aliasing filter
- Fully programmable static gain or automatic gain control for the Y or CVBS channel
- Programmable white peak control for the Y or CVBS channel
- Software selectable analog inputs allows any of the following
- Up to 4 composite video
- UP to 3 S-Video
- Up to 2 analog YPbPr and RGB
- 4-H adaptive comb filter Y/C separation
- PAL delay line for color phase error correction
- Digital PLL for both color and horizontal locking
- Programmable hue, brightness, saturation, contrast, sharpness, Gamma control, and noise suppression
- Automatic color control and color killer Analog RGB / YPbPr Input
- Built-in sync processor for SOG support
- Built-in Line-locked PLL
- Built-in input measurement function
- Support directly sampling up to SVGA 8/16/24-bits Digital RGB/YCbCr Inputs
- Allows connection to 8/16/24-bit RGB/YCbCr
- Support both interlaced and progressive ITU 656
Applications
- Navigation + DVD + TV
- Back up Camera
- Rear Seat Entertainment
- Car TV
- Portable DVD
- PMP
- Portable TV
- Door Phone
- Photo Frame
- DMB TV
- Baby Monitor
- Home Audio
- In Flight Entertainment
Order Information| Part Number | Package Type | Weight(g) | Pins | MSL Rating | Peak Temp (°C) | RoHS Status |
|---|
|
| TW8816-BB3-GR | 144 Ld BGA | 0.069 | 144 | 3 | 260 | RoHS |
|
|
| TW8816-BB3-GRT | 144 Ld BGA T+R | 0.069 | 144 | 3 | 260 | RoHS |
|
|
| TW8816-LB3-GR | 128 Ld LQFP | 0.95 | 128 | 3 | 260 | RoHS |
|
|
| TW8816-LB3-GRS | 128 Ld LQFP | 0.95 | 128 | 3 | 260 | RoHS |
|
|
| TW8816-LB3-GRST | 128 Ld LQFP T+R | 0.95 | 128 | 3 | 260 | RoHS |
|
|
| TW8816-LB3-GRT | 128 Ld LQFP T+R | 0.95 | 128 | 3 | 260 | RoHS |
|
|
| TW8816-LB3-CR | 128 Ld LQFP | 0.95 | 128 | 3 | 260 | RoHS |
|
|
