LT1993-10 - 700MHz Low Distortion, Low Noise Differential Amplifier/ADC Driver (AV = 10V/V)

The LT1993-10 is designed to meet the demanding requirements of communications transceiver applications. It can be used as a differential ADC driver, a general-purpose differential gain block, or in any other application requiring differential drive. The LT1993-10 can be used in data acquisition systems required to function at frequencies down to DC.

The LT1993-10 operates on a 5V supply and consumes 100mA. It comes in a compact 16-lead 3 × 3 QFN package and operates over a -40°C to 85°C temperature range.

Features

700MHz -3dB Bandwidth
Fixed Gain of 10V/V (20dB)
Low Distortion: 40dBm OIP3, -70dBc HD3 (70MHz 2VP-P) 50.5dBm OIP3, -91dBc (10MHz 2VP-P)
Low Noise: 12.7dB NF, en = 1.9nV/√Hz
Differential Inputs and Outputs
Additional Filtered Outputs
Adjustable Output Common Mode Voltage
DC- or AC-Coupled Operation
Minimal Support Circuitry Required

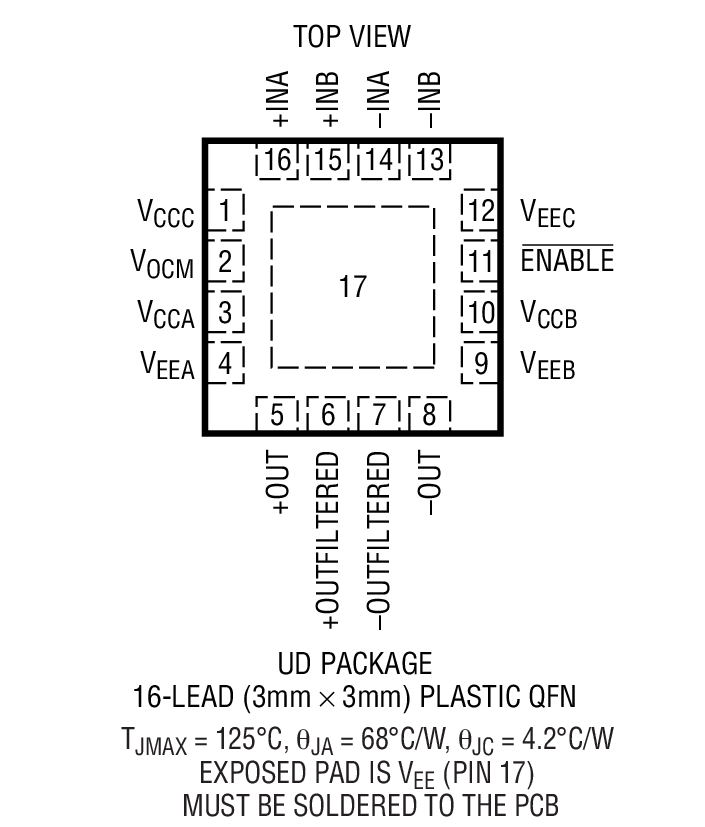

Small 0.75mm Tall 16-Lead 3 × 3 QFN Package

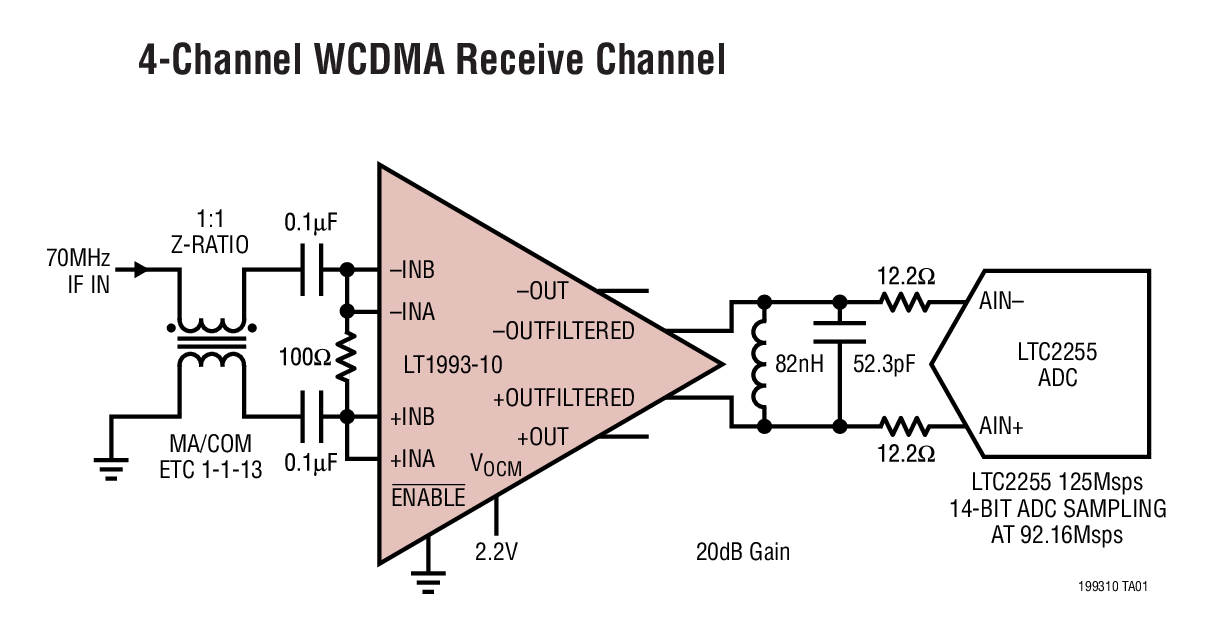

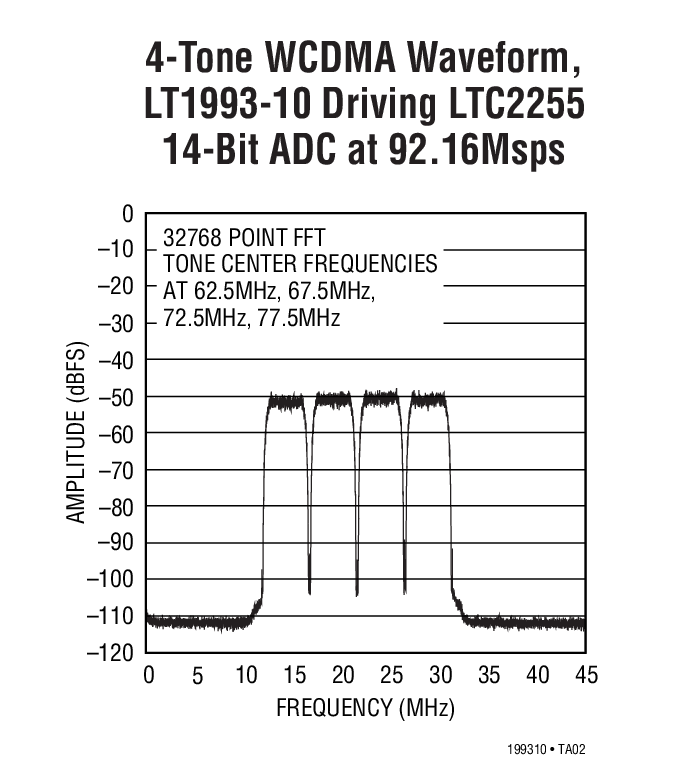

Typical Application

Applications

Differential ADC Driver for: Imaging Communications
Differential Driver/Receiver
Single Ended to Differential Conversion
Differential to Single Ended Conversion
Level Shifting
IF Sampling Receivers
SAW Filter Interfacing/Buffering
