LT3667 - 40V 400mA Step-Down Switching Regulator with Dual Fault Protected LDOs

The LT®3667 is a monolithic triple power supply composed of a 400mA buck switching regulator and two 200mA low dropout linear regulators (LDOs).

The buck regulator includes a high efficiency switch, a boost diode, and the necessary oscillator, control and logic circuitry. Current mode topology is used for fast transient response and good loop stability. Low ripple Burst Mode operation maintains high efficiency at low output currents while keeping output ripple below 15mV in a typical application.

Each LDO supplies 200mA of output current with a typical dropout voltage of 340mV, and each LDO has an accurate resistor programmable current limit.

Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting and reverse current protection.

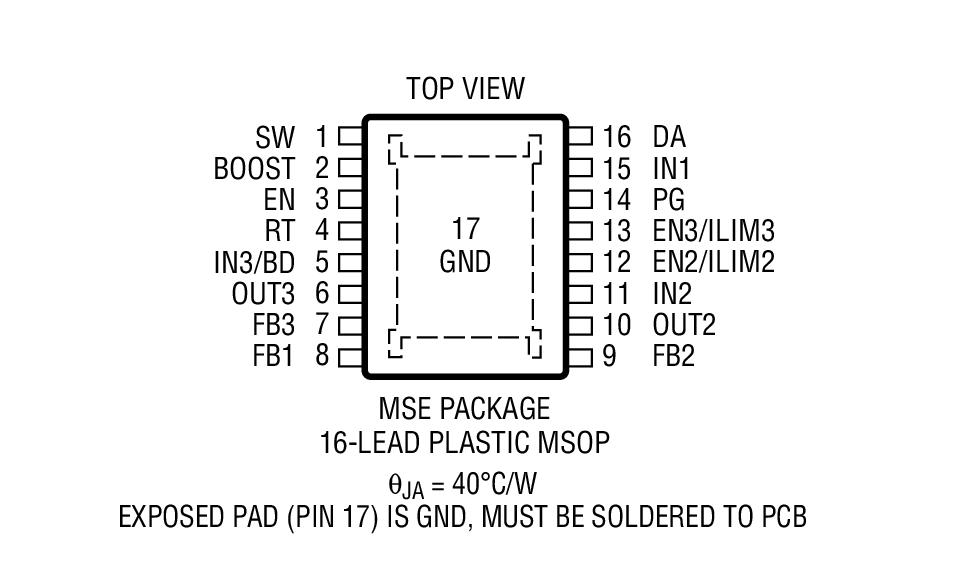

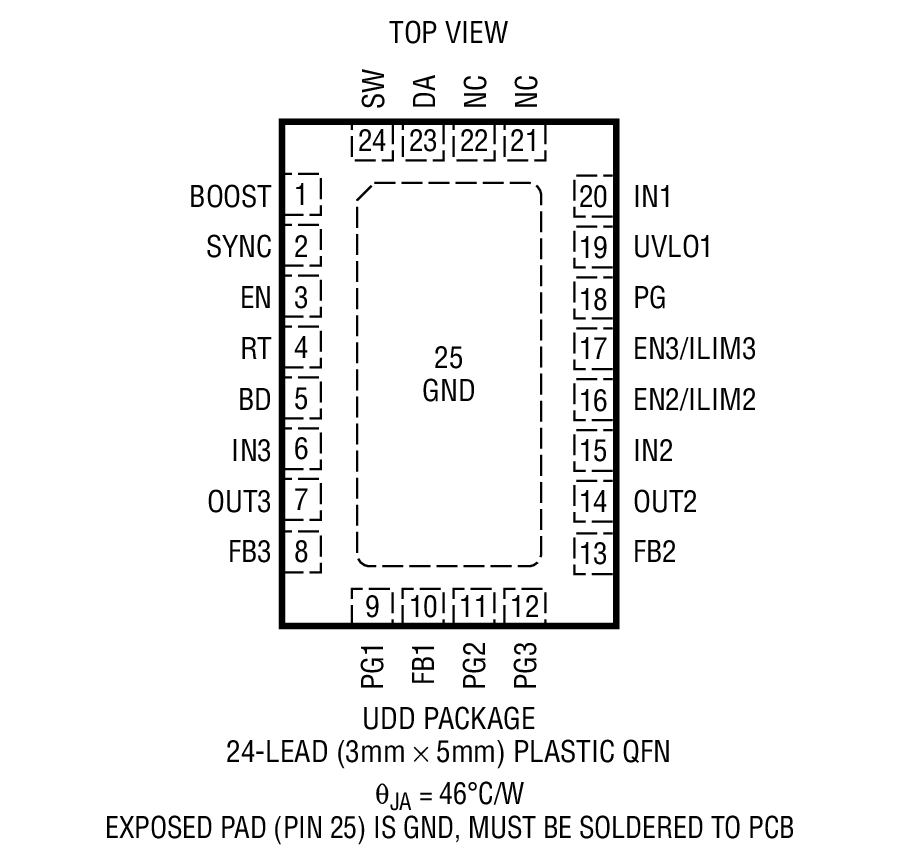

The LT3667 is available in a thermally-enhanced 16-Lead MSOP and a 24-Pin 3mm x 5mm QFN package with exposed pad for low thermal resistance.

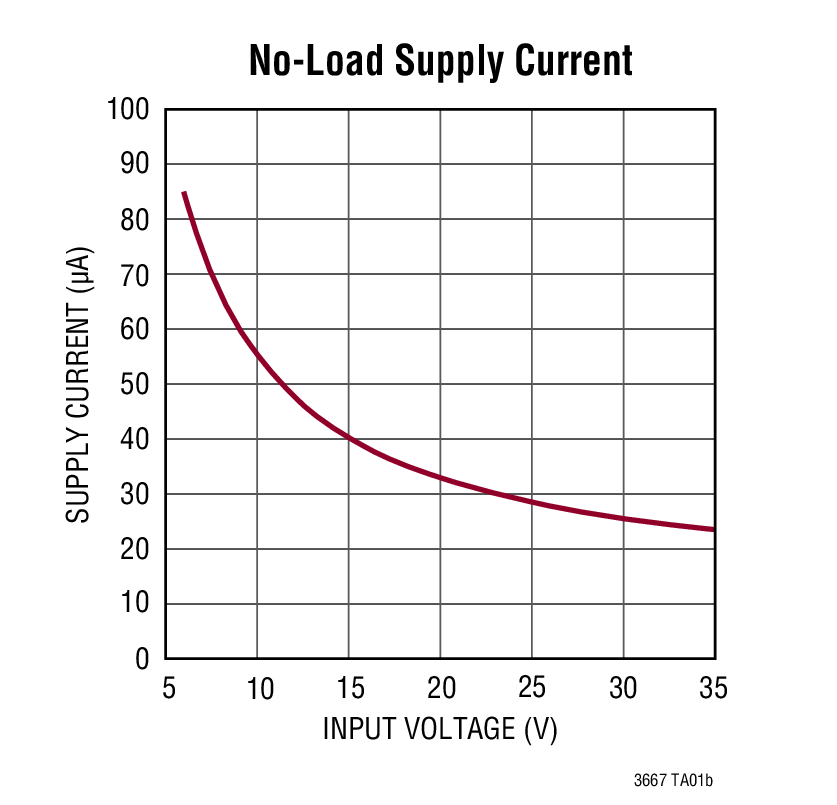

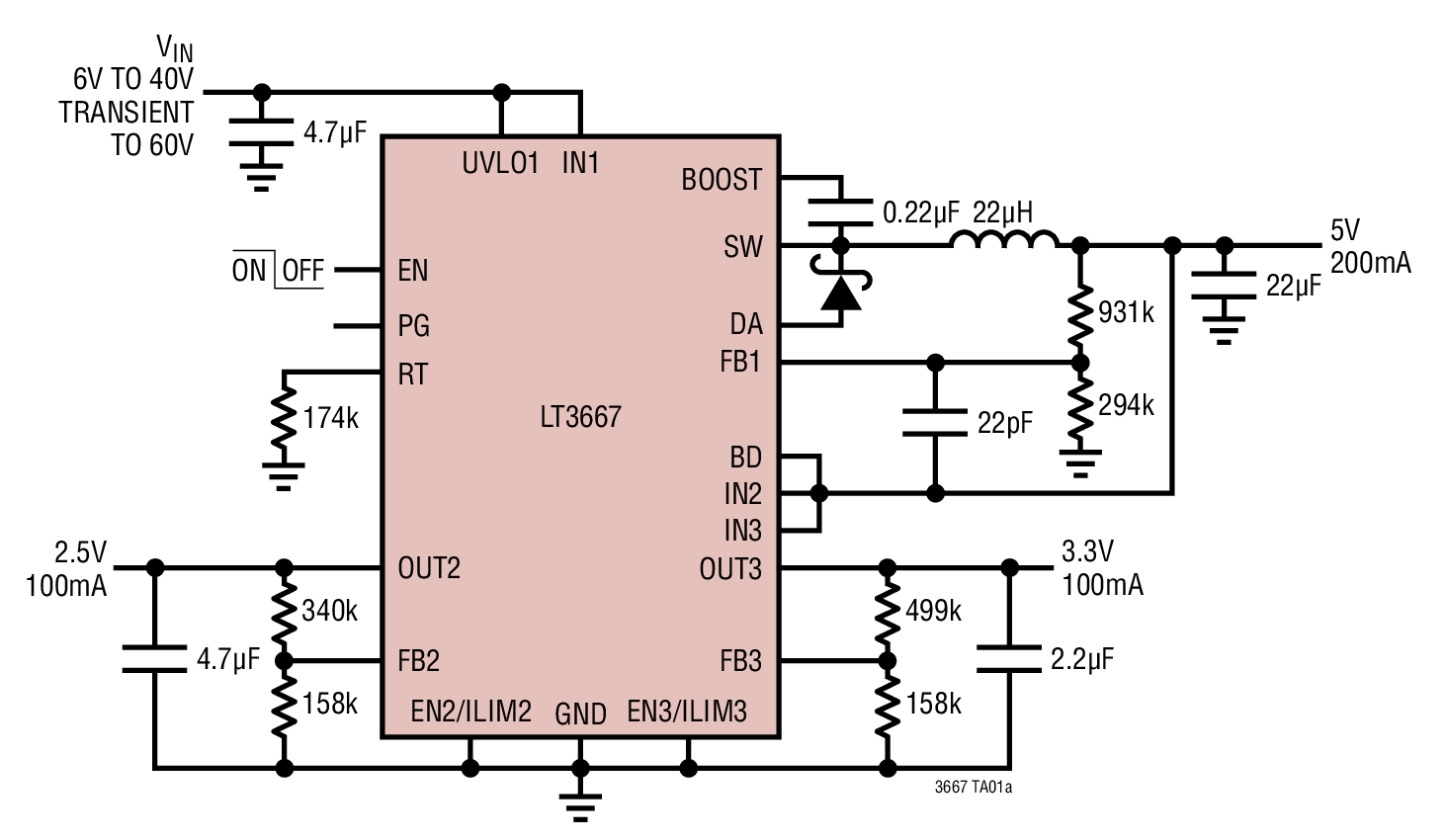

Features Triple Output Supply from a Single Input Requires Only One Inductor IQ = 50μA at 12VIN to 5V, 3.3V and 2.5V with No Load Buck Regulator: Low Ripple (<15mVP-P) Burst Mode Operation® 400mA Output with Internal Power Switch 4.3V to 40V Input Operation Range (60V Max) Dual Low Dropout Linear Regulators 200mA Outputs with Programmable Current Limits 1.6V to 45V Input Range Fault Protected to ±45V Adjustable 250kHz to 2.2MHz Switching Frequency Synchronizable Between 300kHz and 2.2MHz Programmable Undervoltage Lockout Power Good Indicators Available in a Thermally-Enhanced 16-Lead MSOP and 24-Lead (3mm × 5mm) QFN Packages Typical Application

Applications Automotive Battery Regulation Power for Portable Instrumentation Industrial Supplies Fault-Protected Sensor Supply Packaging
