LTC1345 - Single Supply V.35 Transceiver

The LTC®1345 is a single chip transceiver that provides the differential clock and data signals for a V.35 interface from a single 5V supply. Combined with an external resistor termination network and an LT®1134A RS232 transceiver for the control signals, the LTC1345 forms a complete low power DTE or DCE V.35 interface port operating from a single 5V supply. The LTC1345 features three current output differential transmitters, three differential receivers, and a charge pump. The transceiver can be configured for DTE or DCE operation or shut down using two Select pins. In the Shutdown mode, the supply current is reduced to 1µA. The transceiver operates up to 10Mbaud. All transmitters feature short-circuit protection and a Receiver Output Enable pin allows the receiver outputs to be forced into a high impedance state. Both transmitter outputs and receiver inputs feature ±10kV ESD protection. The charge pump features a regulated VEE output using three external 1µF capacitors.

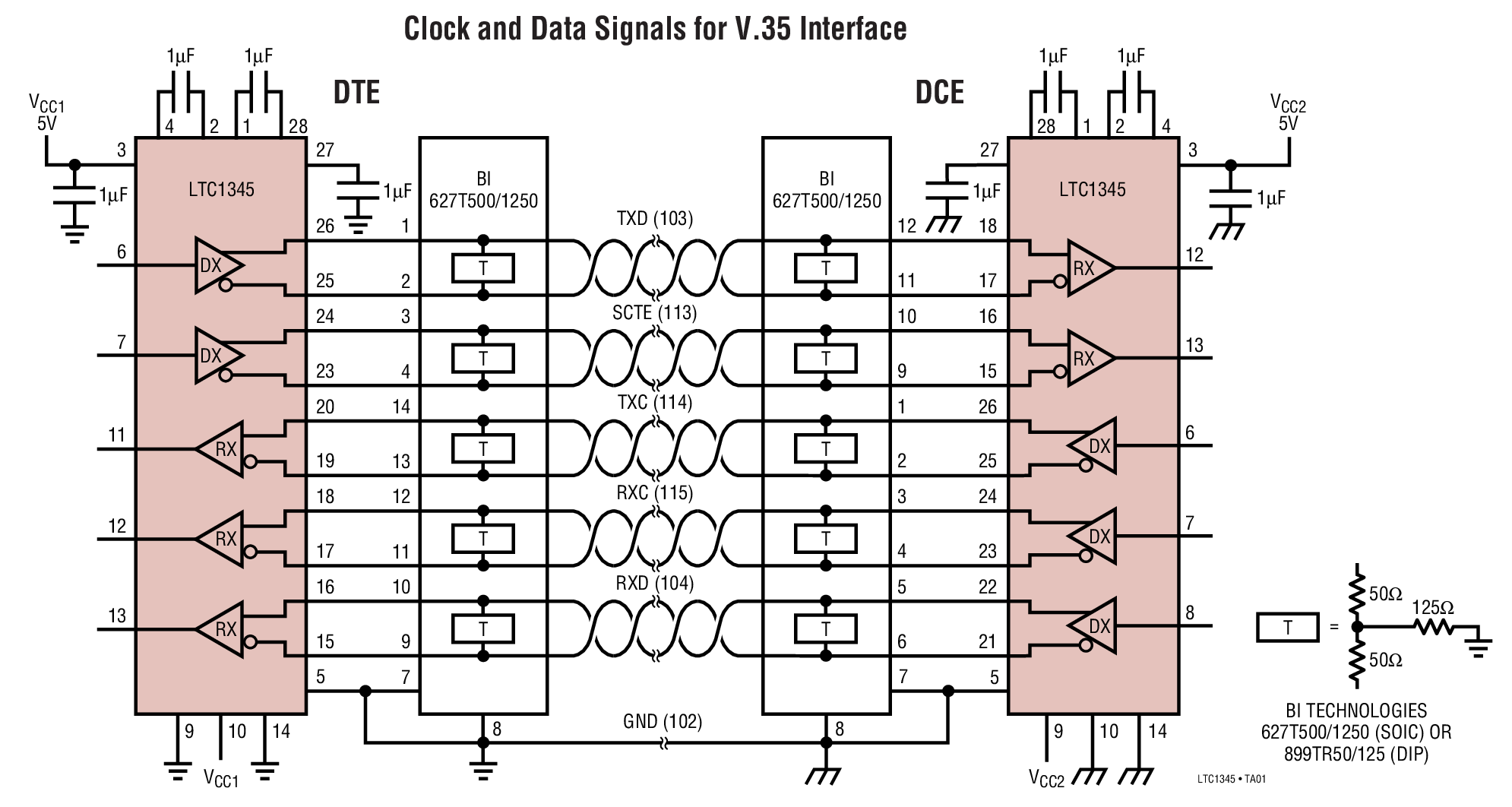

Features Single Chip Provides All V.35 Differential Clockand Data Signals Operates From Single 5V Supply Software Selectable DTE or DCE Configuration Transmitters and Receivers Will WithstandRepeated ±10kV ESD Pulses Shutdown Mode Reduces Icc to 1µA Typ 10MBaud Transmission Rate Transmitter Maintains High Impedance WhenDisabled, Shut Down, or with Power Off Meets CCITT V.35 Specification Transmitters are Short-Circuit Protected Typical Application

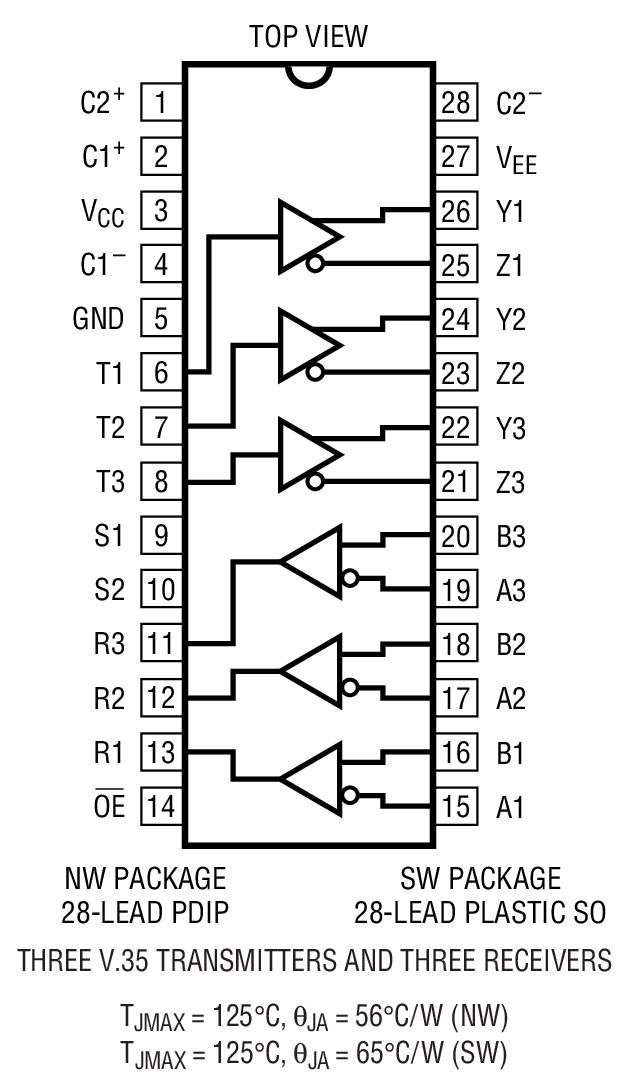

Applications Modems Telecommunications Data Routers Packaging
