Features- Ultralow Power: Typical Operating ICC = 6µA
- Short-Circuit/Thermal Protected
- Regulated 5V ±4% Output Voltage
- 2.7V to 5V Input Range
- No Inductors
- Very Low ICC in Shutdown: <1µA
- Output Current: 10mA (VIN >/=2.7V) 20mA (VIN >/=3V)
- Shutdown Disconnects Load from VIN
- Internal Oscillator: 700kHz
- Compact Application Circuit (<0.1 in2)
- 8-Pin MSOP and SO Packages

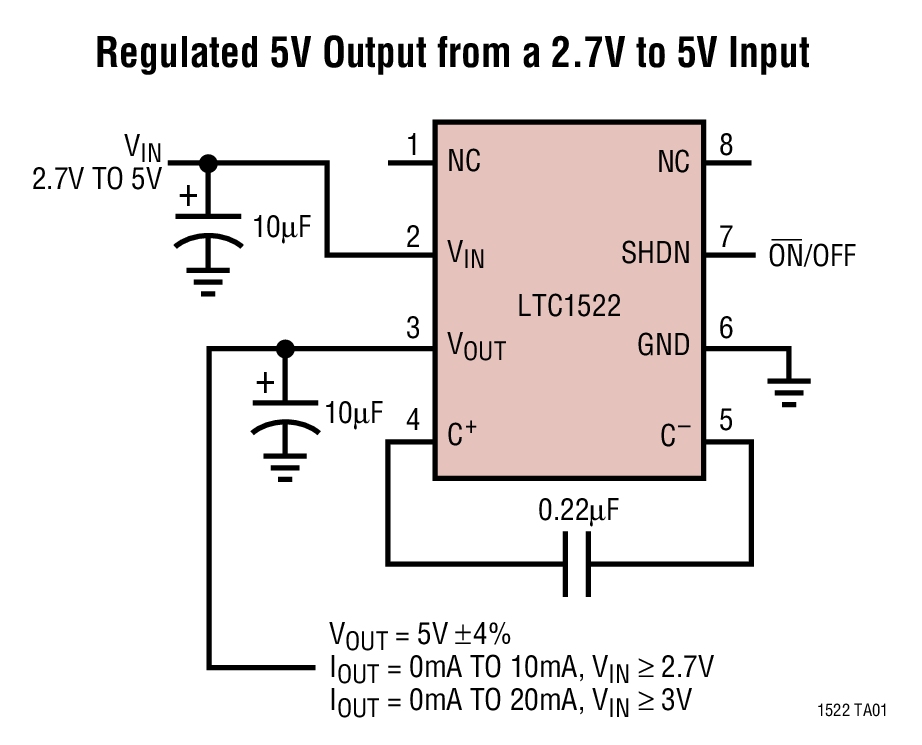

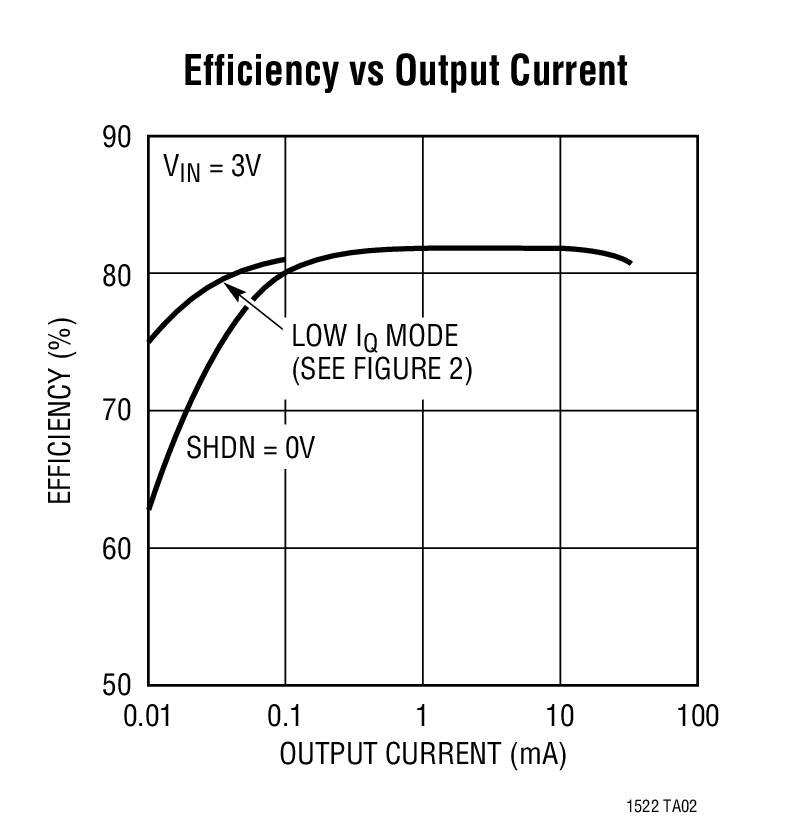

Typical Application
 | Applications- SIM Interface Supplies for GSM Cellular Telephones
- Li-Ion Battery Backup Supplies
- Local 3V to 5V Conversion
- Smart Card Readers
- PCMCIA Local 5V Supplies

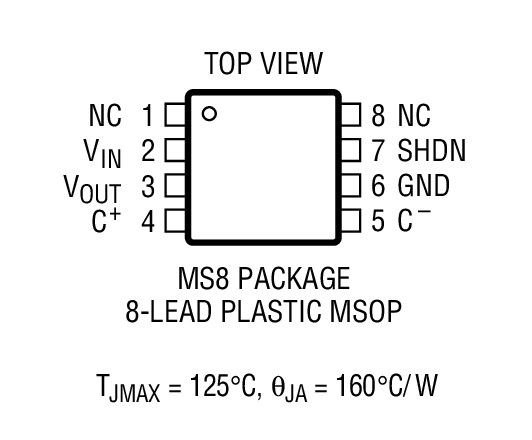

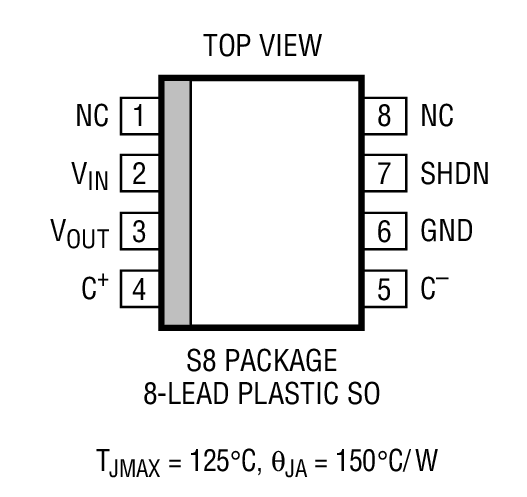

Packaging
 |
