Features- Regulated Negative Voltage from a Single Positive Supply
- Low Output Ripple: Less Than 1mVP-P Typ
- High Charge Pump Frequency: 900kHz Typ
- Small Charge Pump Capacitors: 0.1µF
- Requires Only Four External Capacitors
- Fixed -4.1V or Adjustable Output
- Shutdown Mode Drops Supply Current to < 1µA
- High Output Current: Up to 10mA, VCC = 5V
- Output Regulation: 5%
- Available in SO-8 and 16-Lead SSOP

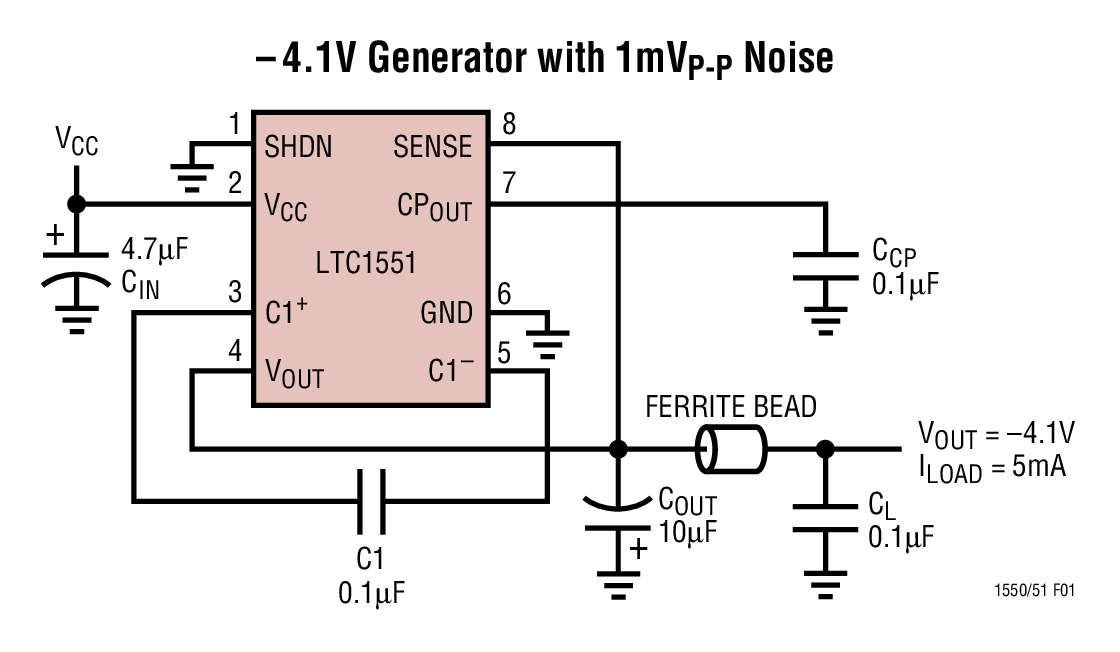

Typical Application![LTC1550 Typical Application](/image/linear/3808.png)

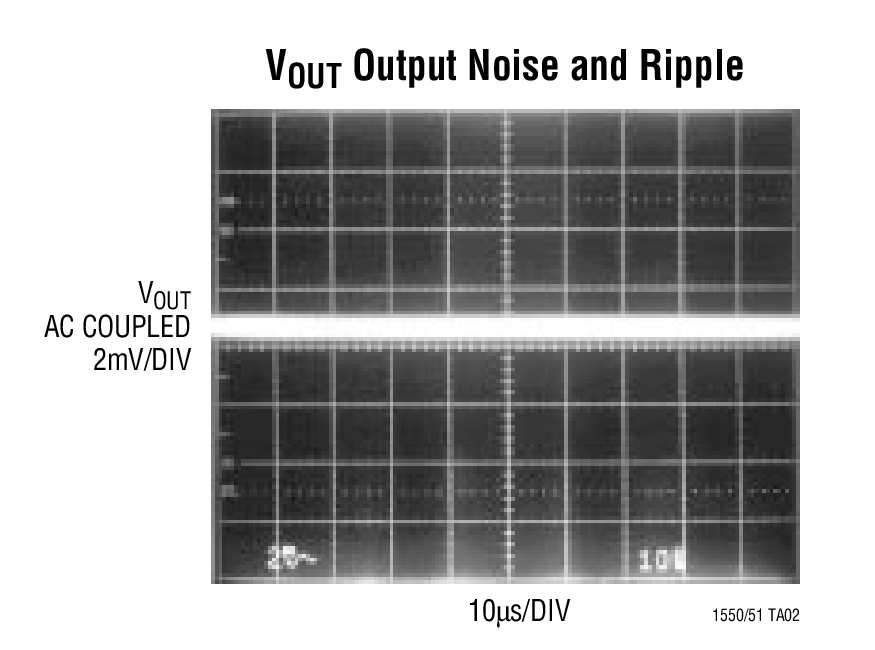

![LTC1550 Typical Application](/image/linear/3809.png) | Applications- GaAs FET Bias Generators
- Negative Supply Generators
- Battery-Powered Systems
- Single Supply Applications

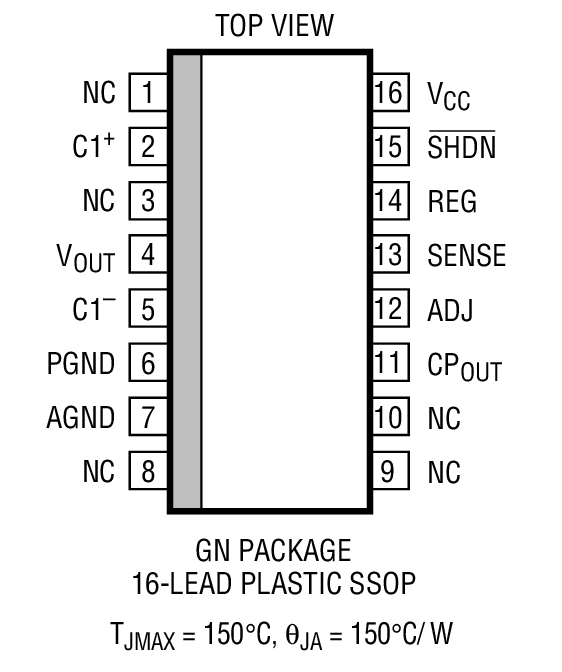

Packaging![LTC1550 Package Drawing](/image/linear/24906.png)
![LTC1550 Package Drawing](/image/linear/24907.png) |
