LTC3622 - 17V, Dual 1A Synchronous Step-Down Regulator with Ultralow Quiescent Current

The LTC®3622 is a dual 1A output, high efficiency synchronous monolithic step-down regulator capable of operating from input supplies up to 17V. The switching frequency is fixed to 1MHz or 2.25MHz with a ±50% synchronization range to an external clock. The regulator features ultralow quiescent current and high efficiency over a wide output voltage range.

The step-down regulators operate from an input voltage range of 2.7V to 17V and provide an adjustable output from 0.6V to VIN while delivering up to 1A of output current. A user-selectable mode input is provided to allow the user to trade off ripple noise for light load efficiency. Burst Mode® operation provides the highest efficiency at light loads, while pulse-skipping mode provides the lowest ripple noise. The switching regulators can be synchronized to an external clock. Furthermore, fixed VOUT options are available to eliminate the external feedback resistors.

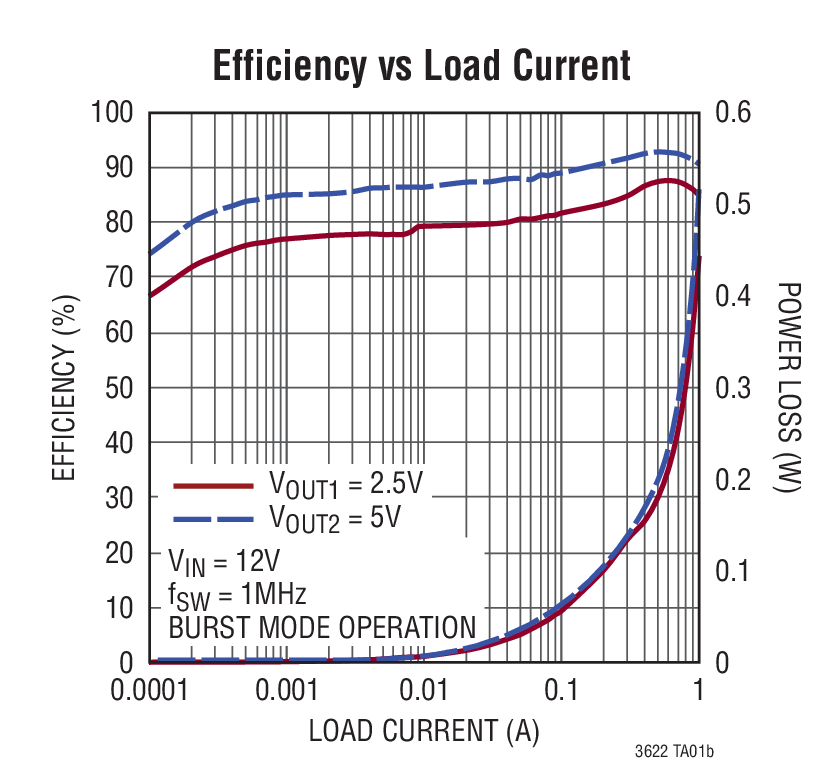

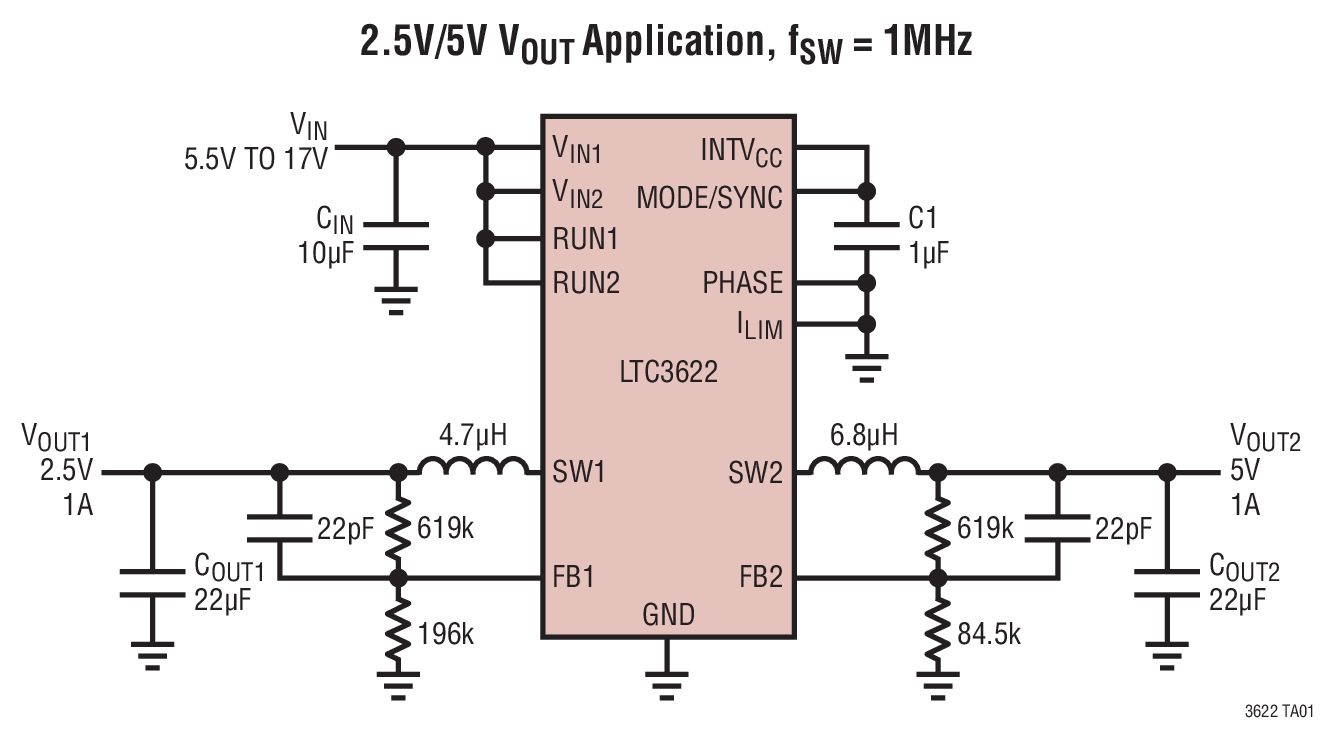

Features Dual Step-Down Outputs: 1A Per Channel Wide VIN Range: 2.7V to 17V Wide VOUT Range: 0.6V to VIN Up to 95% Efficiency No-Load IQ = 5μA with Both Channels Enabled; IQ < 4μA with Only One Channel Enabled High Efficiency, Low Dropout Operation (100% Duty Cycle) Constant Frequency (1MHz/2.25MHz) with External Frequency Synchronization ±1% Output Voltage Accuracy Current Mode Operation for Excellent Line and Load Transient Response Phase Shift Programmable with External Clock Selectable Current Limit Internal Compensation and Soft-Start Compact 14-Pin DFN (3mm × 4mm) and 16-Lead MSOP Packages Typical Application

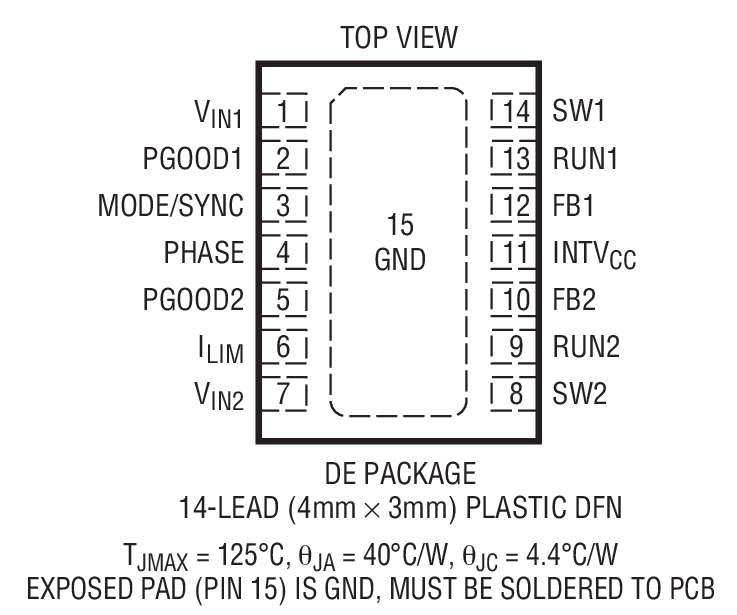

Applications Battery Powered Systems Point-of-Load Supplies Portable – Handheld Scanners Packaging

Order Information

Demo Boards
