LTC3803-3 - Constant Frequency Current Mode Flyback DC/DC Controller in ThinSOT

The LTC3803-3 is a constant frequency current mode flyback controller optimized for driving N-channel MOSFETs in high input voltage applications. Constant frequency operation is maintained down to very light loads, resulting in less low frequency noise generation over a wide range of load currents. Slope compensation can be programmed with an external resistor.

The LTC3803-3 provides ±1.5% output voltage accuracy and consumes only 240μA of quiescent current. Ground referenced current sensing allows LTC3803-3-based converters to accept input supplies beyond the LTC3803-3’s absolute maximum VCC. A micropower hysteretic start-up feature allows efficient operation at high input voltages. For simplicity, the LTC3803-3 can also be powered from a high VIN through a resistor, due to its internal shunt regulator. An internal undervoltage lockout shuts down the LTC3803-3 when the input voltage is too low to provide sufficient gate drive to the external MOSFET.

The LTC3803-3 is available in a low profile (1mm) 6-lead SOT-23 (ThinSOT) package.

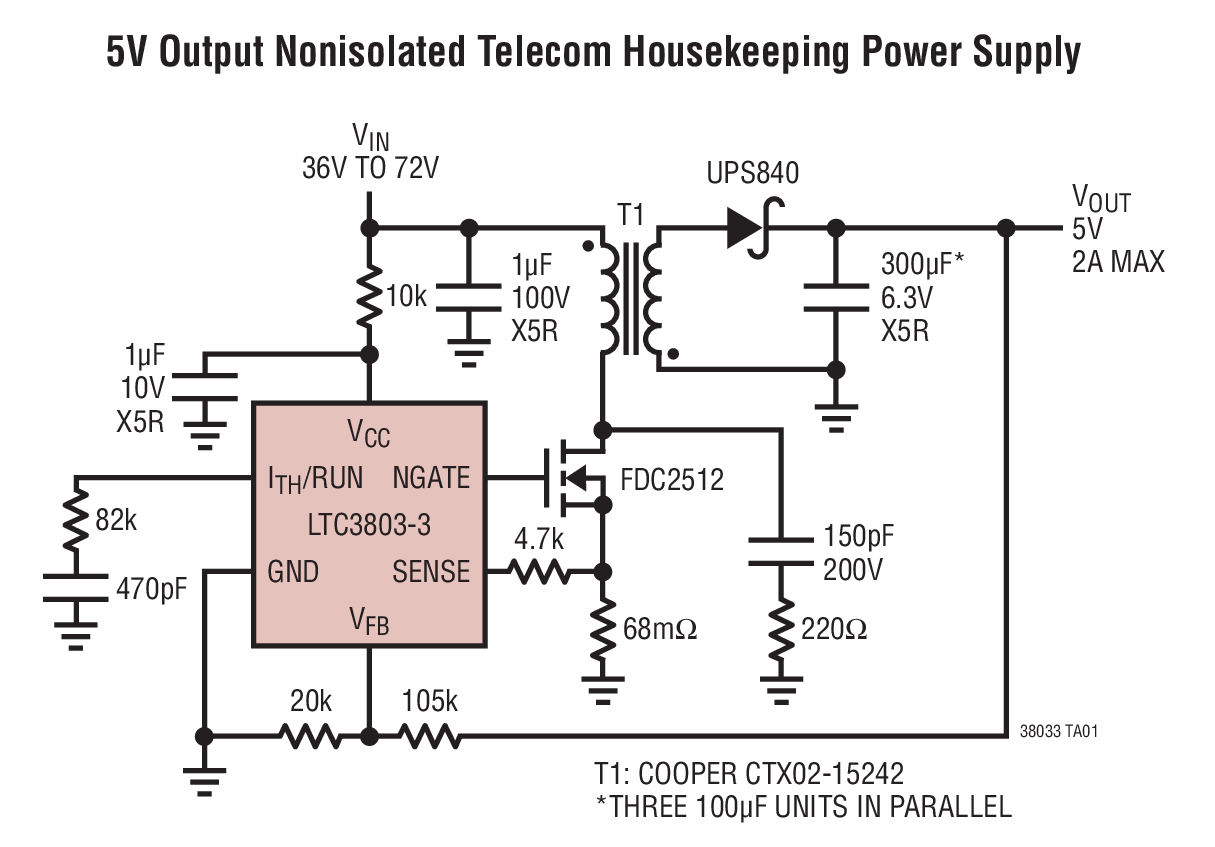

Features VIN and VOUT Limited Only by External Components Adjustable Slope Compensation Internal Soft-Start –55°C to 150°C Operating Temperature Range Constant Frequency 300kHz Operation ±1.5% Reference Accuracy Current Mode Operation for Excellent Line and Load Transient Response No Minimum Load Requirement Low Quiescent Current: 240μA Low Profile (1mm) SOT-23 Package Typical Application

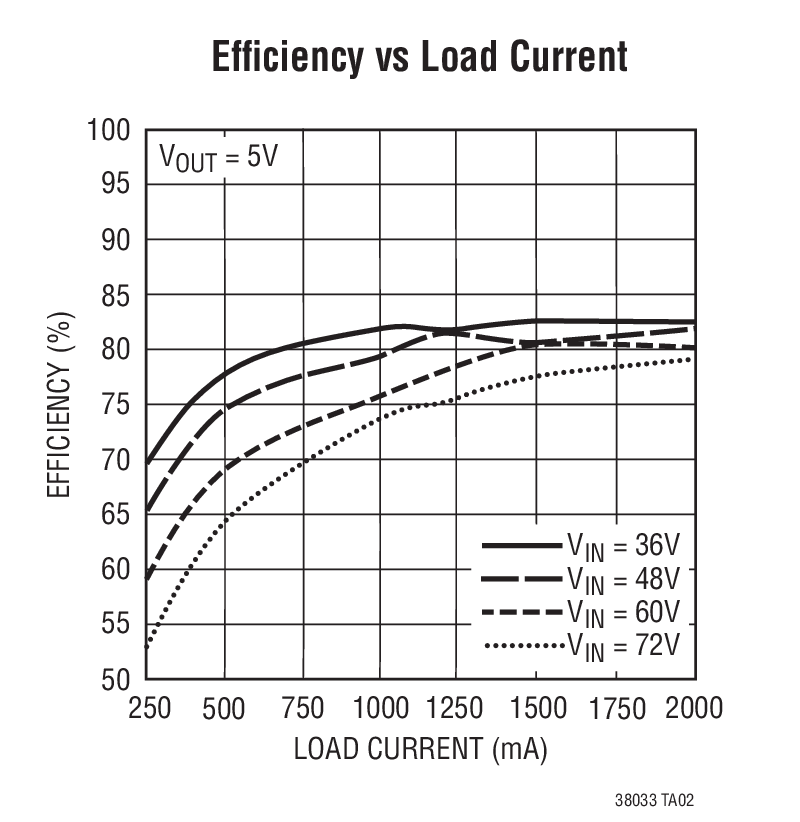

Applications Telecom Power Supplies 42V and 12V Automotive Power Supplies Auxiliary/Housekeeping Power Supplies Power over Ethernet Powered Devices Packaging

Demo Boards
