LTM8033 - Ultralow Noise EMC 36VIN, 3A DC/DC μModule (Power Module) Regulator

The LTM®8033 is an electromagnetic compatible (EMC) 36V, 3A DC/DC μModule® (power module) buck converter designed to meet the radiated emissions requirements of EN55022. Conducted emission requirements can be met by adding standard filter components. Included in the package are the switching controller, power switches, inductor, filters and all support components. Operating over an input voltage range of 3.6V to 36V, the LTM8033 supports an output voltage range of 0.8V to 24V, and a switching frequency range of 200kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.

The LTM8033 is packaged in a compact (11.25mm × 15mm × 4.32mm) overmolded land grid array (LGA) and ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8033 is available with SnPb (BGA) or RoHS compliant terminal finish.

Features
  • Complete Step-Down Switch Mode Power Supply
  • Wide Input Voltage Range: 3.6V to 36V
  • 3A Output Current
  • 0.8V to 24V Output Voltage
  • EN55022 Class B Compliant
  • Current Share Multiple LTM8033 Regulators for More Than 3A Output
  • Selectable Switching Frequency: 200kHz to 2.4MHz
  • Current Mode Control
  • SnPb or RoHS Compliant Finish
  • Programmable Soft-Start
  • Compact Package (11.25mm × 15mm × 4.32mm)
  • Surface Mount LGA and (11.25mm × 15mm × 4.92mm) BGA Packages
Typical Application

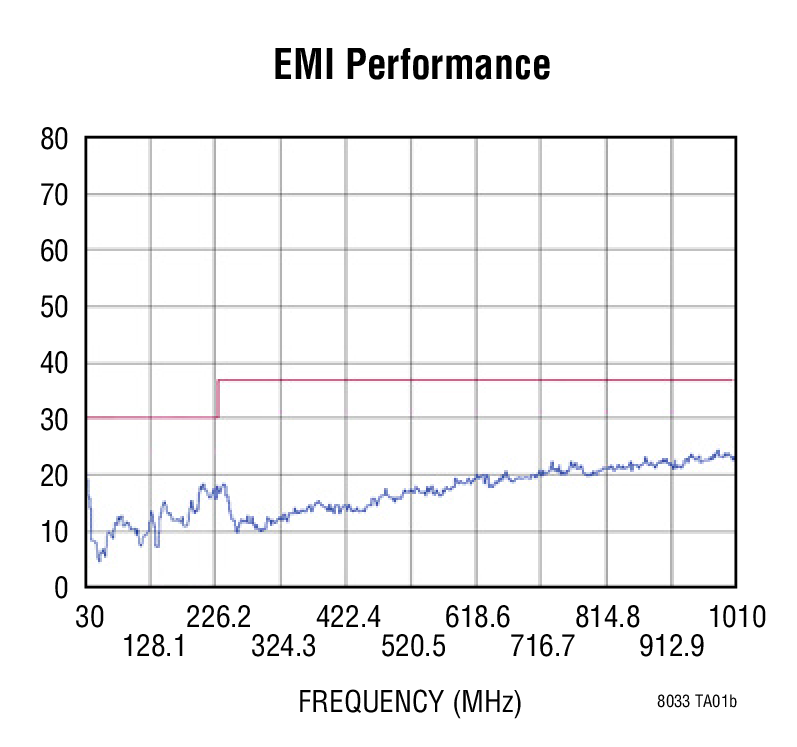

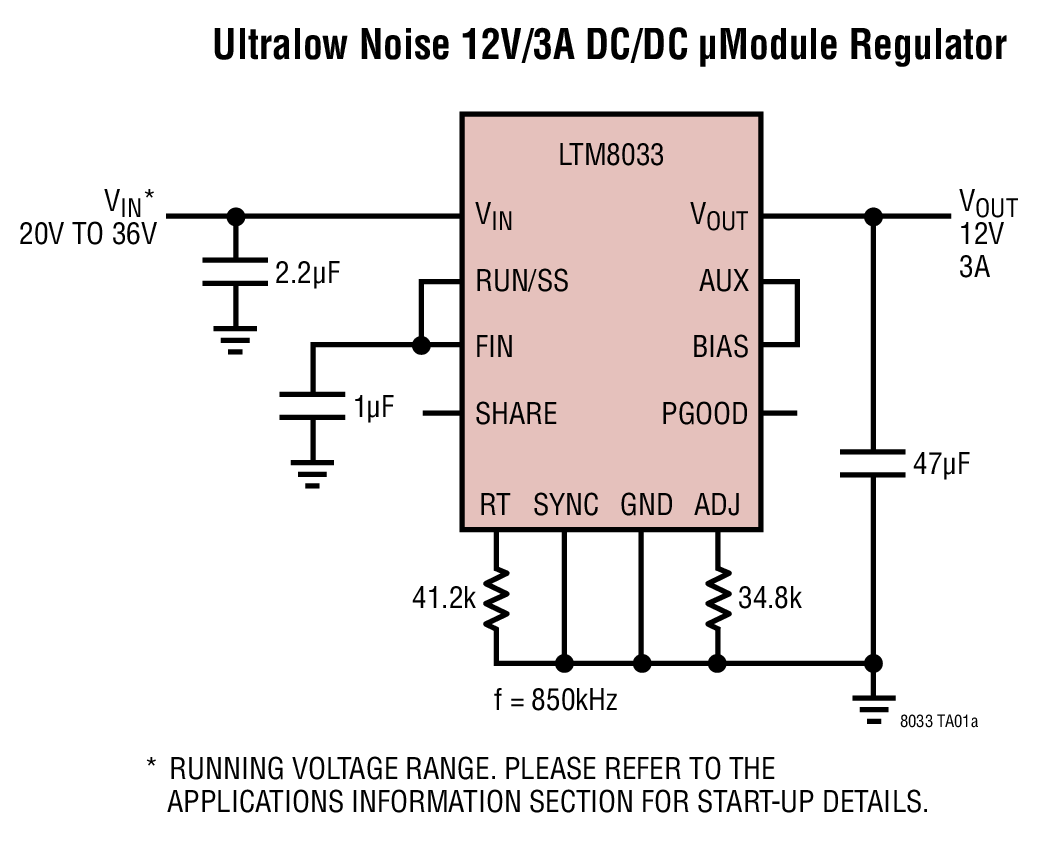

LTM8033 Typical Application
LTM8033 Typical Application
Applications
  • Automotive Battery Regulation
  • Power for Portable Products
  • Distributed Supply Regulation
  • Industrial Supplies
  • Wall Transformer Regulation
Packaging

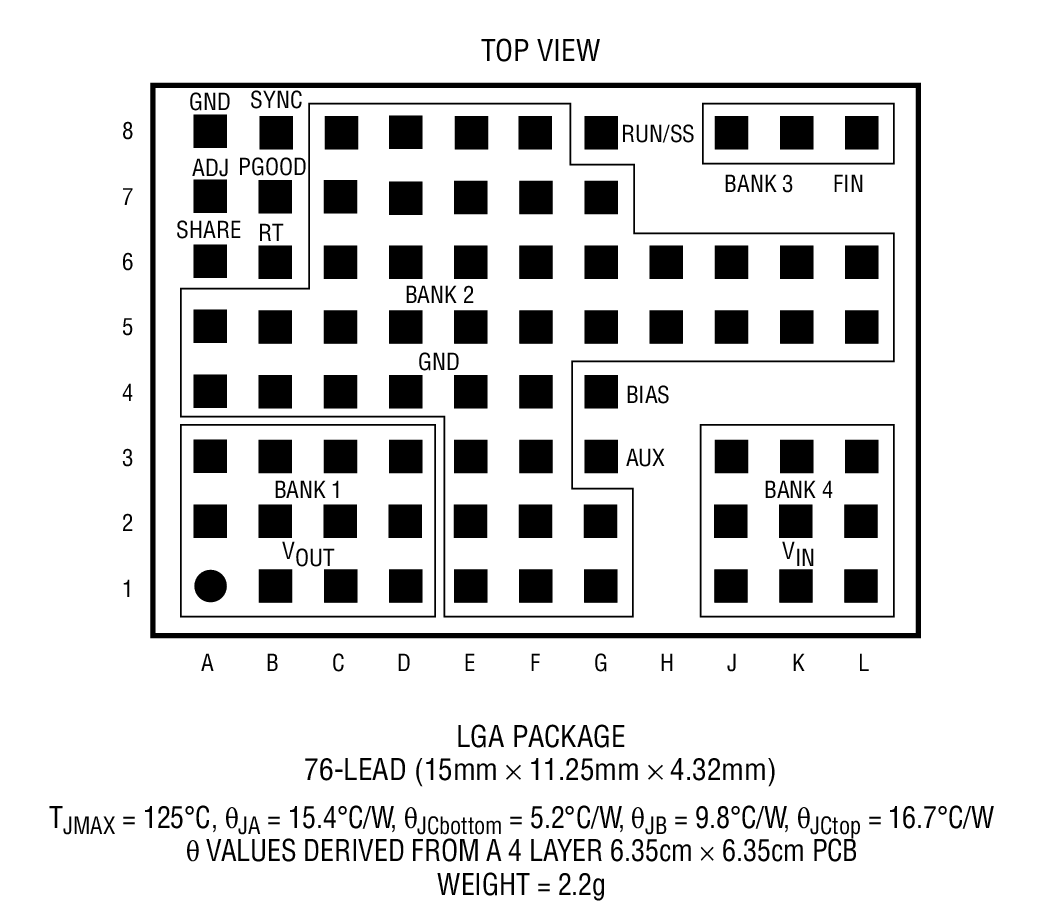

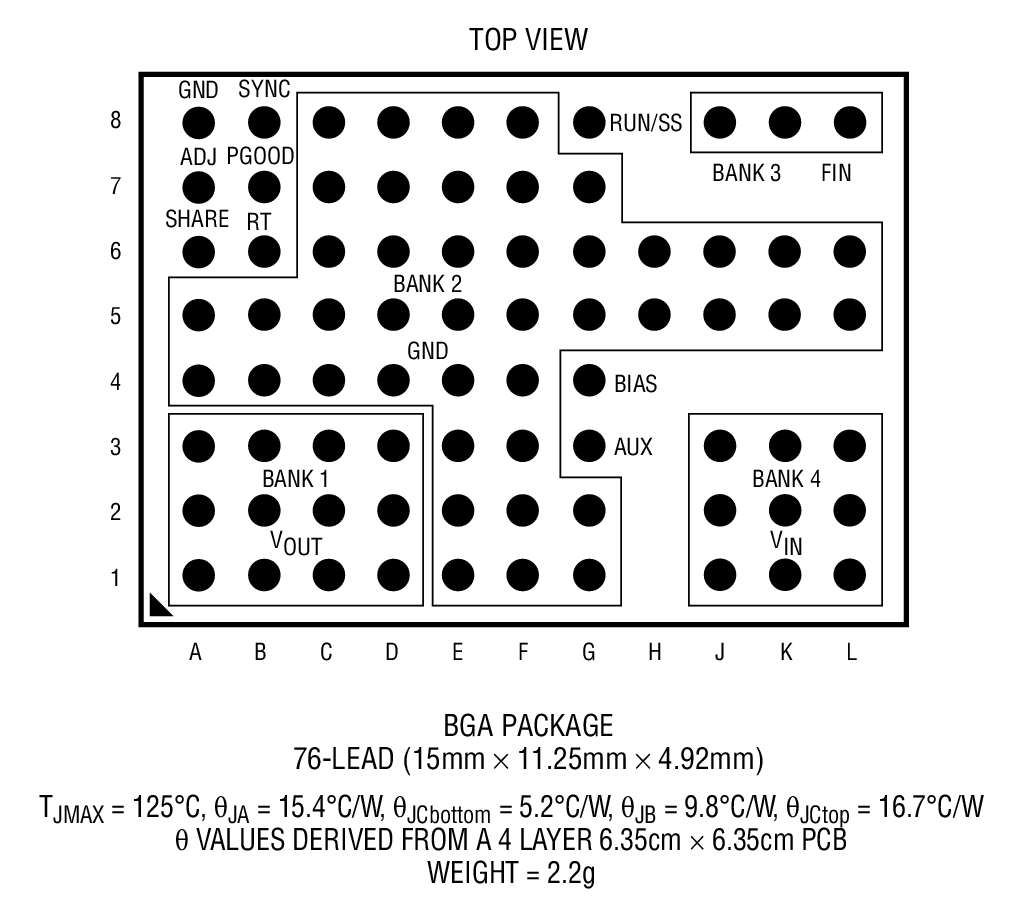

LTM8033 Package Drawing
LTM8033 Package Drawing
Order Information
Part NumberPackageTempPrice(1-99)Price (1k)*
LTM8033EV#PBF15mm × 11.25mm × 4.32mm LGAE$17.07$11.95
LTM8033EY#PBF15mm x 11.25mm x 4.92mm BGAE$18.64$13.05
LTM8033IV#PBF15mm × 11.25mm × 4.32mm LGAI$18.64$13.05
LTM8033IY15mm x 11.25mm x 4.92mm BGAI$28.90$20.23
LTM8033IY#PBF15mm x 11.25mm x 4.92mm BGAI$20.21$14.15
LTM8033MPV#PBF15mm × 11.25mm × 4.32mm LGAMP$34.86$24.40
LTM8033MPY15mm x 11.25mm x 4.92mm BGAMP$45.11$31.58
LTM8033MPY#PBF15mm x 11.25mm x 4.92mm BGAMP$36.41$25.50
Demo Boards
Part NumberDescriptionPrice
DC1623ALTM8033EV Demo Board | Ultralow EMI uModule Regulator, 5.5V ≤ VIN ≤ 36V, VOUT = 3.3V @ 3A$65.00
Datasheet
Reliability Data
Product Selector Card
Press Release
CAD Symbol
LTspice
