LTM8050 - 58V, 2A Step-Down μModule (Power Module) Regulator

The LTM®8050 is a 58VIN, 2A step down μModule® (power module) converter. Included in the package are the switching controller, power switches, inductor and all support components. Operating over an input voltage range of 3.6V to 58V, the LTM8050 supports an output voltage range of 0.8V to 24V and a switching frequency range of 100kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.

The LTM8050 is packaged in a 9mm × 15mm × 4.92mm ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8050 is available with SnPb (BGA) or RoHS compliant terminal finish.

Features
  • Wide Input Voltage Range: 3.6V to 58V (60V Absolute Maximum)
  • Up to 2A Output Current
  • Parallelable for Increased Output Current
  • 0.8V to 24V Output Voltage
  • Adjustable Switching Frequency: 100kHz to 2.4MHz
  • Configurable as an Inverter
  • Current Mode Control
  • Programmable Soft-Start
  • 9mm × 15mm × 4.92mm BGA Package
Typical Application

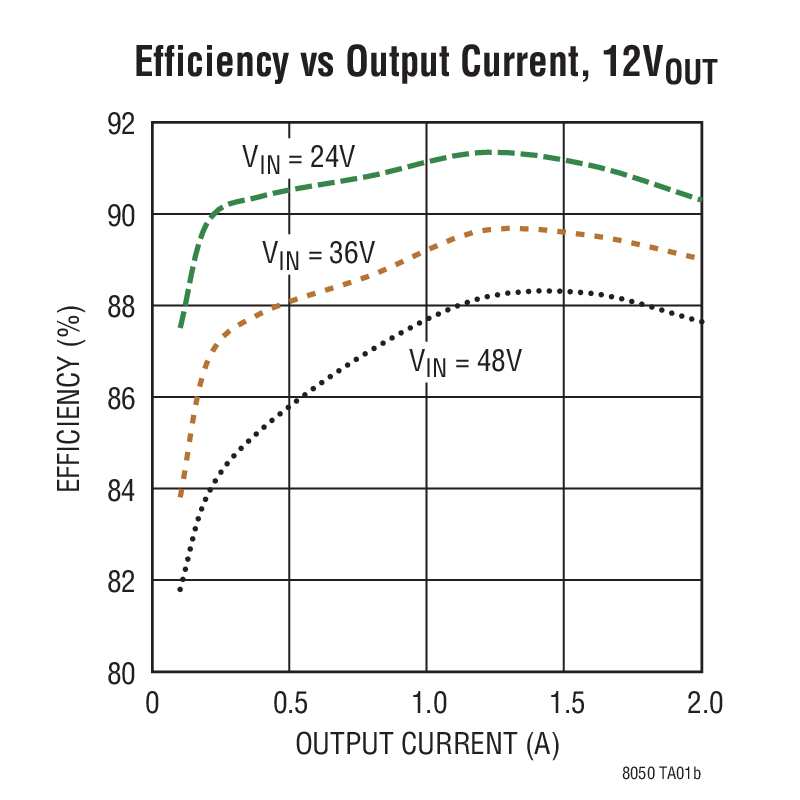

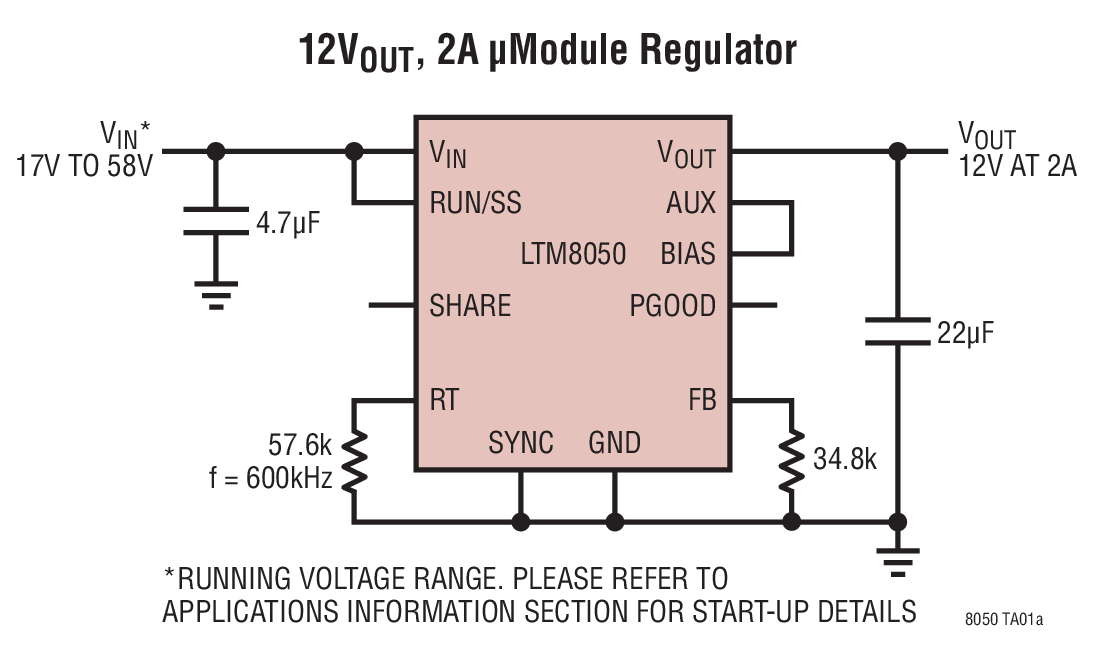

LTM8050 Typical Application
LTM8050 Typical Application
Applications
  • Automotive Battery Regulation
  • Power for Portable Products
  • Distributed Supply Regulation
  • Industrial Supplies
  • Wall Transformer Regulation
Packaging

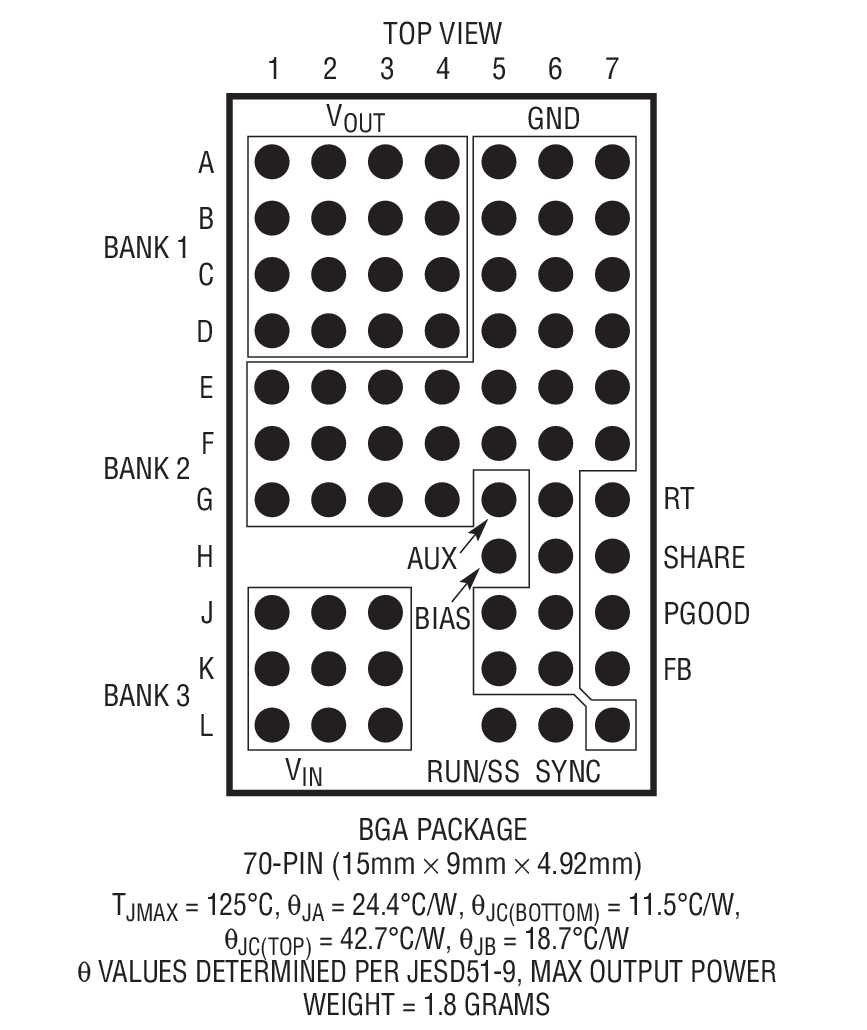

LTM8050 Package Drawing
Order Information
Part NumberPackageTempPrice(1-99)Price (1k)*
LTM8050EY#PBF15mm x 9mm x 4.92mm BGAE$20.00$14.00
LTM8050IY15mm x 9mm x 4.92mm BGAI$30.00$21.00
LTM8050IY#PBF15mm x 9mm x 4.92mm BGAI$22.00$15.40
LTM8050MPY15mm x 9mm x 4.92mm BGAMP$49.13$34.39
LTM8050MPY#PBF15mm x 9mm x 4.92mm BGAMP$41.13$28.79
Demo Boards
Part NumberDescriptionPrice
DC1723ALTM8050EY Demo Board | 7.5V ≤ VIN ≤ 58V, VOUT = 5V @ 2A$65.00
