PCF8591: 8-bit A/D and D/A converter

The PCF8591 is a single-chip, single‑supply low‑power 8‑bit CMOS data acquisition device with four analog inputs, one analog output and a serial I²C‑bus interface. Three address pins A0, A1 and A2 are used for programming the hardware address, allowing the use of up to eight devices connected to the I²C‑bus without additional hardware. Address, control and data to and from the device are transferred serially via the two-line bidirectional I²C‑bus.

The functions of the device include analog input multiplexing, on-chip track and hold function, 8-bit analog‑to‑digital conversion and an 8‑bit digital‑to‑analog conversion. The maximum conversion rate is given by the maximum speed of the I²C-bus.

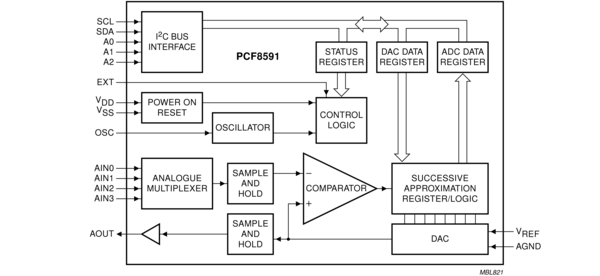

PCF8591: Product Block Diagram
Outline 3d SOT162-1
Data Sheets (1)
Name/DescriptionModified Date
8-bit A/D and D/A converter (REV 7.0) PDF (232.0 kB) PCF859127 Jun 2013
Application Notes (3)
Name/DescriptionModified Date
Level shifting techniques in I2C-bus design (REV 1.0) PDF (52.0 kB) AN1044120 Jun 2007
High-End RDS/EON Car Radio System CCR520S (V2.6) (REV 1.0) PDF (146.0 kB) AN9602215 Mar 1996
P83CE258 for High-End RDS/EON Car Radio System CCR520S V2.5 (REV 1.0) PDF (108.0 kB) AN9600701 Feb 1996
Users Guides (4)
Name/DescriptionModified Date
Store and transport requirements (REV 3.0) PDF (325.0 kB) UM1056910 Mar 2015
I2C-bus specification and user manual (REV 6.0) PDF (1.4 MB) UM1020428 Apr 2014
I2C-bus specification and user manual (REV 5.0) PDF (1.6 MB) UM10204_JA03 Apr 2013
I2C Demonstration Board 2005-1 Quick Start Guide (REV 1.0) PDF (261.0 kB) UM1020613 Jun 2006
Brochures (3)
Name/DescriptionModified Date
NXP® I2C-bus solutions 2014: Smart, simple solutions for the 12 most common design concerns (REV 1.0) PDF (3.5 MB) 7501754001 Aug 2014
Create smarter, more efficient white goods; An industry-leading portfolio of cost-effective, power-saving solutions for... (REV 1.0) PDF (1.1 MB) 7501654301 Jun 2008
1-MHz I2C-bus analog-to-digital and digital-to-analog converter; NXP® Fast-mode Plus 8-bit A/D and D/A... (REV 1.0) PDF (184.0 kB) 7501568501 Nov 2006
Package Information (1)
Name/DescriptionModified Date
plastic small outline package; 16 leads; body width 7.5 mm (REV 1.0) PDF (317.0 kB) SOT162-108 Feb 2016
Packing (2)
Name/DescriptionModified Date
SO16; Reel dry pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,518 or... (REV 1.0) PDF (271.0 kB) SOT162-1_51825 Nov 2014
SO16; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering... (REV 1.0) PDF (229.0 kB) SOT162-1_11812 Apr 2013
Supporting Information (2)
Name/DescriptionModified Date
Footprint for reflow soldering (REV 1.0) PDF (9.0 kB) SO-SOJ-REFLOW08 Oct 2009
Footprint for wave soldering (REV 1.0) PDF (8.0 kB) SO-SOJ-WAVE08 Oct 2009
Ordering Information
ProductStatusPackage versionApplicationConverter typeFunctionNumber of bitsNumber of pinsOperating/supply voltage (VCC,VP,VDD) [max] (V)VDD [max] (V)
PCF8591TNo Longer ManufacturedSOT162-1Radio, Audio and CD/DVD SystemsAnalog-to-Digital; Digital-to-AnalogConverters8162.56
Package Information
Product IDPackage DescriptionOutline VersionReflow/Wave SolderingPackingProduct StatusPart NumberOrdering code(12NC)MarkingChemical ContentRoHS / Pb Free / RHFLeadFree Conversion DateIFR(FIT)MTBF(hour)MSLMSL LF
PCF8591T/2SOT162-1SO-SOJ-REFLOW SO-SOJ-WAVE
SO-SOJ-REFLOW SO-SOJ-WAVE
Reel 13" Q1/T1 in DrypackActivePCF8591T/2,518 (9352 765 41518)PCF8591TPCF8591T/2Always Pb-free52E833
Tube in DrypackDiscontinuedPCF8591T/2,512 (9352 765 41512)PCF8591TPCF8591T/2Always Pb-free52E833
