Diodes - Zener Diodes - Automotive Qualified Products vishay
| Series | Product Image | Package | Ptot (mW) | Vz (min) (V) | Vz (max) (V) | Int. Construction | Vz Specification | AEC-Q101 Qualified |
|---|
| 1N4728A to 1N4764A |  | DO-41 | 1300 | 3.3 | 100.0 | Single | Thermal equilibrium | Yes |
| 1N5221 to 1N5267 |  | DO-35 | 500 | 2.4 | 75.0 | Single | Thermal equilibrium | Yes |
| AZ23-G-Series |  | SOT-23 | 300 | 2.7 | 51.0 | Dual | Pulse current | Yes |
| AZ23-Series |  | SOT-23 | 300 | 2.7 | 51.0 | Dual | Pulse current | Yes |

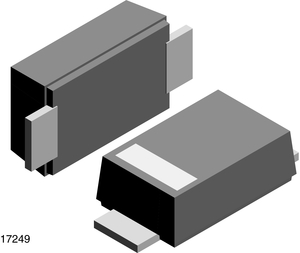

| BZD27B Series |  | DO-219AB (SMF) | 2300 | 3.6 | 200.0 | Single | Pulse current | Yes |
| BZD27B-M Series |  | DO-219AB (SMF) | 2300 | 3.6 | 200.0 | Single | Pulse current | Yes |
| BZD27C Series |  | DO-219AB (SMF) | 2300 | 3.6 | 200.0 | Single | Pulse current | Yes |
| BZD27C-M Series |  | DO-219AB (SMF) | 2300 | 3.6 | 200.0 | Single | Pulse current | Yes |

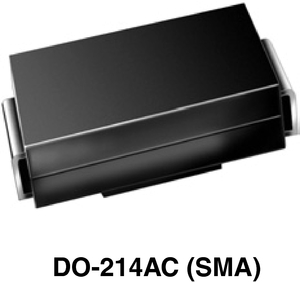

| BZG03B-Series |  | DO-214AC | 3000 | 10.0 | 270.0 | Single | Pulse current | Yes |
| BZG03C-Series |  | DO-214AC | 3000 | 10.0 | 270.0 | Single | Pulse current | Yes |
| BZG04-Series |  | DO-214AC | 3000 | 10.0 | 270.0 | Single | Pulse current | Yes |
| BZG05B-Series |  | DO-214AC | 3000 | 3.3 | 100.0 | Single | Pulse current | Yes |
| BZG05C-Series |  | DO-214AC | 3000 | 3.3 | 100.0 | Single | Pulse current | Yes |
| BZM55-Series |  | MicroMELF | 500 | 2.4 | 75.0 | Single | Pulse current | Yes |
| BZT52-G-Series |  | SOD-123 | 500 | 2.4 | 75.0 | Single | Pulse current | Yes |
| BZT52-Series |  | SOD-123 | 500 | 2.4 | 75.0 | Single | Pulse current | Yes |
| BZT55-Series |  | QuadroMELF SOD-80 | 500 | 2.4 | 75.0 | Single | Pulse current | Yes |
| BZX384-G-Series |  | SOD-323 | 200 | 2.4 | 75.0 | Single | Pulse current | Yes |
| BZX384-Series |  | SOD-323 | 200 | 2.4 | 75.0 | Single | Pulse current | Yes |
| BZX55-Series |  | DO-35 | 500 | 2.4 | 75.0 | Single | Pulse current | Yes |
| BZX84-G-Series |  | SOT-23 | 300 | 2.4 | 75.0 | Single | Pulse current | Yes |
| BZX84-Series |  | SOT-23 | 300 | 2.4 | 75.0 | Single | Pulse current | Yes |
| BZX85-Series |  | DO-41 | 1300 | 2.7 | 100.0 | Single | Pulse current | Yes |
| DZ23-G Series |  | SOT-23 | 300 | 2.7 | 51.0 | Dual | Pulse current | Yes |
| DZ23-Series |  | SOT-23 | 300 | 2.7 | 51.0 | Dual | Pulse current | Yes |
| GDZ-G-Series |  | SOD-323 | 200 | 2.0 | 36.0 | Single | Pulse current | Yes |
| GDZ-Series |  | SOD-323 | 200 | 2.0 | 36.0 | Single | Pulse current | Yes |
| MMBZ27VDA |  | SOT-23 | 225 | 27.0 | 27.0 | Dual common | Pulse current | Yes |
| MMBZ27VDA-G |  | SOT-23 | 225 | 27.0 | 27.0 | Dual | Pulse current | Yes |
| MMBZ4617 to MMBZ4627 |  | SOT-23 | 350 | 2.4 | 6.2 | Single | Pulse current | Yes |
| MMBZ4617-G to MMBZ4627-G |  | SOT-23 | 350 | 2.4 | 6.2 | Single | Pulse current | Yes |
| MMBZ4681 to MMBZ4717 |  | SOT-23 | 350 | 2.4 | 43.0 | Single | Pulse current | Yes |
| MMBZ4681-G to MMBZ4717-G |  | SOT-23 | 350 | 2.4 | 43.0 | Single | Pulse current | Yes |
| MMBZ5225 to MMBZ5267 |  | SOT-23 | 225 | 3.0 | 75.0 | Single | Thermal equilibrium | Yes |
| MMBZ5225-G to MMBZ5267-G |  | SOT-23 | 225 | 3.0 | 75.0 | Single | Thermal equilibrium | Yes |
| MMSZ4681 to MMSZ4717 |  | SOD-123 | 500 | 2.4 | 43.0 | Single | Thermal equilibrium | Yes |
| MMSZ4681-G to MMSZ4717-G |  | SOD-123 | 500 | 2.4 | 43.0 | Single | Thermal equilibrium | Yes |
| MMSZ5225 to MMSZ5267 |  | SOD-123 | 500 | 3.3 | 75.0 | Single | Thermal equilibrium | Yes |
| MMSZ5225-G to MMSZ5267-G |  | SOD-123 | 500 | 3.0 | 75.0 | Single | Thermal equilibrium | Yes |
| PLZ-Series |  | DO-219AC (MicroSMF) | 500 | 10.0 | 39.0 | Single | Pulse current | Yes |
| SML4738 to SML4764A |  | DO-214AC | 1000 | 8.2 | 100.0 | Single | Pulse current | Yes |

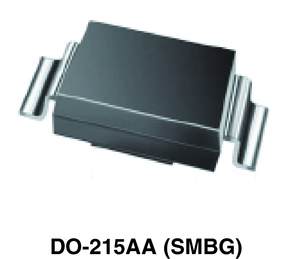

| SMZG3788B thru SMGZ3809B |  | DO-215AA (SMBG) | 1500 | 9.1 | 68.0 | Single | Pulse current | Yes |

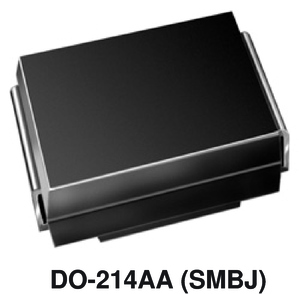

| SMZJ3788B thru SMZJ3809B |  | DO-214AA (SMBJ) | 1500 | 9.1 | 68.0 | Single | Pulse current | Yes |

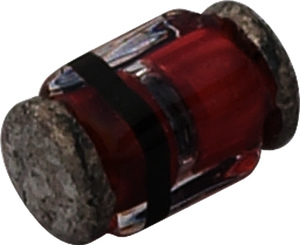

| TLZ-Series |  | MiniMELF SOD-80 | 500 | 2.4 | 56.0 | Single | Pulse current | Yes |
| TZM-M-Series |  | MiniMELF SOD-80 | 500 | 2.4 | 75.0 | Single | Pulse current | Yes |
| TZM-Series |  | MiniMELF SOD-80 | 500 | 2.4 | 75.0 | Single | Pulse current | Yes |
| TZM5221 to TZM5267 |  | MiniMELF SOD-80 | 500 | 2.4 | 75.0 | Single | Thermal equilibrium | Yes |
| TZQ5221B to TZQ5267B |  | QuadroMELF SOD-80 | 500 | 2.4 | 75.0 | Single | Thermal equilibrium | Yes |
| TZS4678 to TZS4717 |  | QuadroMELF SOD-80 | 500 | 1.8 | 43.0 | Single | Pulse current | Yes |
| TZX-Series |  | DO-35 | 500 | 2.4 | 36.0 | Single | Pulse current | Yes |
| VLZ-Series |  | QuadroMELF SOD-80 | 500 | 2.4 | 56.0 | Single | Pulse current | Yes |
| ZM4728A to ZM4764A |  | MELF DO-213AB (glass) | 1000 | 3.3 | 100.0 | Single | Thermal equilibrium | Yes |
| ZMY3V9 to ZMY100 |  | MELF DO-213AB (glass) | 1000 | 3.9 | 100.0 | Single | Pulse current | Yes |
| ZPY3V9 to ZPY100 |  | DO-41 | 1300 | 3.9 | 100.0 | Single | Pulse current | Yes |
