Networks and Arrays - Single In-line vishay

SeriesProduct ImageTechnologyTypeDescriptionPower (W)Resistance (min) (Ohms)Resistance (max) (Ohms)Typical TCR (ppm/C)Min. tolerance (%)
100-267Thin FilmResistor NetworksDecade Divider, Single In-Line, Thin Film Divider, Through Hole Resistor Network0.1001001 M250.1
CNS 471Thin FilmResistor NetworksDecade Divider, Single-In-Line Through Hole Thin Film Resistor Networks (Standard)0.110010 M2.50.03
CSThin Film ResistorResistor NetworksCeramic Sandwich, Single-In-Line Thin Film Resistor, Through Hole Network (Low Profile 0.20 Custom)0.120500 K500.05
CSThin Film ResistorResistor NetworksCeramic Sandwich, Single-In-Line Thin Film Resistor, Through Hole Network (Low Profile 0.20 Custom)0.1202 M100.05

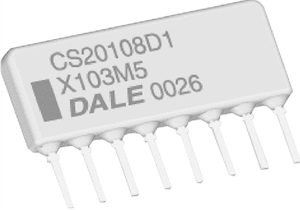

CS201Capacitors NetworksThick Film Capacitor Networks, Single-In-Line, Conformal Coated SIP

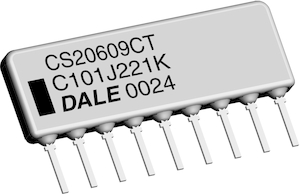

CS206Thick FilmResistor/Capacitor NetworksThick Film Resistor/Capacitor Networks, Single-In-Line, Conformal Coated SIP0.125101 M2002
CSCThick FilmResistor NetworksThick Film Resistor Networks, Single-In-Line, Conformal Coated SIP0.2012.2 M2501
CSCThick FilmResistor NetworksThick Film Resistor Networks, Single-In-Line, Conformal Coated SIP0.251050250
CSCThick FilmResistor NetworksThick Film Resistor Networks, Single-In-Line, Conformal Coated SIP0.3010502501
CSCThick FilmResistor NetworksThick Film Resistor Networks, Single-In-Line, Conformal Coated SIP0.401050250
CTSPThin FilmResistor NetworksMolded, Commercial, Single In-Line Thin Film Resistor, Through Hole Network (Custom)0.120500 K100.05
Custom NetworksThick FilmResistor NetworksCustom Thick Film Resistor Networks, Single-In-Line (Molded or Conformal Coated SIPs) and Dual-In-Line (Molded DIPs)0.125150 M

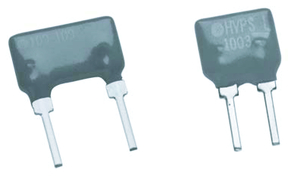

HVPSThin FilmResistor NetworksHigh Value, High Voltage Precision SIP Thin Film Resistor, Through Hole Network0.12550 K5 M50.01
M83401, C83401Thin FilmResistor NetworksThin Film Resistor Network Military, MIL-PRF-83401 Qualified, Type RZ070, RZ080, RZ090, RZ220, RZ221, RZ223, Single-In-Line SIP0.00006100200 K250.1

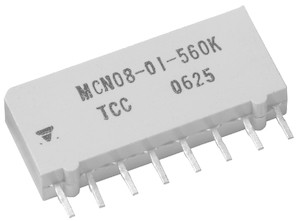

MCNCapacitors NetworksThick Film Capacitor Networks, Single-In-Line, Molded SIP

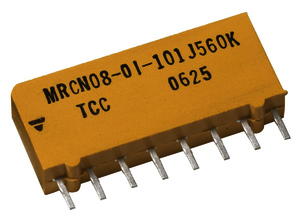

MRCNThick FilmResistor/Capacitor NetworksThick Film Resistor/Capacitor Networks, Single-In-Line, Molded SIP0.20101 M1501
MSM (Military M83401/04 to /09)Thick FilmResistor NetworksThick Film Resistor Networks, Military, MIL-PRF-83401 Qualified, Type RZ040 to RZ090, Single-In-Line, Molded SIP0.07see datasheetsee datasheet1001
MSM (Military M83401/04 to /09)Thick FilmResistor NetworksThick Film Resistor Networks, Military, MIL-PRF-83401 Qualified, Type RZ040 to RZ090, Single-In-Line, Molded SIP0.11see datasheetsee datasheet1001
MSM (Military M83401/04 to /09)Thick FilmResistor NetworksThick Film Resistor Networks, Military, MIL-PRF-83401 Qualified, Type RZ040 to RZ090, Single-In-Line, Molded SIP0.12101 M1001
MSM (Military M83401/04 to /09)Thick FilmResistor NetworksThick Film Resistor Networks, Military, MIL-PRF-83401 Qualified, Type RZ040 to RZ090, Single-In-Line, Molded SIP0.20101 M1001
MSM Long Lead (Military M83401/24)Thick FilmResistor NetworksThick Film Resistor Networks, Military, MIL-PRF-83401 Qualified, Type RZ240, Single-In-Line, Molded SIP0.07see datasheetsee datasheet1001
MSM Long Lead (Military M83401/24)Thick FilmResistor NetworksThick Film Resistor Networks, Military, MIL-PRF-83401 Qualified, Type RZ240, Single-In-Line, Molded SIP0.12101 M1001

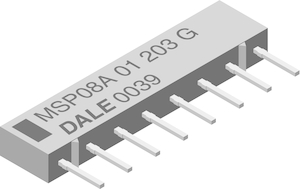

MSPThick FilmResistor NetworksThick Film Resistor Networks, Single-In-Line, Molded SIP0.20102.2 M1001
MSPThick FilmResistor NetworksThick Film Resistor Networks, Single-In-Line, Molded SIP0.25102.2 M1001
MSPThick FilmResistor NetworksThick Film Resistor Networks, Single-In-Line, Molded SIP0.30102.2 M1001
MSPThick FilmResistor NetworksThick Film Resistor Networks, Single-In-Line, Molded SIP0.40102.2 M1001
TAS (CNS)Thin FilmResistor NetworksConformal Coating, Single-In-Line Thin Film Resistor, Through Hole Networks0.1001 K9.9 M20.01

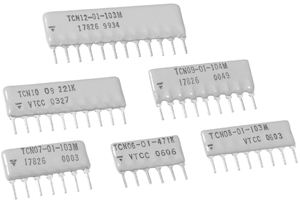

TCNCapacitors NetworksThick Film Capacitor Networks, Single-In-Line, Conformal Coated SIP

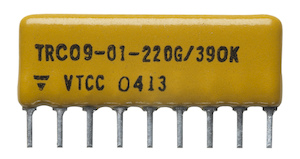

TRCThick FilmResistor/Capacitor NetworksThick Film Resistor/Capacitor Networks, Single-In-Line, Conformal Coated SIP0.20101 M1501
TSPThin FilmResistor NetworksResistor NetworksMolded, Commercial, Single In-Line Thin Film Resistor, Through Hole Network (Standard)0.100100200 K250.1

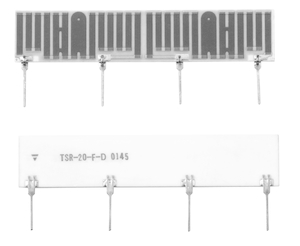

TSRThick FilmResistor NetworksThick Film Surge Resistor Networks, Single-In-Line224200

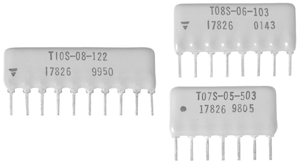

TxxSThick FilmResistor NetworksThick Film Resistor Networks, Single-In-Line, Conformal Coated SIP0.0505 K100 K
VTF (Custom)Thin FilmResistor NetworksConformal, Single In-Line Thin Film Resistor, Through Hole Network (Custom)0.1001002 M100.05
VTF (Standard)Thin FilmResistor NetworksConformal, Single In-Line Thin Film Resistor, Through Hole Network (Standard)0.11002 M100.1
