Thyristors - Fast discrete vishay
Series | Product Image | Package | Diode Variations | IT(AV) (A) | TC/Ths (°C) | ITSM @ 50 Hz (A) | ITSM @ 60 Hz (A) | VDRM/VRRM (V) | tq (µs) | VTM (V) | IGT (mA) | TJ (°C) |
---|

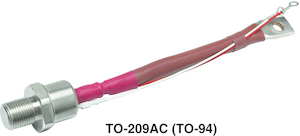

VS-ST083SP Series | ![VS-ST083SP Series](/image/vishay/94334-pt-small.jpg) | TO-209AC (TO-94) | Single SCR | 85 | 85 | 2450 | 2560 | 1200 | 10 to 20 | 2.15 | 200 | -40 to 125 |
VS-ST083SP Series | ![VS-ST083SP Series](/image/vishay/94334-pt-small.jpg) | TO-209AC (TO-94) | Single SCR | 85 | 85 | 2450 | 2560 | 400 | 10 to 20 | 2.15 | 200 | -40 to 125 |
VS-ST103SP Series | ![VS-ST103SP Series](/image/vishay/94365-pt-small.jpg) | TO-209AC (TO-94) | Single SCR | 105 | 85 | 3000 | 3150 | 800 | 10 to 25 | 1.73 | 200 | -40 to 125 |
VS-ST103SP Series | ![VS-ST103SP Series](/image/vishay/94365-pt-small.jpg) | TO-209AC (TO-94) | Single SCR | 105 | 85 | 3000 | 3150 | 400 | 10 to 25 | 1.73 | 200 | -40 to 125 |
VS-ST173C Series | ![VS-ST173C Series](/image/vishay/94366-pt-small.jpg) | TO-200AB (A-PUK) | Single SCR | 330 | 55 | 4680 | 4900 | 1000 | 15 to 30 | 2.07 | 200 | -40 to 125 |
VS-ST173C Series | ![VS-ST173C Series](/image/vishay/94366-pt-small.jpg) | TO-200AB (A-PUK) | Single SCR | 330 | 55 | 4680 | 4900 | 1200 | 15 to 30 | 2.07 | 200 | -40 to 125 |

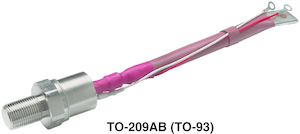

VS-ST173S Series | ![VS-ST173S Series](/image/vishay/94367-pt-small.jpg) | TO-209AB (TO-93) | Single SCR | 175 | | 4680 | 4900 | 1200 | 15 to 25 | 2.07 | 200 | -40 to 125 |
VS-ST173S Series | ![VS-ST173S Series](/image/vishay/94367-pt-small.jpg) | TO-209AB (TO-93) | Single SCR | 175 | | 4680 | 4900 | 1000 | 15 to 25 | 2.07 | 200 | -40 to 125 |

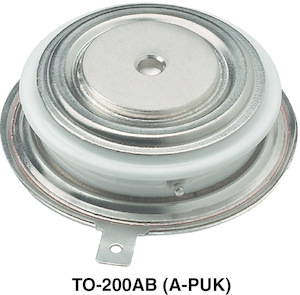

VS-ST183C Series | ![VS-ST183C Series](/image/vishay/94368-pt-small.jpg) | TO-200AB (A-PUK) | Single SCR | 370 | 55 | 4900 | 5130 | 400 | 10 to 20 | 1.80 | 200 | -40 to 125 |
VS-ST183C Series | ![VS-ST183C Series](/image/vishay/94368-pt-small.jpg) | TO-200AB (A-PUK) | Single SCR | 370 | 55 | 4900 | 5130 | 800 | 10 to 20 | 1.80 | 200 | -40 to 125 |
VS-ST183SP Series | ![VS-ST183SP Series](/image/vishay/94369-pt-small.jpg) | TO-209AB (TO-93) | Single SCR | 195 | | 4900 | 5130 | 800 | 15 to 20 | 1.80 | 200 | -40 to 125 |
VS-ST183SP Series | ![VS-ST183SP Series](/image/vishay/94369-pt-small.jpg) | TO-209AB (TO-93) | Single SCR | 195 | | 4900 | 5130 | 400 | 15 to 20 | 1.80 | 200 | -40 to 125 |
VS-ST203C Series | ![VS-ST203C Series](/image/vishay/94370-pt-small.jpg) | TO-200AB (A-PUK) | Single SCR | 370 | 55 | 5260 | 5510 | 1200 | 20 to 30 | 1.72 | 200 | -40 to 125 |
VS-ST203C Series | ![VS-ST203C Series](/image/vishay/94370-pt-small.jpg) | TO-200AB (A-PUK) | Single SCR | 370 | 55 | 5260 | 5510 | 1000 | 20 to 30 | 1.72 | 200 | -40 to 125 |

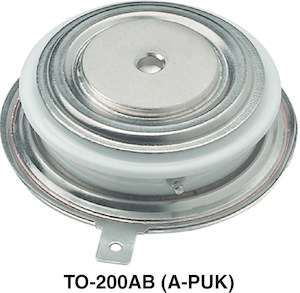

VS-ST223C..C Series | ![VS-ST223C..C Series](/image/vishay/93672-pt-small.jpg) | TO-200AB (A-PUK) | Single SCR | 390 | 55 | 5260 | 5510 | 800 | 10 to 30 | 1.58 | 200 | -40 to +125 |
VS-ST223C..C Series | ![VS-ST223C..C Series](/image/vishay/93672-pt-small.jpg) | TO-200AB (A-PUK) | Single SCR | 390 | 55 | 5260 | 5510 | 400 | 10 to 30 | 1.58 | 200 | -40 to +125 |

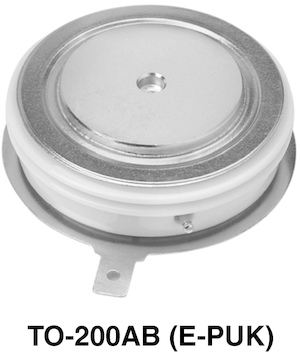

VS-ST303C Series | ![VS-ST303C Series](/image/vishay/94373-pt-small.jpg) | TO-200AB (E-PUK) | Single SCR | 620 | 55 | 7950 | 8320 | 1000 | 10 to 30 | 2.16 | 200 | -40 to 125 |
VS-ST303C Series | ![VS-ST303C Series](/image/vishay/94373-pt-small.jpg) | TO-200AB (E-PUK) | Single SCR | 620 | 55 | 7950 | 8320 | 1200 | 10 to 30 | 2.16 | 200 | -40 to 125 |
VS-ST303C Series | ![VS-ST303C Series](/image/vishay/94373-pt-small.jpg) | TO-200AB (E-PUK) | Single SCR | 620 | 55 | 7950 | 8320 | 800 | 10 to 30 | 2.16 | 200 | -40 to 125 |
VS-ST303C Series | ![VS-ST303C Series](/image/vishay/94373-pt-small.jpg) | TO-200AB (E-PUK) | Single SCR | 620 | 55 | 7950 | 8320 | 400 | 10 to 30 | 2.16 | 200 | -40 to 125 |

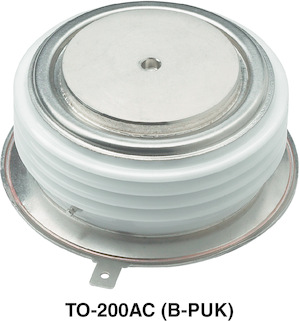

VS-ST303CL Series | ![VS-ST303CL Series](/image/vishay/94374-pt-small.jpg) | TO-200AC (B-PUK) | Single SCR | 515 | 55 | 7950 | 8320 | 1000 | 10 to 30 | 2.16 | 200 | -40 to 125 |
VS-ST303CL Series | ![VS-ST303CL Series](/image/vishay/94374-pt-small.jpg) | TO-200AC (B-PUK) | Single SCR | 515 | 55 | 7950 | 8320 | 1200 | 10 to 30 | 2.16 | 200 | -40 to 125 |
VS-ST303CL Series | ![VS-ST303CL Series](/image/vishay/94374-pt-small.jpg) | TO-200AC (B-PUK) | Single SCR | 515 | 55 | 7950 | 8320 | 800 | 10 to 30 | 2.16 | 200 | -40 to 125 |
VS-ST303CL Series | ![VS-ST303CL Series](/image/vishay/94374-pt-small.jpg) | TO-200AC (B-PUK) | Single SCR | 515 | 55 | 7950 | 8320 | 400 | 10 to 30 | 2.16 | 200 | -40 to 125 |
VS-ST303SP Series | ![VS-ST303SP Series](/image/vishay/94375-pt-small.jpg) | TO-209AE (TO-118) | Single SCR | 300 | | 3000 | 3150 | 1200 | 10 to 20 | 2.16 | 200 | -40 to 125 |
VS-ST303SP Series | ![VS-ST303SP Series](/image/vishay/94375-pt-small.jpg) | TO-209AE (TO-118) | Single SCR | 300 | | 3000 | 3150 | 400 | 10 to 20 | 2.16 | 200 | -40 to 125 |
VS-ST333C..C Series | ![VS-ST333C..C Series](/image/vishay/93678-pt-small.jpg) | TO-200AB (E-PUK) | Single SCR | 720 | 55 | 11000 | 11500 | 400 | 10 to 30 | 1.96 | 200 | -40 to 125 |
VS-ST333C..C Series | ![VS-ST333C..C Series](/image/vishay/93678-pt-small.jpg) | TO-200AB (E-PUK) | Single SCR | 720 | 55 | 11000 | 11500 | 800 | 10 to 30 | 1.96 | 200 | -40 to 125 |

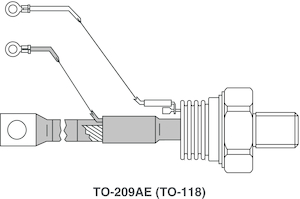

VS-ST333SP Series | ![VS-ST333SP Series](/image/vishay/94377-pt-small.jpg) | TO-209AE (TO-118) | Single SCR | 330 | | 11000 | 11520 | 400 | 15 | 1.96 | 200 | -40 to 125 |
VS-ST333SP Series | ![VS-ST333SP Series](/image/vishay/94377-pt-small.jpg) | TO-209AE (TO-118) | Single SCR | 330 | | 11000 | 11520 | 2000 | 15 | 1.96 | 200 | -40 to 125 |
VS-ST733CL Series | ![VS-ST733CL Series](/image/vishay/94378-pt-small.jpg) | TO-200AC (B-PUK) | Single SCR | 940 | 55 | 20000 | 20950 | 400 | 10 to 20 | 1.63 | 200 | -40 to +125 |
VS-ST733CL Series | ![VS-ST733CL Series](/image/vishay/94378-pt-small.jpg) | TO-200AC (B-PUK) | Single SCR | 940 | 55 | 20000 | 20950 | 800 | 10 to 20 | 1.63 | 200 | -40 to +125 |
