LT1802 Dual/Quad 80MHz, 25V/µs Low Power Rail-to-Rail Input and Output Precision Op Amps

The LT™1801/LT1802 are dual/quad, low power, high speed rail-to-rail input and output operational amplifiers with excellent DC performance. The LT1801/LT1802 feature reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than other devices with comparable bandwidth.

Typically, the LT1801/LT1802 have an input offset voltage of less than 100µV, an input bias current of less than 50nA and an open-loop gain of 85 thousand.

The LT1801/LT1802 have an input range that includes both supply rails and an output that swings within 20mVof either supply rail to maximize the signal dynamic range in low supply applications.

The LT1801/LT1802 maintain their performance for supplies from 2.3V to 12.6V and are specified at 3V, 5V and ±5V supplies. The inputs can be driven beyond the supplies without damage or phase reversal of the output.

The LT1801 is available in the MS8, SO-8 and the 3mm x 3mm x 0.8mm dual fine pitch leadless package (DFN) with the standard dual op amp pinout. The LT1802 features the standard quad op amp configuration and is available in the 14-pin plastic SO package. The LT1801/LT1802 can be used as plug-in replacements for many op amps to improve input/output range and performance.

For a single version of these amplifiers, see the LT1800 data sheet

产品特点 Features

Gain Bandwidth Product: 80MHz
Input Common Mode Range Includes Both Rails
Output Swings Rail-to-Rail
Low Voltage Operation: Single or Split Supplies 2.3V to 12.6V
Low Quiescent Current: 2mA/Amplifier Max
Input Offset Voltage: 350µV Max
Input Bias Current: 250nA Max
3mm x 3mm x 0.8mm DFN Package
Large Output Current: 50mA Typ
Low Voltage Noise: 8.5nV/rtHz Typ
Slew Rate: 25V/µs Typ
Common Mode Rejection: 105dB Typ
Power Supply Rejection: 97dB Typ
Open-Loop Gain: 85V/mV Typ
Operating Temperature Range: –40°C to 85°C
LT1801 is Available in 8-Lead SO, MS8 and DFN Packages
LT1802 is Available in 14-Lead SO Package

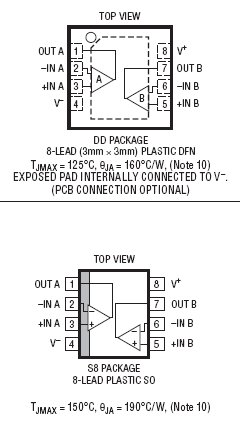

封装

应用

Low Voltage, High Frequency Signal Processing
Driving A/D Converters
Rail-to-Rail Buffer Amplifiers
Active Filters
Video Line Driver

典型应用图

参数

LT1802 订购信息和价格参考Package Variations and Pricing

器件型号	封装	引脚	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量) *
LT1802CS	SO	14	C	$4.25	$3.50
LT1802CS#PBF	SO	14	C	$4.25	$3.50
LT1802CS#TR	SO	14	C		$3.56
LT1802CS#TRPBF	SO	14	C		$3.56
LT1802IS	SO	14	I	$5.05	$4.20
LT1802IS#PBF	SO	14	I	$5.05	$4.20
LT1802IS#TR	SO	14	I		$4.26
LT1802IS#TRPBF	SO	14	I		$4.26

LT1802 数据手册及相关资料下载

数据手册(英文) : LT1801/LT1802 - Dual/Quad 80MHz, 25V/µs Low Power Rail-to-Rail Input and Output Precision Op Amps.PDF
设计要点 (英文) : DN286 - Fast and Accurate 80MHz Amplifier Draws Only 2mA.PDF
可靠性数据 : R378 Reliability Data .PDF
LT Journal : Dec 2001 Accurate and Fast 80MHz Amplifier Draws only 2mA.PDF
