LTC1390 8-Channel Analog Multiplexer with Serial Interface

The LTC®1390 is a high performance CMOS 8-to-1 analog multiplexer. It features a 3-wire digital interface with a bidirectional data retransmission feature, allowing it to be wired in series with a serial A/D converter while using only one serial port. The interface also allows several LTC1390s to be wired in series or parallel, increasing the number of MUX channels available using only a single digital port. All the above features are also valid when LTC1390 operates as a demultiplexer such as with a D/A converter.

The LTC1390 features a typical RON of 45 Ohm, typical switch leakage of 50pA, and guaranteed break-before-make operation. Charge injection is ±10pC maximum. All digital inputs are TTL and CMOS compatible when operated from single or dual supplies. The inputs can withstand 100mA fault currents.

The LTC1390 is available in 16-pin PDIP and narrow SO packages

产品特点 Features

3-Wire Serial Digital Interface
Data Retransmission Allows Series Connection with Serial A/D Converters
Single 3V to ±5V Supply Operation
Analog Inputs May Extend to Supply Rails
Low Charge Injection
Low RON: 75 Ohm Max
Low Leakage: ±5nA Max
Guaranteed Break-Before-Make
TTL/CMOS Compatible for All Digital Inputs
Cascadable to Allow Additional Channels
Can be used as a Demultiplexer

参数

应用

Data Acquisition Systems
Communication Systems
Signal Multiplexing/Demultiplexing

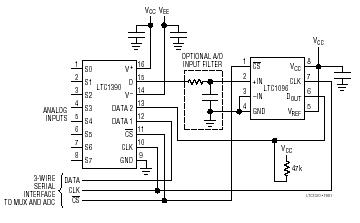

典型应用图

LTC1390 订购信息和价格参考Package Variations and Pricing

器件型号	封装	引脚	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量) *
LTC1390CN	PDIP	16	C	$2.90	$2.30
LTC1390CN#PBF	PDIP	16	C	$2.90	$2.30
LTC1390CS	SO	16	C	$3.10	$2.40
LTC1390CS#PBF	SO	16	C	$3.10	$2.40
LTC1390CS#TR	SO	16	C		$2.46
LTC1390CS#TRPBF	SO	16	C		$2.46

LTC1390 数据手册及相关资料下载

数据手册(英文) : LTC1390 - 8-Channel Analog Multiplexer with Serial Interface.PDF
应用指南 : AN67 - linear Technology Magazine Circuit Collection, Volume III.PDF
设计要点 (英文) : DN112 - LTC1390: A Versatile 8-Channel Multiplexer.PDF
可靠性数据 : R107 Reliability Data .PDF
