LTK001 Thermocouple Cold Junction Compensator and Matched Amplifier
The compensator is a selected version of the LT1025 cold junction compensator. The amplifier, which is also available separately as LTKA0X has been specially selected for thermocouple applications. It has low supply current to minimize warmup drift, very low offset voltage (<35µV), high gain, and extremely low input bias currents (<600pA) to allow high impedance input filters to be used without degrading offset voltage or drift. Matching of the kits is accomplished by separating the compensators and amplifiers according to the polarity of their inital (room temperature) errors. This eliminates the need to sum the errors of the two components to find the worst-case error. The LTK001 has direct thermocouple outputs of 60.9µV/°C (E) 51.7µV/°C (J), 40.6µV/°C (K,T), and 5.95µV/°C (R,S). It also has a 10mV/°C output which can be scaled to match any arbitrary thermocouple. The amplifier in the LTK001 kit is available in an 8-pin plastic miniDIP for 0°C to 70°C operation and an 8-pin TO-39 metal can for -55°C to +125°C operation. The compensator is available in 8-pin plastic miniDIP for 0°C to 70°C operation and 8-pin ceramic miniDIP for -55¯C to +125°C operation. For multiple thermocouple applications using one compensator, amplifiers may be ordered separately (LTKAOx), still matched to the compensator. For typical performance curves and all applications circuits consult the LT1025 data sheet
产品特点 Features
- 0.75°C Initial Accuracy (A Version)
- Extremely Low Warmup Drift
- Preset Outputs for Type E, J, K, R, S, T
- Single 5V to ± 20V Operation
- 480µA Typical Supply Current
- Available in 8-Pin DIP Package
|
应用
- Thermocouple Cold Junction
- Compensation

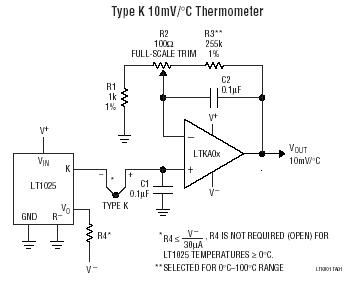

典型应用图
 |
LTK001 订购信息和价格参考Package Variations and Pricing
| 器件型号 |
封装 |
引脚 |
温度 |
价格 (以 1 ~ 99 片为批量) |
价格 (以 1000 片为批量) * |
| LTK001ACN8 |
PDIP |
8 |
C |
$12.60 |
$10.35 |
| LTK001ACN8#PBF |
PDIP |
8 |
C |
$12.60 |
$10.35 |
| LTK001CN8 |
PDIP |
8 |
C |
$6.60 |
$5.50 |
| LTK001CN8#PBF |
PDIP |
8 |
C |
$6.60 |
$5.50 |
LTK001 数据手册及相关资料下载
- 数据手册(英文) : LTK001 - Thermocouple Cold Junction Compensator and Matched Amplifier.PDF
- 设计要点 (英文) : DN302 - Ultraprecise Instrumentation Amplifier Makes Robust Thermocouple Interface.PDF
- 可靠性数据 : R161 Reliability Data .PDF
- 产品选型卡 : Precision High Side Current Sense Amplifiers.PDF
