STC03DE220HV Hybrid emitter switched bipolar transistor ESBT® 2200 V - 3 A - 0.33 ®
The STC03DE220HV is manufactured using a hybrid structure, with dedicated high voltage bipolar and low voltage MOSFET technology, aimed at providing the best performance in an ESBT topology.
The STC03DE220HV is designed for use in an aux. flyback SMPS for any 3-phase application
技术特性
- Low equivalent on resistance
- Very fast-switch, up to 150 kHz
- Very low CISS driven by RG = 4.7 Ω
应用领域
- Aux SMPS for three phase mains
|

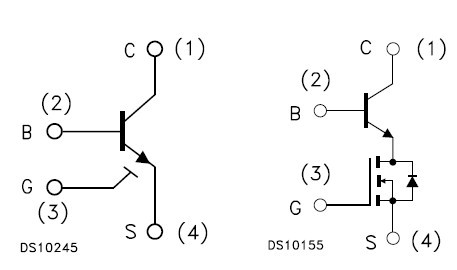

内部原理图
 |
STC03DE220HV 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STC03DE220HV |
NRND |
|
1000 |
TO247-4L HP |
Tube |
|
STC03DE220HV |
DATASHEET
| 描述 |
版本 |
大小 |
| STC03DE220HV :DS4998: Hybrid emitter switched bipolar transistor ESBT® 2200 V - 3 A - 0.33 Ω |
4 |
166KB |
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN2844: 15 W wide range SMPS for metering based on ESBT™ STC03DE220HV and L6565 PWM controller |
1 |
1480KB |
