VN771KP-E Quad smart power solid state relay for complete H-bridge configurations

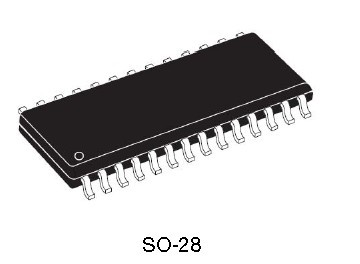

The VN771KP-E is a device formed by three monolithic chips housed in a standard SO-28 package: a double high side and two low side switches. Both the double high side and low side switches are made using STMicroelectronics VIPower™M0-3 Technology.

This device is suitable to drive a DC motor in a bridge configuration as well as to be used as a quad switch for any low voltage application.

The dual high side switches have built-in thermal shutdown to protect the chips from over temperature and current limiter blocks to protect the device from short circuit. Status output is provided to indicate open load in off and on-state and over temperature.

The low side switches are two OMNIFET II types (fully auto protected Power MOSFET in VIPower™technology). They have built-in thermal shutdown, linear current limitation and overvoltage clamping. Fault feedback for thermal intervention can be detected by monitoring the voltage at the input pin

技术特性

ECOPACK®: lead free and RoHS compliant
Automotive Grade: compliance with AEC guidelines
Suited as low voltage bridge
Linear current limitation
Very low standby power dissipation
Short circuit protected
Status flag diagnostic (open drain)
Integrated clamping circuits
Undervoltage protection
ESD protection

管脚定义图

VN771KP-E 功能框图

应用领域

All types of resistive, inductive and capacitive loads
Suitable as LED driver

VN771KP-E 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
VN771KPTR-E	Active		1000	SO-16W	Tape And Reel		VN771KPTR-E
VN771KP-E	Active		1000	SO-16W	Tube		VN771KP-E

DATASHEET

描述	版本	大小
VN771KP-E :DS7247: Quad smart power solid state relay for complete H-bridge configurations	1	945KB
