AD712KRZ-REEL7: Dual Precision, Low Cost, High Speed, BiFET Op Amp
The AD712 is a high speed, precision monolithic operational amplifier offering high performance at very modest prices. Its very low offset voltage and offset voltage drift are the results of advanced laser wafer trimming technology. These performance benefits allow the user to easily upgrade existing designs that use older precision BiFETs and, in many cases, bipolar op amps.
The superior ac and dc performance of this op amp makes it suitable for active filter applications. With a slew rate of 16 V/µs and a settling time of 1 µs to ±0.01%, the AD712 is ideal as a buffer for 12-bit D/A and A/D Converters and as a high-speed integrator. The settling time is unmatched by any similar IC amplifier.
The combination of excellent noise performance and low input current also make the AD712 useful for photo diode preamps. Common-mode rejection of 88 dB and open loop gain of 400 V/mV ensure 12-bit performance even in high-speed unity gain buffer circuits.
The AD712 is pinned out in a standard op amp configuration and is available in seven performance grades. The AD712J and AD712K are rated over the commercial temperature range of 0°C to +70°C. The AD712A, AD712B and AD712C are rated over the industrial temperature range of -40°C to +85°C. The AD712S and AD712T are rated over the military temperature range of -55°C to +125°C and are available processed to MIL-STD- 883B, Rev. C. Extended reliability PLUS screening is available, specified over the commercial and industrial temperature ranges. PLUS screening includes 168-hour burn-in, as well as other environmental and physical tests.
The AD712 is available in an 8-pin plastic mini-DIP, SOIC, cerdip, TO-99 metal can, or in chip form.
AD712KRZ-REEL7 特点
- AC PERFORMANCE Settles to ±0.01% in 1.0 µs 16 V/µs Min Slew Rate (AD712J) 3 MHz Min Unity Gain Bandwidth (AD712J)
- DC PERFORMANCE 0.30 mV Max Offset Voltage: (AD712C) 5 µV/°C max Drift: (AD712C) 200 V/mV min Open-Loop Gain (AD712K) 4 µV p-p Max Noise, 0.1 Hz to 10 Hz (AD712C) Surface Mount Available in Tape and Reel in Accordance with EIA-481A Standard
- Enhanced Replacement for LF412
- MIL-STD-883B Parts Available Single Version Available: AD711 Quad Version: AD713 Available in Plastic Mini-DIP, Plastic SOIC, and Hermetic CERDIP

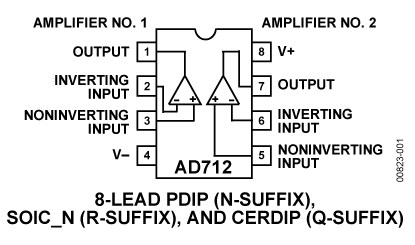

AD712KRZ-REEL7 功能框图
| -3dB Bandwidth | 4MHz | Vcc-Vee Supply (V) | 9 to 36 |
| Slew Rate | 20V/µs | Iq per Amplifier | 2.8mA |
| Vos | 300µV | # OpAmps per Pkg | 2 |
| Ib | 25pA | Operating Temp Range | -40 to +85 |
| Input Noise (nV/rtHz) | 16nV/rtHz | Packages | DIP,SOIC |
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| AD712AQ | 量产 | 8 ld CerDIP | 8 | 工业 |
| AD712JN | 量产 | 8 ld PDIP | 8 | 商业 |
| AD712JNZ | 量产 | 8 ld PDIP | 8 | 商业 |
| AD712JR | 量产 | 8 ld SOIC | 8 | 商业 |
| AD712JR-REEL | 量产 | 8 ld SOIC | 8 | 商业 |
| AD712JR-REEL7 | 量产 | 8 ld SOIC | 8 | 商业 |
| AD712JRZ | 量产 | 8 ld SOIC | 8 | 商业 |
| AD712JRZ-REEL | 量产 | 8 ld SOIC | 8 | 商业 |
| AD712JRZ-REEL7 | 量产 | 8 ld SOIC | 8 | 商业 |
| AD712KN | 量产 | 8 ld PDIP | 8 | 商业 |
| AD712KNZ | 量产 | 8 ld PDIP | 8 | 商业 |
| AD712KR | 量产 | 8 ld SOIC | 8 | 商业 |
| AD712KR-REEL | 量产 | 8 ld SOIC | 8 | 商业 |
| AD712KR-REEL7 | 量产 | 8 ld SOIC | 8 | 商业 |
| AD712KRZ | 量产 | 8 ld SOIC | 8 | 商业 |
| AD712KRZ-REEL | 量产 | 8 ld SOIC | 8 | 商业 |
| AD712KRZ-REEL7 | 量产 | 8 ld SOIC | 8 | 商业 |
| AD712SQ/883B | 量产 | 8 ld CerDIP | 8 | 商业 |
