TMP06:完整的温度监控系统

TMP06: 完整的温度监控系统

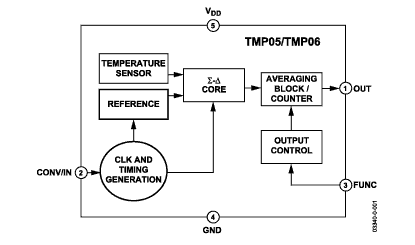

TMP05/TMP06是一种完整的温度监控系统，采用5引脚SOT-23和5引脚SC-70封装。这两款器件为单芯片温度检测器，其产生的调制串行数字输出(PWM)的变化与器件温度成正比例。TMP05/TMP06的数字输出兼容CMOS/TTL，可以与多数常见微处理器的串行输入轻松接口。TMP05具有推挽输出，TMP06则具有开漏输出。TMP05/TMP06的额定工作温度范围为-40℃至+150°C。支持三种工作模式：连续转换、菊花链和单稳态。具体工作模式由一个三态FUNC输入确定。CONV / IN输入引脚用于确定TMP05/TMP06在连续转换和单稳态模式下测量温度的速率。在菊花链模式下，CONV / IN引脚充当菊花链的输入。

The TMP05/TMP06 is a complete temperature monitoring system in 5-Lead SOT-23 and 5-Lead SC-70 packages. The TMP05/TMP06 are monolithic temperature sensors that generate a modulated serial digital output (PWM) that varies in direct proportion to the temperature of the devices.The single digital output of the TMP05/TMP06 is CMOS/TTL compatible, and is easily interfaced to the serial inputs of most popular microprocessors. The TMP05 has a push-pull output while the TMP06 has an open-drain output.The TMP05/TMP06 is rated for operation over the -40°C to +150°C temperature range. There are three mode s of operation. These are Continuously Converting, Daisy Chain and One Shot Mode. A tri-state FUNC input determines which mode the TMP05/TMP06 operates in.The CONV / IN input pin is used to determine the rate with which the TMP05/TMP06 measures temperature in Continuously Converting and in One Shot mode. In Daisy Chain Mode the CONV / IN pin operates as the input to the daisy chain.

TMP06 特点

调制串行数字输出——与温度成比例
25°C时精度为±0.5°C
整个温度范围为±3°C
功耗：待定 mW（最大值，5.5 V）
工作电压范围：2.7 V至5.5 V
灵活的开漏输出（TMP05 配有CMOS/TTL兼容输出）
小型低成本5引脚SC-70和SOT-23封装

TMP06 技术指标

Output Type: Digital
Sensor Output: PWM
Temp Res(°C/LSB): 0.025°C/LSB
Supply Voltage Range: +2.7V to +5.5V
Temp Range(s): -40 to +150

TMP06 芯片订购指南

产品型号	封装	引脚	温度范围	包装和数量	报价*(100-499)	报价*1000 pcs
TMP06AKSZ-500RL7 产品状态: 量产	5 ld SC70	5	工业	Reel, 500	-	$ 0.66
TMP06AKSZ-REEL 产品状态: 量产	5 ld SC70	5	工业	Reel, 10000	-	$ 0.70
TMP06ART-500RL7 产品状态: 联络BDTIC	5 ld SOT-23	5	工业	Reel, 500	-	-
TMP06ART-REEL7 产品状态: 联络BDTIC	5 ld SOT-23	5	工业	Reel, 3000	-	-
TMP06ARTZ-500RL7 产品状态: 量产	5 ld SOT-23	5	工业	Reel, 500	-	$ 0.66
TMP06BKSZ-500RL7 产品状态: 量产	5 ld SC70	5	工业	Reel, 500	-	$ 0.96
TMP06BRT-500RL7 产品状态: 联络BDTIC	5 ld SOT-23	5	工业	Reel, 500	-	-
TMP06BRTZ-500RL7 产品状态: 量产	5 ld SOT-23	5	工业	Reel, 500	-	$ 0.96
