SP6200 微功耗 100mA CMOS LDO 调节器
The SP6200 is a 100mA CMOS linear voltage regulator offered in an SC-70 package that reduces board space requirements by 50% over a SOT-23 package. The SP6200/4 features low dropout voltage (250mV at 100mA ), low ground current (135μA at full load) and low, 65μA quiescent current. Designed specifically for hand-held, battery powered devices, the device includes an enable/shutdown pin. Regulator ground current increases only slightly in dropout to extend battery life. The SP6200/4 is offered in an industry standard 5-pin SC-70 package. SP6200/4 is available in 1.8V, 2.5V, 2.7V, 2.85V, 3.0V, 3.3V and 5.0V fixed output voltages.
技术特性
- 低压差：160mV@100mA
- 高输出电压精确度：2%
- 极低的关断电流：最大为1uA
- 极低的GND电流：
- 200uA@200mA负载
- 28uA@100uA负载
- 极好的负载和线性调节
- 电流和发热限制
- 复位输出(VOUT良好)；
- 逻辑控制的电子使能
- 1uF的陶瓷电容可保持器件无条件稳定工作
- 固定的输出:
- 1.5V, 1.8V, 2.5V, 2.7V, 2.85V, 3.0V, 3.3V, 3.5V, 5V
- 输出电压可调节e
- 小型DFN封装(2mm×3mm)或SOT23-5
- 欲订购无铅包装，请在型号后加“-L”
- 欲订购无卤素绿色包装，请在型号后加“-G”
技术指标
| 输出电流(mA) |
100 |
| 最低输入电压(V) |
2.5 |
| 最高输入电压(V) |
7 |
| 静态电流(µA) |
28 |
| 精确性 |
2% |
| 漏失电压 |
160 |
| 输出电压1.2V |
True |
| 输出电压1.5V |
是 |
| 输出电压1.8V |
是 |
| 输出电压2.0V |
否 |
| 输出电压2.5V |
是 |
| 输出电压2.7V |
是 |
| 输出电压2.85V |
是 |
| 输出电压2.8V |
否 |
| 输出电压3.0V |
是 |
| 输出电压3.3V |
是 |
| 输出电压3.5V |
否 |
| 输出电压5.0V |
是 |
| 输出电压可调 |
是 |
应用领域 APPLICATION
- Digital Cordless Phones
- Cellular Phones
- PDAs
- Digital Still Cameras
- MP3 Players
- Battery-Powered Equipment
- Medical Devices
- Data Cable

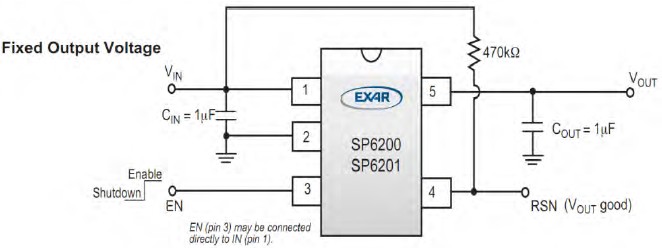

功能框图 Functional Block Diagram
|
订购信息 Ordering Information
| 器件型号 |
有害物质限制 |
最低温度 |
最高温度 |
状态 |
立刻购买 |
申请样片 |
| SP6200ER-3-0 |
|
|
|
返修 |
|
|
| SP6200ER-3-0/TR |
|
|
|
返修 |
|
|
| SP6200ER-2-85/TR |
|
|
|
返修 |
|
|
| SP6200ER-2-7/TR |
|
|
|
返修 |
|
|
| SP6200ER-2-85 |
|
|
|
返修 |
|
|
| SP6200ER-3-5/TR |
|
|
|
返修 |
|
|
| SP6200ER-5-0 |
|
|
|
返修 |
|
|
| SP6200ER-3-5 |
|
|
|
返修 |
|
|
| SP6200ER-3-3 |
|
|
|
返修 |
|
|
| SP6200ER-3-3/TR |
|
|
|
返修 |
|
|
| SP6200ER-1-5 |
|
-40 |
125 |
返修 |
|
|
| SP6200ER-1-5/TR |
|
|
|
返修 |
|
|
| SP6200ER/TR |
|
|
|
返修 |
|
|
| SP6200EM5-L-5-0/TR |
|
-40 |
125 |
OBS |
|
|
| SP6200ER |
|
|
|
返修 |
|
|
| SP6200ER-2-5/TR |
|
|
|
返修 |
|
|
| SP6200ER-2-7 |
|
|
|
返修 |
|
|
| SP6200ER-2-5 |
|
|
|
返修 |
|
|
| SP6200ER-1-8 |
|
|
|
返修 |
|
|
| SP6200ER-1-8/TR |
|
|
|
返修 |
|
|
| SP6200ER-5-0/TR |
|
|
|
返修 |
|
|
| SP6200ER-L-3-0/TR |
|
|
|
返修 |
|
|
| SP6200ER-L-3-3 |
|
-40 |
125 |
EOL |
Upgrade: SP6260 / SP6201 |
|
| SP6200ER-L-3-0 |
|
|
|
返修 |
|
|
| SP6200ER-L-2-85 |
|
|
|
返修 |
|
|
| SP6200ER-L-2-85/TR |
|
|
|
返修 |
|
|
| SP6200ER-L-5-0 |
|
|
|
返修 |
|
|
| SP6200ER-L-5-0/TR |
|
|
|
返修 |
|
|
| SP6200ER-L-3-5/TR |
|
|
|
返修 |
|
|
| SP6200ER-L-3-3/TR |
|
-40 |
125 |
EOL |
Upgrade: SP6260 / SP6201 |
|
| SP6200ER-L-3-5 |
|
|
|
返修 |
|
|
| SP6200ER-L-1-5/TR |
|
|
|
返修 |
|
|
| SP6200ER-L-1-8 |
|
|
|
返修 |
|
|
| SP6200ER-L-1-5 |
|
|
|
返修 |
|
|
| SP6200ER-L |
|
-40 |
125 |
返修 |
|
|
| SP6200ER-L/TR |
|
|
|
返修 |
|
|
| SP6200ER-L-2-7 |
|
|
|
返修 |
|
|
| SP6200ER-L-2-7/TR |
|
|
|
返修 |
|
|
| SP6200ER-L-2-5/TR |
|
|
|
返修 |
|
|
| SP6200ER-L-1-8/TR |
|
|
|
返修 |
|
|
| SP6200ER-L-2-5 |
|
|
|
返修 |
|
|
| SP6200EM5-1-8 |
|
-40 |
125 |
OBS |
|
|
| SP6200EM5-1-8/TR |
|
|
|
OBS |
|
|
| SP6200EM5-2-5 |
|
|
|
OBS |
|
|
| SP6200EM5-2-5/TR |
|
-40 |
125 |
OBS |
|
|
| SP6200EK |
|
-40 |
125 |
OBS |
|
|
| SP6200EK/TR |
|
-40 |
125 |
OBS |
|
|
| SP6200EM5-2-7/TR |
|
|
|
在售 |
|
|
| SP6200EM5-3-5 |
|
|
|
运行 |
|
|
| SP6200EM5-2-7 |
|
|
|
OBS |
|
|
| SP6200EM5-2-85 |
|
|
|
OBS |
|
|
| SP6200EM5-2-85/TR |
|
|
|
OBS |
|
|
| SP6200EM5 |
|
|
|
返修 |
|
|
| SP6200EM5-3-0 |
|
-40 |
125 |
OBS |
|
|
| SP6200EM5-3-0/TR |
|
-40 |
125 |
OBS |
|
|
| SP6200EM5-1-5/TR |
|
|
|
运行 |
|
|
| SP6200EM5-3-3 |
|
|
|
OBS |
|
|
| SP6200EM5/TR |
|
|
|
返修 |
|
|
| SP6200EM5-3-3/TR |
|
-40 |
125 |
OBS |
|
|
| SP6200EM5-3-5/TR |
|
-40 |
125 |
OBS |
|
|
| SP6200EM5-1-5 |
|
-40 |
125 |
在售 |
|
|
| SP6200EM5-5-0 |
|
-40 |
125 |
运行 |
|
|
| SP6200EM5-L-3-0/TR |
|
-40 |
125 |
运行 |
|
|
| SP6200EM5-L-1-8 |
|
-40 |
125 |
EOL |
Upgrade: SP6260 / SP6201 |
|
| SP6200EM5-L-3-0 |
|
-40 |
125 |
运行 |
|
|
| SP6200EM5-L-2-85 |
|
-40 |
125 |
运行 |
|
|
| SP6200EM5-L-2-85/TR |
|
|
|
运行 |
|
|
| SP6200EM5-L-3-5 |
|
|
|
运行 |
|
|
| SP6200EM5-L-3-5/TR |
|
|
|
运行 |
|
|
| SP6200EM5-L-5-0 |
|
-40 |
125 |
运行 |
|
|
| SP6200EM5-L-3-3 |
|
-40 |
125 |
运行 |
|
|
| SP6200EM5-L-1-8/TR |
|
-40 |
125 |
EOL |
Upgrade: SP6260 / SP6201 |
|
| SP6200EM5-L-3-3/TR |
|
-40 |
125 |
运行 |
|
|
| SP6200EM5-L/TR |
|
-40 |
125 |
运行 |
|
|
| SP6200EM5-L-1-5 |
|
-40 |
125 |
运行 |
|
|
| SP6200EM5-5-0/TR |
|
-40 |
125 |
运行 |
|
|
| SP6200EM5-L |
|
-40 |
125 |
返修 |
|
|
| SP6200EM5-L-1-5/TR |
|
|
|
运行 |
|
|
| SP6200EM5-L-2-7 |
|
|
|
OBS |
|
|
| SP6200EM5-L-2-7/TR |
|
|
|
运行 |
|
|
| SP6200EM5-L-2-5 |
|
-40 |
125 |
运行 |
|
|
| SP6200EM5-L-2-5/TR |
|
|
|
运行 |
|
