SP6641 500mA Alkaline（数据通信-磁盘控制）DC/DC放大调节器
The SP6641 is an ultra-low quiescent current, high efficiency, DC-DC boost converter designed for single and dual cell alkaline, or Li-ion battery applications found in PDA’s, MP3 players, and other handheld portable devices. The SP6641 features a 10μA quiescent current, a 0.3Ω Nchannel charging switch, 0.9V input startup, and a 0.33A or 1.0A inductor current limiting feature. The SP6641 is offered in a 5 pin SOT-23 package and provides an extremely small power supply footprint optimized for portable applications. The SP6641 is preset to 3.3V and can be controlled by a 1nA active LOW shutdown pin.
技术特性
- Ultra Low Quiescent Current: 10uA
- Wide Input Voltage Range: 0.9V to 4.5V
- 90mA IOUT at 1.3V Input (SP6641A-3.3V)
- 100mA IOUT at 2.0V Input (SP6641A-5.0V)
- Current Limit Protection
- Thermal Shutdown Protection with Hysteresis
- Auxiliary Supply Control
- Internal 0.3Ω NFET Switch Eliminates External FETs
- Kelvin Connection with 3.3V Feedback
应用领域 APPLICATION
- PDA's
- DSC's
- CD/MP3 Players
- Pagers
- Digital Cameras
- Portable Handheld Medical Devices

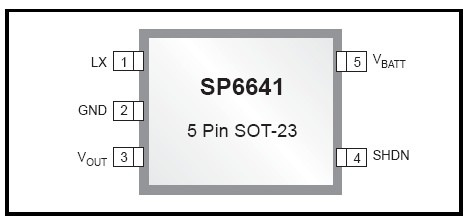

功能框图 Functional Block Diagram
|
技术指标
| 输出电流(mA) |
100 |
| 最低输入电压(V) |
0.9 |
| 最高输入电压(V) |
4.5 |
| 静态电流(µA) |
10 |
| 最低输出电压(V) |
3.3 |
| 最高输出电压(V) |
5 |
| 效率(%) |
87 |
| 说明书 |
固定的 3.3V, 5.0V电压 |
